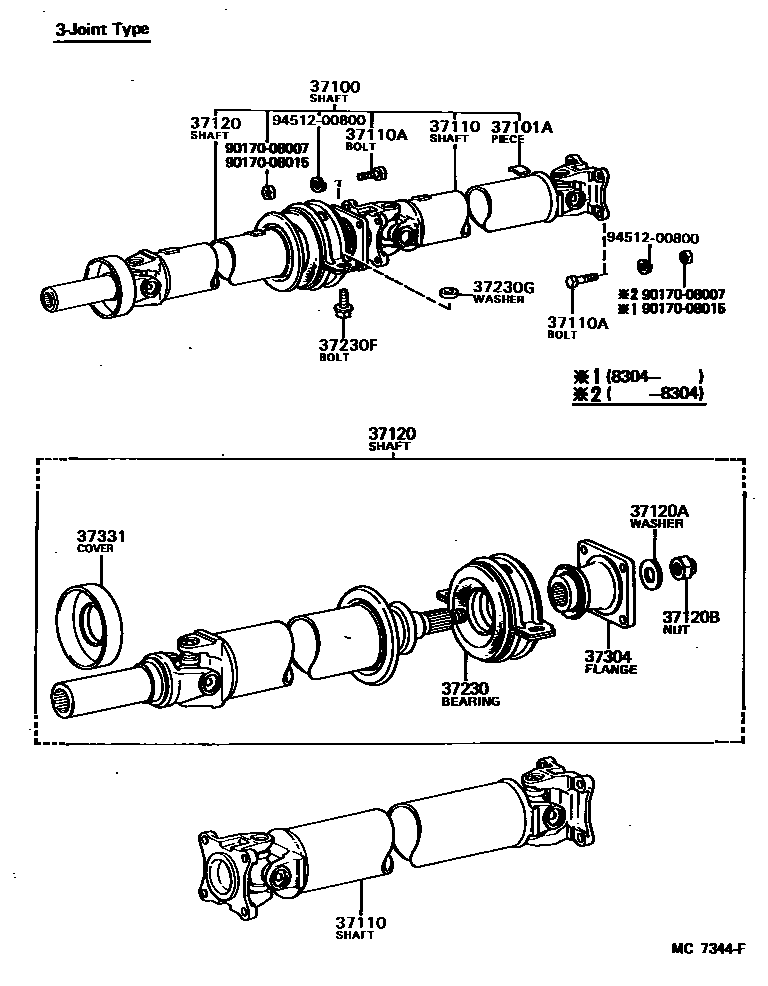

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0002 1 0003 1

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-22200iTX62198107-198504

main37100-22210iGX60,RX6#..(3FC,3H,4F,4H,5F)..(GEN,ME,SA,SAA)198009-198504

main37100-22220iRX60..SED..4FC..SA;RX60..4FC..(GEN,ME)198107-198504

main37100-22230iGX60,LX60..4FC198009-198504

main37100-22250iRX60..EUR198009-198407

main37100-22290iGX61..5F198208-198305

sub37100-22291

main37100-22291iGX61..5F198305-198407

sub37100-22301

main37100-22310iGX61..4FC198208-198305

sub37100-22311

main37100-22311iGX61,MX63..4FC198305-198504

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132iGX6#,LX60,MX6#,RX6#,TX62198009-198504

10G,L=20.7,10G

main90937-01136iGX6#,LX60,MX6#,RX6#,TX62198009-198504

20G,L=41.4,20G

main90937-01140iGX6#,LX60,MX6#,RX6#,TX62198009-198504

30G,L=62.2,30G

main90937-01147iGX6#,LX60,MX6#,RX6#,TX62198009-198504

2G,T=2.0,2G

main90937-01148iGX6#,LX60,MX6#,RX6#,TX62198009-198504

4G,T=2.0,4G

main90937-01149iGX6#,LX60,MX6#,RX6#,TX62198009-198504

6G,L=12.4,6G

main90937-01150iGX6#,LX60,MX6#,RX6#,TX62198009-198504

8G,L=16.6,8G

main90937-01151iGX6#,LX60,MX6#,RX6#,TX62198009-198504

12G,L=24.9,12G

main90937-01152iGX6#,LX60,MX6#,RX6#,TX62198009-198504

14G,L=29.0,14G

main90937-01153iGX6#,LX60,MX6#,RX6#,TX62198009-198504

16G,L=33.2,16G

main90937-01154iGX6#,LX60,MX6#,RX6#,TX62198009-198504

18G,L=37.3,18G

main90937-01155iGX6#,LX60,MX6#,RX6#,TX62198009-198504

22G,L=45.6,22G

main90937-01156iGX6#,LX60,MX6#,RX6#,TX62198009-198504

24G,L=49.7,24G

main90937-01157iGX6#,LX60,MX6#,RX6#,TX62198009-198504

26G,L=53.9,26G

main90937-01158iGX6#,LX60,MX6#,RX6#,TX62198009-198504

28G,L=58.1,28G

37110SHAFT ASSY, PROPELLER

main37110-12330iRX60..SED..4FC..SA;RX60..4FC..(GEN,ME);GX60,LX60,RX62,TX62;RX60..3FC,3H,4F,4H,5F198009-198504

main37110-12410iGX61,MX63198208-198504

main37110-14110iMX62198009-198407

sub37110-14111

37110ABOLT (FOR PROPELLER SHAFT)

main90101-08062iGX6#,LX60,MX62,RX6#,TX62198102-198304

13G

main90101-08082iGX6#,LX60,MX6#,RX60,TX62198304-198504

*8-1.25PX25-12,13G

main90101-08085iGX61,LX60,RX60..EUR198009-198306

15G,YELLOW

main90101-08086iGX61,LX60,RX60..EUR198009-198306

17G,YELLOW

main90101-08087iGX61,LX60,RX60..EUR198009-198306

19G,YELLOW

main90101-08088iGX61,LX60,RX60..EUR198306-198407

15G,BLACK

main90101-08090iGX61,LX60,RX60..EUR198306-198407

17G,BLACK

main90101-08091iGX61,LX60,RX60..EUR198306-198407

19G,BLACK

main90101-08214iLX60,MX62,RX60198009-198102

*8-1.25PX25-12

sub90101-08262

37120SHAFT ASSY, PROPELLER INTERMEDIATE

main37120-22120iTX62198107-198504

main37120-22130iRX6#..(3FC,3H,4F,4H,5F)..(GEN,ME,SA,SAA)198009-198504

main37120-22140iRX60..SED..4FC..SA;RX60..4FC..(GEN,ME)198107-198504

main37120-22150iGX6#,LX60..4FC198009-198504

main37120-22160iRX60..EUR198009-198407

main37120-22190iGX61..5F198305-198407

sub37120-22181

main37120-22200iGX61,MX63..4FC198305-198504

37120AWASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)

main90201-18182iRX60..SED..4FC..SA;RX60..4FC..(GEN,ME);RX60..3FC,3H,4F,4H,5F;GX6#,LX60,MX63,RX62,TX62198009-198504

OD=33.5,T=4.0,T=4,OD=33.5

main90201-26005iRX60..5F..SA;RX60..EUR,GEN,ME;RX60..SED..4FC..SA;GX6#,LX60,MX63,TX62198402-198504

OD=36.6,T=0.8,T=0.8,OD=36.6

37120BNUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)

main90179-18009iRX60..5F..SA;RX60..EUR,GEN,ME;RX60..SED..4FC..SA;GX6#,LX60,MX63,TX62198402-198504

main90179-18060iRX60..SED..4FC..SA;RX60..4FC..(GEN,ME);RX60..3FC,3H,4F,4H,5F;GX6#,LX60,MX63,RX62,TX62198009-198402

sub90179-18001

37230BEARING ASSY, CENTER SUPPORT, NO.1

main37230-22042iRX60..SED..4FC..SA;RX60..4FC..(GEN,ME);GX6#,LX60,RX62,TX62;RX60..(3FC,3H,4F,4H,5F)..(GEN,ME,SA,SAA)198009-198504

main37230-22070iRX60..EUR198009-198407

main37230-22080iGX61,MX63198305-198504

37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)

main90119-10046iRX60..SED..4FC..SA;RX60..4FC..(GEN,ME);RX60..3FC,3H,4F,4H,5F;GX6#,LX60,MX63,RX62,TX62198009-198504

37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)

main90201-10008iRX60..SED..4FC..SA;RX60..4FC..(GEN,ME);GX60,LX60,RX62,TX62;RX60..(3FC,3H,4F,4H,5F)..(GEN,ME,SA,SAA)198009-198504

T=4.5,T=4.5

main90201-10017iRX60..SED..4FC..SA;RX60..4FC..(GEN,ME);GX60,LX60,RX62,TX62;RX60..(3FC,3H,4F,4H,5F)..(GEN,ME,SA,SAA)198009-198504

T=9.0,T=9.0

main90201-10033iRX60..SED..4FC..SA;RX60..4FC..(GEN,ME);GX60,LX60,RX62,TX62;RX60..(3FC,3H,4F,4H,5F)..(GEN,ME,SA,SAA)198009-198504

T=6.5,T=6.5

main90201-10034iRX60..SED..4FC..SA;RX60..4FC..(GEN,ME);GX60,LX60,RX62,TX62;RX60..(3FC,3H,4F,4H,5F)..(GEN,ME,SA,SAA)198009-198504

T=11.0,T=11.0

main90201-10035iRX60..SED..4FC..SA;RX60..4FC..(GEN,ME);GX60,LX60,MX63,RX62,TX62;RX60..(3FC,3H,4F,4H,5F)..(GEN,ME,SA,SAA)198009-198504

T=13.5,T=13.5

37304FLANGE SUB-ASSY, UNIVERSAL JOINT

main37304-22012iRX60..SED..4FC..SA;RX60..4FC..(GEN,ME);RX60..3FC,3H,4F,4H,5F;GX6#,LX60,MX63,RX62,TX62198009-198504

sub37304-22H00

main37304-22013iRX60..5F..SA;RX60..EUR,GEN,ME;RX60..SED..4FC..SA;GX6#,LX60,MX63,TX62198402-198504

sub37304-28010

37331COVER, SLIDING SHAFT DUST

main37331-30010iGX6#,LX60,MX6#,RX6#,TX62198009-198504

9017008007

main90170-08007

9017008015

main90170-08015

9451200800

main94512-00800
