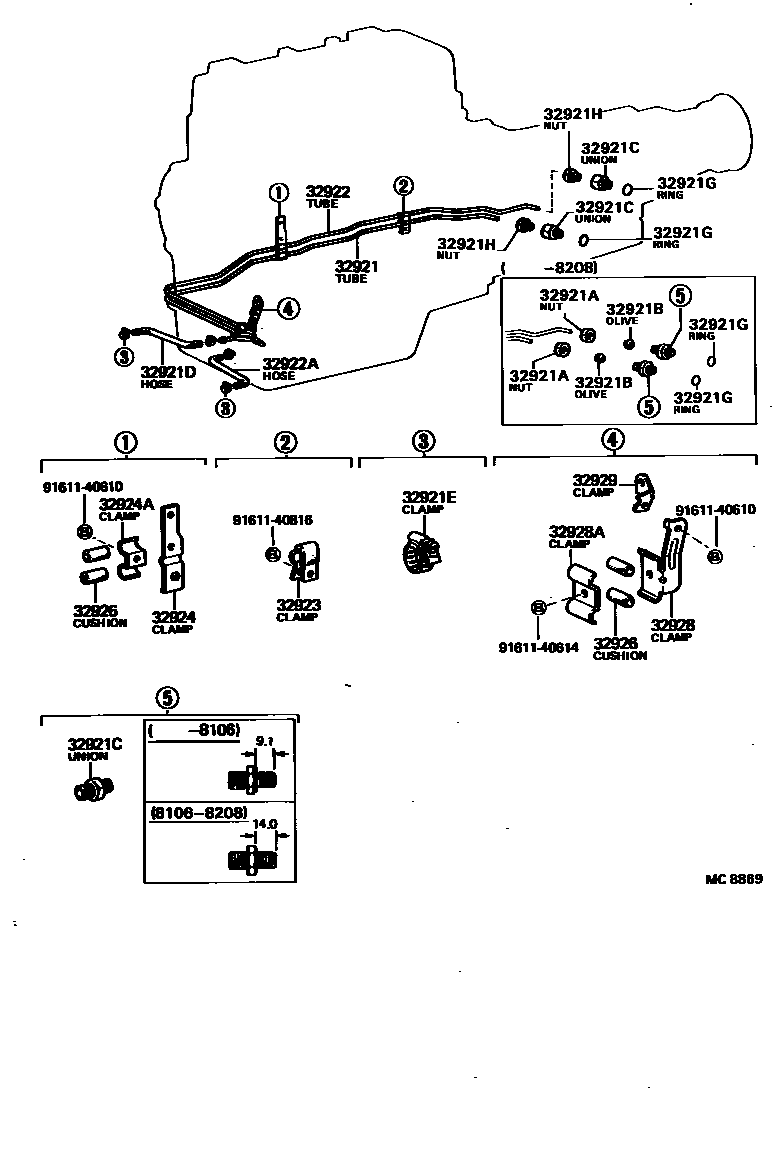

OIL COOLER & TUBE (ATM)

0001 1 0002 1 0003 1 0005 1 0007 1 0008 1 0009 1 0010 1

32921TUBE, OIL COOLER INLET, NO.1

main32921-22031iRX62..3FC¥1,420198107-198208

main32921-22070iTX62..3FC198107-198208

main32921-22120iLX60..4FC198009-198208

main32921-22150iRX60..3FC¥1,880198009-198112

main32921-22151iRX60..3FC¥1,880198112-198208

main32921-22160iRX60..4FC198107-198202

main32921-22161iRX60..4FC198202-198208

main32921-22180iMX62¥1,880198009-198208

main32921-22210iGX6#..4FC¥2,360198301-198504

sub32921-22211¥1,900

main32921-22220iRX60..3FC198211-198407

main32921-22230iTX62..3FC198209-198504

main32921-22250iRX60..4FC¥2,470198208-198504

main32921-22270iGX6#..4FC¥2,350198208-198301

sub32921-22210¥2,360

main32921-22280iMX6#¥2,100198208-198504

main32921-22290iLX60..4FC¥2,360198208-198407

32921ANUT, UNION(FOR OIL COOLER TUBE)

main90402-13041iLX60,MX62,RX6#,TX62..ATM¥210198009-198208

32921BOLIVE(FOR OIL COOLER TUBE)

main96395-71400iLX60,MX62,RX6#,TX62..ATM¥210198009-198208

32921CUNION(FOR OIL COOLER TUBE)

main90404-13003iRX60..3FC¥540198106-198208

FR

main90404-13003iRX6#,TX62..3FC¥540198106-198112

main90404-13265iRX60..3FC¥1,620198009-198106

FR

main90404-14007iTX62..3FC¥500198209-198504

RR

main90404-14007iGX6#,LX60,MX6#,RX60,TX62..ATM¥500198208-198504

FR

main90407-13002iLX60,MX62..4FC¥1,890198009-198106

RR

main90407-13005iRX6#..3FC¥1,900198106-198208

RR

main90407-14003iGX6#,LX60,MX6#,RX60..ATM¥1,720198208-198504

RR

32921DHOSE(FOR OIL COOLER INLET)

main32941-22010iGX6#..4FC¥1,060198208-198504

main32941-22020iLX60..4FC¥1,880198009-198407

main32941-30020iRX60..ATM¥2,100198009-198504

main90445-14025iRX62..3FC¥1,360198107-198208

sub90445-14514¥3,240

main90445-14259iMX6#,TX62..ATM¥670198009-198504

32921ECLAMP, HOSE(FOR OIL COOLER)

main90460-14085iGX6#,LX60,MX6#,RX6#,TX62..ATM¥590198009-198504

sub90460-20004¥240

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iGX6#,LX60,MX6#,RX6#,TX62..ATM¥170198009-198504

32921HNUT, FLARE(FOR OIL COOLER TUBE)

main90402-14004iGX6#,LX60,MX6#,RX60,TX62..ATM¥260198208-198504

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-22090iTX62..3FC198107-198208

main32922-22131iLX60..4FC198009-198208

main32922-22150iGX6#..4FC¥2,360198302-198504

main32922-22160iRX60..3FC198211-198407

main32922-22180iRX60..3FC198009-198112

main32922-22181iRX60..3FC198112-198208

main32922-22191iRX60..4FC198107-198202

main32922-22192iRX60..4FC198202-198208

main32922-22220iMX62¥2,030198009-198208

main32922-22260iTX62..3FC198209-198504

main32922-22280iRX60..4FC¥2,460198208-198504

main32922-22300iGX6#..4FC198208-198302

sub32922-22150¥2,360

sub32942-22030¥1,280

main32922-22310iMX6#¥2,360198208-198504

main32922-22320iLX60..4FC198208-198407

main32922-35030iRX62..3FC¥1,430198107-198208

32922AHOSE(FOR OIL COOLER OUTLET)

main32941-22010iGX6#..4FC¥1,060198208-198302

L=230

main32941-22020iLX60..4FC¥1,880198101-198407

main32941-30020iRX60..ATM¥2,100198208-198504

main32942-22030iMX6#¥1,280198012-198504

main32942-22030iGX6#..4FC¥1,280198302-198504

L=180

main90445-14025iRX6#..ATM¥1,360198009-198208

sub90445-14514¥3,240

main90445-14274iTX62..3FC¥1,330198107-198504

sub90445-14514¥3,240

main90445-14407iMX62¥540198009-198012

main90445-14526iLX60..4FC¥930198009-198101

sub90445-14514¥3,240

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-14010iMX6#198009-198504

main32923-20022iRX62..3FC¥330198107-198208

main32923-22020iRX60..ATM¥670198009-198504

HOUSING FR

main32923-22030iRX60..ATM¥740198112-198504

HOUSING RR

main32923-30080iGX6#..4FC¥320198208-198504

main32923-30090iLX60..4FC¥680198009-198407

main90461-08039iTX62..3FC¥250198107-198504

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-14010iTX62..3FC198107-198504

main32924-22040iMX6#¥1,390198009-198504

main32924-22050iLX60..4FC198208-198407

main32924-22060iGX6#..4FC¥750198208-198307

sub32924-22061¥740

main32924-22061iGX6#..4FC¥740198307-198504

main32924-30090iLX60..4FC¥740198009-198208

32924ACLAMP(FOR OIL COOLER TUBE, NO.2)

main32929-30060iMX6#¥540198009-198504

main90462-12085iGX6#,LX60,TX62..ATM¥220198009-198504

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-22010iMX6#¥230198208-198504

L=35,ID=8

main32926-30011iGX6#,LX60,RX60,TX62..ATM¥200198009-198504

L=25,ID=8

32928CLAMP, FLEXIBLE HOSE, NO.1

main15781-41010iMX6#¥930198009-198504

main32928-20050iRX62..3FC198107-198208

main32928-20070iRX60..ATM¥740198009-198504

main32928-22011iTX62..3FC198107-198504

main32928-22030iLX60..4FC198009-198208

main32928-24010iGX6#..4FC¥1,060198208-198504

main32928-30060iLX60..4FC¥740198208-198407

32928ACLAMP(FOR FLEXIBLE HOSE CLAMP)

main32928-30050iLX60..4FC¥310198009-198407

main90461-08049iRX62..3FC¥230198107-198208

main90462-10019iMX6#198009-198504

main90462-12085iGX6#,RX60,TX62..ATM¥220198009-198504

32929CLAMP, FLEXIBLE HOSE, NO.2

main32929-20030iRX62..3FC198107-198208

main32929-20070iRX60..ATM¥670198009-198504

main32929-22010iTX62..3FC198107-198504

main32929-30050iLX60..4FC¥740198009-198407

9161140610

main91611-40610¥140

9161140614

main91611-40614¥180

9161140816

main91611-40816¥140

20 parts on this diagram · 8 diagrams in section
