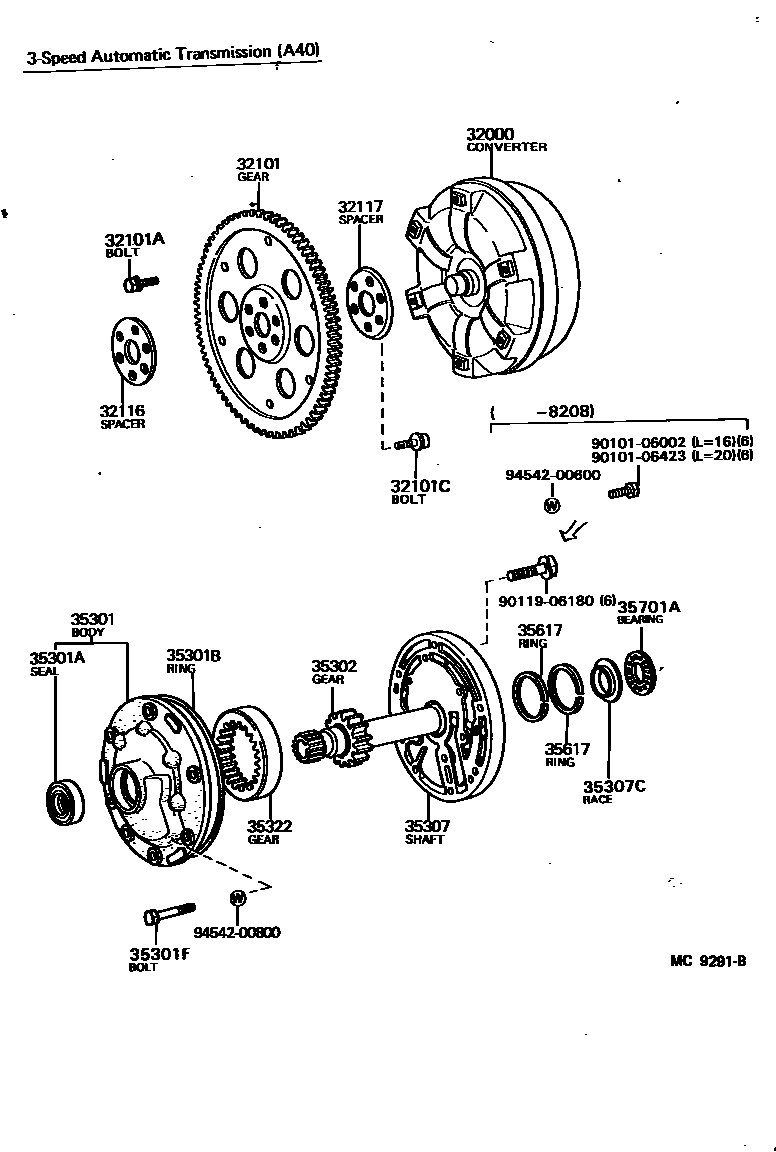

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1 0002 1

32000CONVERTER ASSY, TORQUE

main32000-14040iTX62..3FC198107-198504

sub32000-14041

main32000-14070iMX63198312-198504

sub32000-14071

main32000-14090iLX60,RX60..4FC198107-198406

sub32000-14091

main32000-14091iLX60,RX60..4FC198406-198504

main32000-22020iRX6#..3FC198009-198407

sub32000-22021

main32000-22040iMX62198009-198107

sub32000-30100

main32000-24010iGX6#..4FC198208-198504

sub32000-24011

main32000-30090iLX60..4FC198009-198107

sub32000-14090

main32000-30100iMX62198107-198406

sub32000-30101

main32000-30101iMX62198406-198407

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-14030iGX6#,TX62..ATM198107-198311

sub32101-22030

main32101-20050iRX60..ATM198009-198504

main32101-22020iRX62..3FC198107-198208

main32101-22030iGX6#,TX62..ATM198311-198504

sub32101-22031

main32101-30040iMX6#198009-198407

sub32101-30060

main32101-30051iLX60..4FC198009-198407

main32101-30060iMX63198408-198504

sub32101-30061

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08090iGX6#,LX60,MX62,RX60,TX62..ATM198212-198504

L=10.5,WHITE

main90109-08107iGX6#,LX60,MX6#,RX60,TX62..ATM198304-198504

*8-1.25PX12-8.4,L=12,OLIVE GREEN

main90119-08223iGX6#,MX62,RX60,TX62..ATM198110-198212

*8-1.25PX10.5-6.5

main90119-08223iGX6#,MX6#,RX60,TX62..ATM198212-198504

*8-1.25PX10.5-6.5,YELLOW

main91611-60812iLX60,MX62,RX6#,TX62..ATM198009-198407

*8-1.25PX12-7

sub91611-B0812

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10006iRX62,TX62..3FC198107-198108

*10-1.25X23-14.5

main90105-10046iGX6#,RX62,TX62..ATM198108-198504

*10-1.25PX23-15.5

main90105-12014iLX60..4FC198009-198407

main90109-10037iMX6#198009-198504

*10-1.25PX18-12

main90913-01011iRX60..ATM198009-198504

*17-1.25PX26-18

32116SPACER, DRIVE PLATE, FRONT

main32116-14011iGX6#,TX62..ATM198107-198504

main32116-20011iRX60..ATM198009-198504

main32116-22011iRX62..3FC198107-198208

main32116-30011iMX6#198009-198504

main32116-30020iLX60..4FC198009-198407

32117SPACER, DRIVE PLATE, REAR

main32117-14011iGX6#,TX62..ATM198107-198504

main32117-20021iRX60..ATM198009-198504

main32117-22011iRX62..3FC198107-198208

main32117-30011iMX6#198009-198504

main32117-30020iLX60..4FC198009-198407

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-14010iGX6#,MX63..4FC198208-198504

main35301-22012iRX60..3FC198009-198010

sub35301-30030

sub90101-06002

sub90101-08046

main35301-30030iLX60,MX62,RX6#,TX62..ATM198009-198504

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iGX6#,LX60,MX6#,RX60,TX62..ATM198312-198504

main90311-38129iGX6#,LX60,MX62,RX6#,TX62..ATM198009-198312

sub90311-38020

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99010iGX6#,LX60,MX6#,RX6#,TX62..ATM198009-198504

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90101-08042iLX60,MX6#..4FC198009-198504

sub90105-08137

main90101-08046iRX6#,TX62..3FC198108-198504

L=40

sub90105-08128

main90101-08431iRX60..4FC198009-198208

sub90105-08136

main90109-08075iRX6#,TX62..3FC198009-198108

L=45

sub90109-08073

35302GEAR SUB-ASSY, FRONT OIL PUMP DRIVE

main35321-14010iGX6#,MX63..4FC198208-198504

sub35321-22020

sub35321-22030

sub35321-22040

sub35321-22050

sub35321-22060

main35321-22010iLX60,MX62,RX6#,TX62..ATM198009-198504

sub35321-22090

35307SHAFT SUB-ASSY, STATOR

main35370-14011iGX6#,MX63..4FC198208-198504

sub35370-14012

main35370-22010iRX6#,TX62..3FC198009-198108

main35370-22011iRX6#,TX62..3FC198108-198504

sub35370-22012

main35370-22030iLX60,RX60..4FC198108-198504

sub35370-22031

main35370-30010iLX60,RX60..4FC198009-198108

sub35370-30012

main35370-30020iMX62198009-198108

main35370-30021iMX62198108-198110

main35370-30022iMX62198110-198407

sub35370-30023

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-22010iLX60,RX6#,TX62..ATM198009-198504

T=4.3

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-14010iGX6#,MX63..4FC198208-198504

T=17.286-17.235

sub35322-22020

sub35322-22030

sub35322-22040

sub35322-22050

sub35322-22060

main35322-22010iLX60,MX62,RX6#,TX62..ATM198009-198504

T=15.286-15.235

sub35322-22090

35617RING, CLUTCH DRUM OIL SEAL

main35617-16010iGX6#,LX60,MX6#,RX60..4FC198108-198504

main35617-22010iRX6#,TX62..3FC198009-198108

main35617-22011iRX6#,TX62..3FC198108-198504

sub35617-32010

main35617-22020iLX60,MX62,RX60..4FC198009-198108

35701ABEARING, THRUST (FOR INPUT SHAFT FRONT)

main90374-23012iLX60,MX62,RX6#,TX62..ATM198009-198504

main90374-25003iGX6#,MX6#..4FC198110-198504

9010106002

main90101-06002

9010106423

main90101-06423

9011906180

main90119-06180

9454200600

main94542-00600

9454200800

main94542-00800
