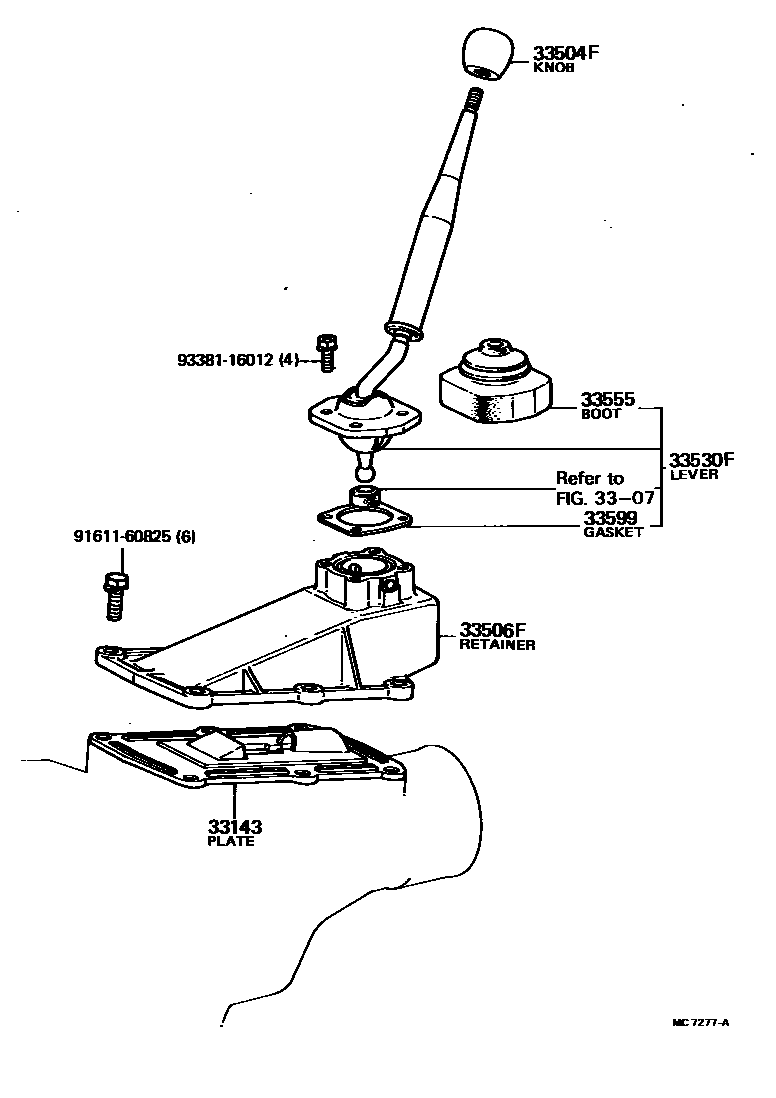

SHIFT LEVER & RETAINER

0001 1 0002 1

3307

33143PLATE, EXTENSION HOUSING OIL BAFFLE

main33143-22020iGX6#,LX60,RX6#,TX62..4F,5F198009-198504

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-14060-01iRX60..4F198108-198407

BLACK,BLACK,TRIM2#

sub33504-14060

sub33504-14040

main33504-14060-04iRX60..4F198108-198201

BLUE,BLUE,TRIM8#

sub33504-14060

sub33504-14040

main33504-14060-06iRX60..4F198108-198407

DARK BROWN,BROWN,TRIM0#,4#

sub33504-14060

sub33504-14040

main33504-14060-14iRX60..4F198201-198407

BLUE,BLUE,TRIM8#

sub33504-14060

sub33504-14040

main33504-20052-01iLX60,RX6#..5F198009-198108

URETHANE,BLACK,BLACK,TRIM2#

sub33504-20052

sub33504-14050

main33504-20052-04iLX60,RX6#..5F198009-198108

URETHANE,BLUE,BLUE,TRIM8#

sub33504-20052

sub33504-14050

main33504-20052-16iLX60,RX6#..5F198009-198108

URETHANE,DARK BROWN,BROWN,TRIM0#,4#

sub33504-20052

sub33504-14050

main33504-20062-01iRX60..4F198009-198108

URETHANE,BLACK,BLACK,TRIM2#

sub33504-20062

sub33504-14040

main33504-20062-04iRX60..4F198009-198108

URETHANE,BLUE,BLUE,TRIM8#

sub33504-20062

sub33504-14040

main33504-20062-06iRX60..4F198009-198108

URETHANE,DARK BROWN,BROWN,TRIM0#,4#

sub33504-20062

sub33504-14040

main33504-22101-01iTX62..4F198107-198208

BLACK,BLACK,TRIM2#

sub33504-14040

sub33504-22101

main33504-22101-04iTX62..4F198107-198208

BLUE,BLUE,TRIM8#

sub33504-14040

sub33504-22101

main33504-22101-06iTX62..4F198107-198208

DARK BROWN,BROWN,TRIM0#,4#

sub33504-14040

sub33504-22101

main33504-22111-01iLX60..STD198009-198208

BLACK,BLACK,TRIM2#

sub33504-14050

sub33504-22111

main33504-22111-04iLX60..STD198009-198201

BLUE,BLUE,TRIM8#

sub33504-14050

sub33504-22111

main33504-22111-06iLX60..STD198009-198208

DARK BROWN,BROWN,TRIM0#,4#

sub33504-14050

sub33504-22111

main33504-22111-14iLX60..STD198201-198208

BLUE,BLUE,TRIM8#

sub33504-14050

sub33504-22111

main33504-24010-01iLX60,RX6#..5F198108-198208

BLACK,BLACK,TRIM2#

sub33504-24010

main33504-24010-04iLX60,RX6#..5F198201-198208

BLUE,BLUE,TRIM8#

sub33504-24010

main33504-24010-06iGX6#,LX60,RX6#,TX62..5F198108-198504

DARK BROWN,BROWN,TRIM0#,4#

sub33504-24010

main33504-24010-14iLX60,RX6#..5F198108-198504

BLUE,BLUE,TRIM8#

sub33504-24010

main33504-24010-22iGX6#,LX60,RX60,TX62..5F198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

sub33504-24010

main33542-24030-01iLX60,MX62,RX6#..ATM198108-198208

BLACK,BLACK,TRIM2#

sub33542-24030

main33542-24030-04iGX6#,LX60,MX6#,RX6#,TX62..ATM198108-198504

BLUE,BLUE,TRIM8#

sub33542-24030

main33542-24030-06iGX6#,LX60,MX6#,RX6#,TX62..ATM198108-198504

DARK BROWN,BROWN,TRIM0#,4#

sub33542-24030

main33542-24030-22iGX6#,LX60,MX6#,RX60,TX62..ATM198208-198504

DEEP MAROON,RED/MAROON,TRIM3#

sub33542-24030

main33542-30110-01iTX62..3FC198009-198208

BLACK,BLACK,TRIM2#

sub33542-30110

sub33542-24030

main33542-30110-04iTX62..3FC198009-198208

BLUE,BLUE,TRIM8#

sub33542-30110

sub33542-24030

main33542-30110-06iLX60,MX62,RX6#,TX62..ATM198009-198208

DARK BROWN,BROWN,TRIM0#,4#

sub33542-30110

sub33542-24030

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33570-22070iGX6#,LX60,RX6#..4F,5F198009-198504

sub33570-30010

main33570-22080iTX62..MTM198107-198504

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33503-22170iLX60,MX62,RX6#,TX62..RHD..ATM198009-198208

main33503-22180iLX60,RX60..LHD..ATM198009-198208

main33503-22210iGX6#,MX6#,RX60,TX62..RHD..ATM198208-198504

main33503-22220iGX6#,LX60,RX60..LHD..ATM198208-198407

main33530-22180iGX6#,LX60,RX6#..RHD..(4F,5F)198009-198504

sub33530-22181

main33530-22190iGX6#,LX60,RX60..LHD..(4F,5F)198009-198407

sub33530-22191

main33530-22200iTX62..MTM198107-198504

33555BOOT, SHIFT LEVER

main33555-22040iGX6#,LX60,MX6#,RX6#,TX62..ATM198009-198504

main33555-22050iGX6#,LX60,RX6#,TX62..4F,5F198009-198504

33599GASKET, CONTROL SHIFT LEVER RETAINER, NO.2

main33584-22020iGX6#,LX60,RX6#,TX62..4F,5F198009-198504

9161160825

main91611-60825

9338116012

main93381-16012

9 parts on this diagram · 2 diagrams in section
