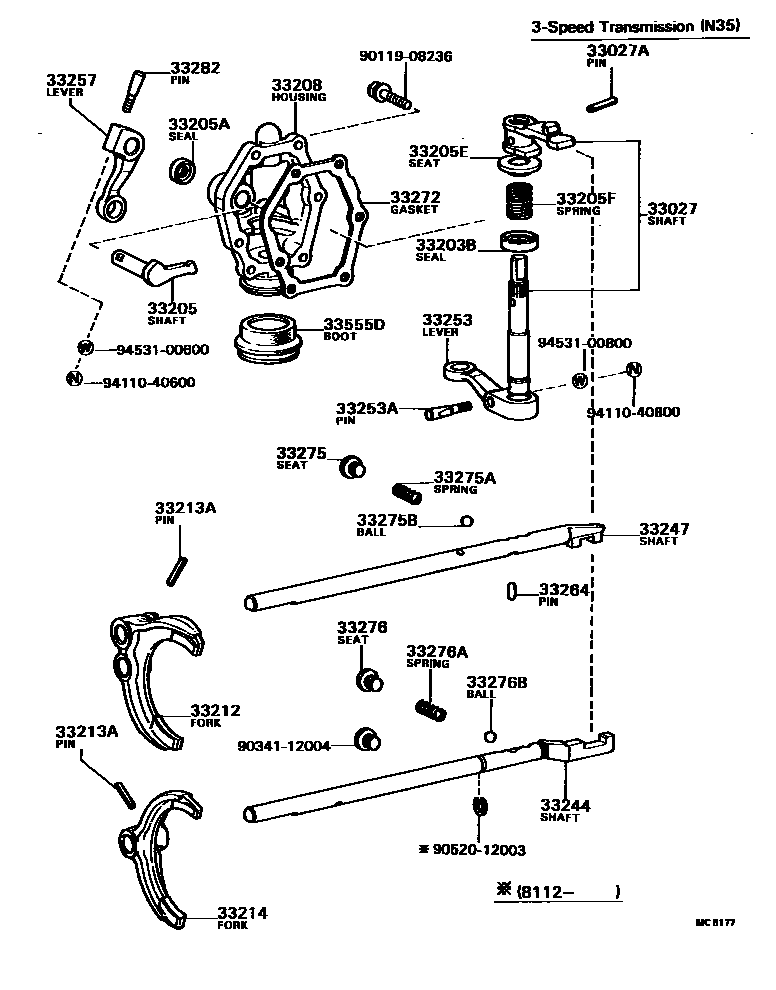

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1 0002 1 0003 1 0004 1 0005 1

33027SHAFT SET, SHIFT LEVER

main33027-30020iRX60..RHD..3H198009-198208

sub33027-30030

33027APIN, SLOTTED SPRING(FOR SHIFT LEVER SHAFT SET)

main90254-05001iRX60..RHD..3H198009-198208

33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1

main33203-20060iRX60..LHD..3H198009-198108

main33261-30071iRX60..4H198108-198407

33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)

main90311-18002iRX60..RHD..3H198009-198208

main90313-13001iRX60..LHD..3H198009-198108

33205SHAFT SUB-ASSY, SELECT LEVER

main33262-30030iRX60..RHD..3H198009-198208

main33262-30051iRX60..4H198108-198407

33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)

main90311-16001iRX60..4H198108-198407

main90313-13001iRX60..RHD..3H198009-198208

33205ESEAT(FOR SELECT RETURN SPRING)

main33276-30021iRX60..RHD..3H198009-198208

sub33276-28011

33205FSPRING, COMPRESSION(FOR SELECT RETURN)

main90501-16036iRX60..RHD..3H198009-198208

33208HOUSING SUB-ASSY, SHIFT LEVER SHAFT

main33208-20020iRX60..LHD..3H198009-198108

main33271-30030iRX60..RHD..3H198009-198208

33212FORK, 1ST & REVERSE SHIFT

main33212-30020iRX60..LHD..3H198009-198108

main33212-30040iRX60..RHD..3H198009-198208

sub33212-30041

33213FORK, 1ST & 2ND SHIFT

main33212-22020iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

sub33212-30050

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05001iRX60..LHD..3H198009-198108

main90254-05016iRX60..RHD..3H;GX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

33214FORK, 2ND & 3RD SHIFT

main33213-30020iRX60..LHD..3H198009-198108

main33213-30040iRX60..RHD..3H198009-198208

sub33213-30041

33244SHAFT, 2ND & 3RD SHIFT FORK

main33243-30050iRX60..LHD..3H198009-198108

main33243-30090iRX60..RHD..3H198009-198112

sub33243-30091

main33243-30091iRX60..3H198112-198208

33247SHAFT, 1ST & REVERSE SHIFT FORK

main33242-30030iRX60..LHD..3H198009-198108

main33242-30040iRX60..RHD..3H198009-198208

33253LEVER, SHIFT OUTER, NO.1

main33253-22020iRX60..LHD..3H198009-198108

main33253-22050iRX60..RHD..3H198009-198208

main33253-30171iRX60..4H198108-198407

33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)

main33281-16020iRX60..RHD..3H198009-198208

main33281-30010iRX60..LHD..3H198009-198108

sub33281-16020

main33281-30030iRX60..4H198108-198407

33257LEVER, SELECT OUTER

main33257-30040iRX60..RHD..3H198009-198208

main33257-30060iRX60..4H198108-198407

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main33264-22010iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

main90250-06006iRX60..RHD..3H198009-198208

L=13.4,OD=6

33272GASKET, SHIFT LEVER SHAFT HOUSING

main33272-20020iRX60..LHD..3H198009-198108

main33272-30040iRX60..RHD..3H198009-198208

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main90341-12004iRX60..RHD..3H;GX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

OD=18

main90341-16001iRX60..LHD..3H198009-198108

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-13004iRX60..RHD..3H;GX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

L=20.65

sub90501-14123

main90501-14524iRX60..LHD..3H198009-198108

33275BBALL, SHAFT DETENT

main90360-10003iGX6#,LX60,RX6#,TX62..MTM198009-198504

33276SEAT, SHIFT DETENT BALL SPRING, NO.2

main90341-12004iRX60..RHD..3H198009-198208

main90341-12005iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

sub90341-12018

main90341-12059iRX60..LHD..3H198009-198108

33276ASPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)

main90501-13004iRX60..RHD..3H;GX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

sub90501-14123

main90501-14524iRX60..LHD..3H198009-198108

33276BBALL, SHIFT DETENT, NO.2

main90360-10003iGX6#,LX60,RX6#,TX62..MTM198009-198504

33282PIN, LEVER LOCK, NO.2

main33281-30030iRX60..4H198108-198407

main33282-35010iRX60..RHD..3H198009-198208

33555DBOOT, SHIFT LEVER

main33555-30111iRX60..RHD..3H198009-198208

9011908236

main90119-08236

9034112004

main90341-12004

9052012003

main90520-12003

9411040600

main94110-40600

9411040800

main94110-40800

9453100600

main94531-00600

9453100800

main94531-00800

35 parts on this diagram · 5 diagrams in section
