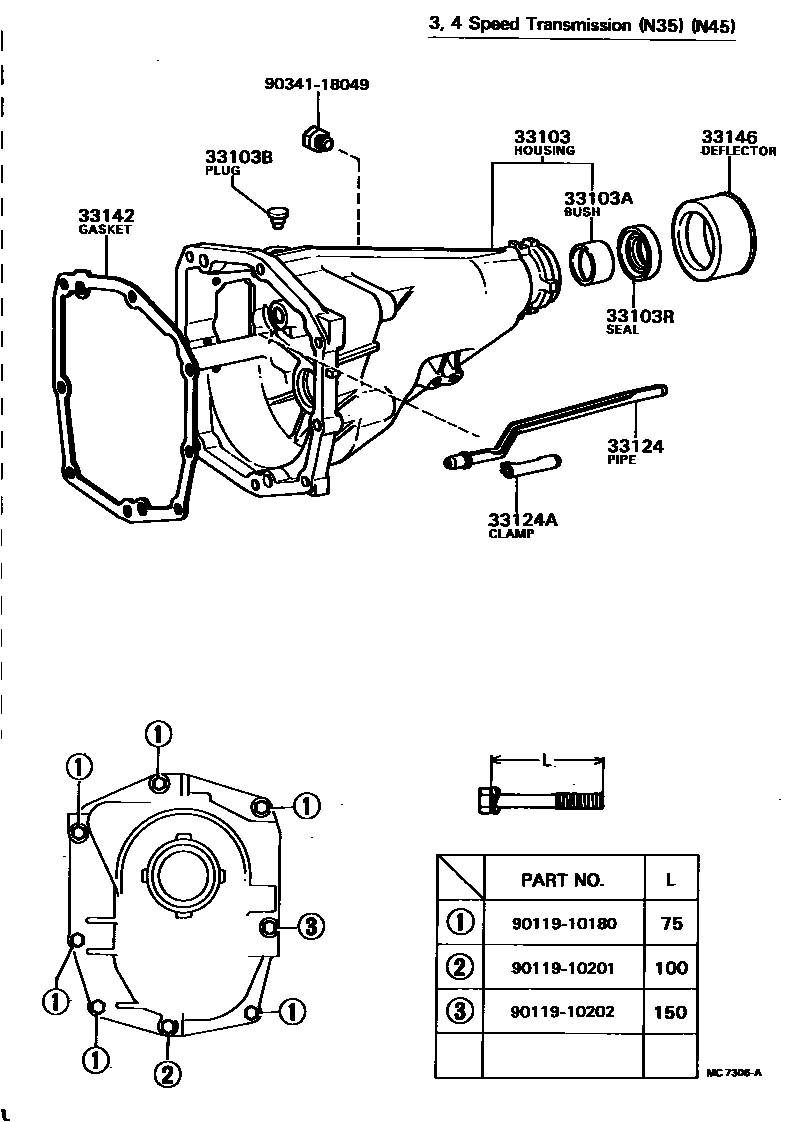

EXTENSION HOUSING (MTM)

0001 1 0002 1 0003 1

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-22090iGX6#,LX60,RX6#,TX62..5F198009-198504

sub33103-22091

main33103-22100iRX60,TX62..4F198009-198407

sub33103-22101

main33103-30150iRX60..LHD..3H198009-198108

main33103-30170iRX60..RHD..3H198009-198208

sub33103-30171

main33103-30181iRX60..4H198108-198407

sub33103-30182

33103ABUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90999-72023iRX60..RHD..3H;GX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

sub90999-73139

main90999-73077iRX60..LHD..3H198009-198108

33103BPLUG, BREATHER(FOR TRANSMISSION EXTENSION HOUSING)

main90930-03001iRX60..LHD..3H198009-198108

main90930-03080iRX60..RHD..3H198009-198407

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-38043iRX60..RHD..3H;GX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

sub90311-38040

main90311-38140iRX60..LHD..3H198009-198108

33124PIPE, OIL RECEIVER(MTM)

main33106-22010iGX6#,LX60,RX6#,TX62..5F198009-198504

sub33106-35030

main33106-22020iRX60,TX62..4F198009-198407

main33106-30030iRX60..4H198108-198407

main33124-30050iRX60..LHD..3H198009-198108

main33124-30060iRX60..RHD..3H198009-198208

33124ACLAMP(FOR TRANSMISSION OIL RECEIVER PIPE)

main90463-08036iRX60..RHD..3H198009-198208

main90463-08037iRX60..LHD..3H198009-198108

33142GASKET, EXTENSION HOUSING(MTM)

main33142-22010iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

main33142-30040iRX60..LHD..3H198009-198108

main33142-30050iRX60..RHD..3H198009-198208

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30010iGX6#,LX60,RX6#,TX62..MTM198009-198504

sub33146-30020

9011910180

main90119-10180

9011910201

main90119-10201

9011910202

main90119-10202

9034118049

main90341-18049

12 parts on this diagram · 3 diagrams in section
