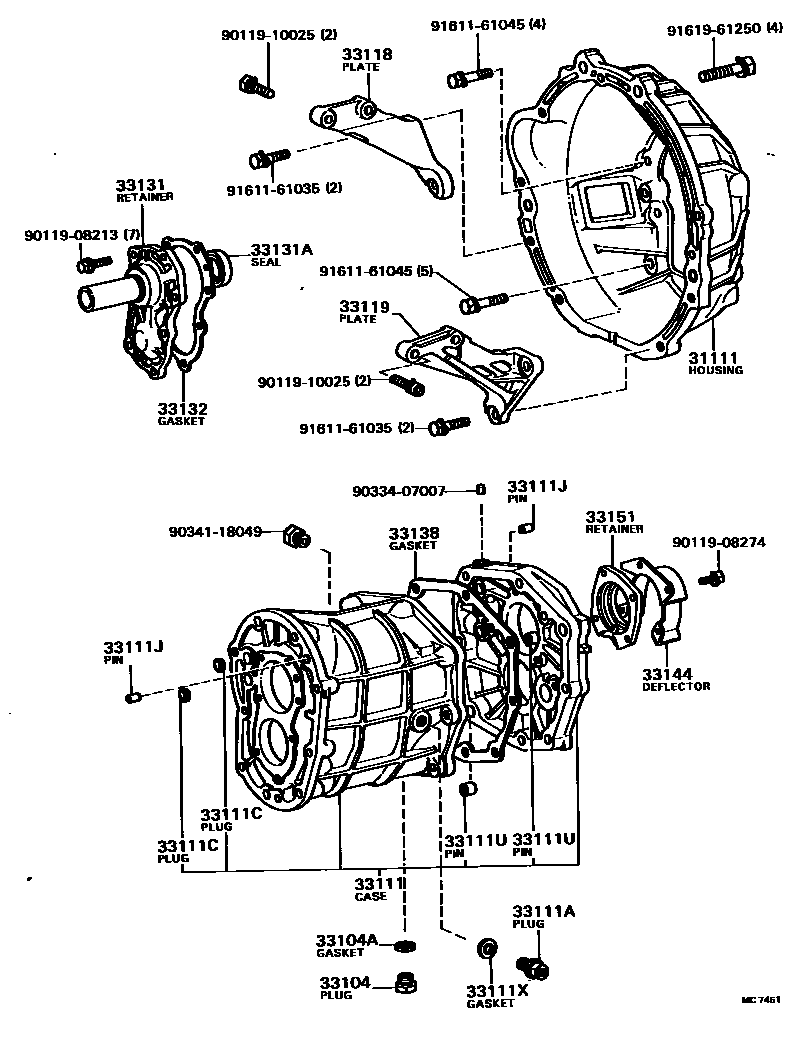

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

31111HOUSING, CLUTCH

main31111-14060iRX62..5F198107-198208

main31111-20110iRX60..LHD..3H198009-198108

main31111-20160iTX62..MTM198107-198504

main31111-20170iRX60..4F,5F;RX60..RHD..3H198009-198108

sub31111-20171

main31111-20171iRX60..3H,4F,5F198108-198504

main31111-22110iLX60..5F198009-198108

sub31111-22111

main31111-22111iLX60..5F198108-198407

sub31111-22112

main31111-22130iGX6#..5F198208-198504

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18057iGX6#,LX60,RX6#,TX62..MTM198009-198504

33104AGASKET, DRAIN PLUG(MTM)

main12157-10010iLX60,RX6#,TX62..MTM198009-198108

main90430-18007iGX6#,LX60,RX6#,TX62..MTM198108-198407

sub90430-18008

main90430-18008iRX60,TX62..5F198408-198504

33111CASE, MANUAL TRANSMISSION

main33101-22010iLX60,RX6#,TX62..4F,5F198009-198108

sub33101-22020

main33101-22021iGX6#,LX60,RX6#,TX62..4F,4H,5F198108-198504

sub33101-22031

main33101-30030iRX60..RHD..3H198009-198112

sub33101-30031

main33101-30031iRX60..3H198112-198208

sub33101-30050

sub33124-30061

main33111-30081iRX60..LHD..3H198009-198108

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18002iGX6#,LX60,RX6#,TX62..MTM198009-198504

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iRX60..RHD..3H;GX6#,LX60,RX6#,TX62..4F,5F198009-198504

OD=14

main90344-53015iRX60..LHD..3H198009-198108

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iGX6#,LX60,RX6#,TX62..3H,4F,5F198009-198504

L=16,OD=12,L=16,D=12

main90250-12146iLX60,RX6#,TX62..4F,5F198009-198109

L=17,OD=12,L=17,D=12

main90250-12216iRX60..LHD..3H198009-198108

L=14,OD=12

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-15001iRX60..RHD..3H198009-198208

L=14,OD=15

33111XGASKET, TRANSMISSION CASE PLUG

main12157-10010iLX60,RX6#,TX62..MTM198009-198108

main90430-18007iGX6#,LX60,RX6#,TX62..MTM198108-198407

sub90430-18008

main90430-18008iRX60,TX62..5F198408-198504

33118PLATE, STIFFENER, RH(MTM)

main33118-14010iTX62..MTM198107-198504

main33118-22030iRX6#..MTM198009-198504

main33118-22050iGX6#..5F198208-198504

sub33118-22051

main33118-25020iLX60..5F198009-198407

33119PLATE, STIFFENER, LH(MTM)

main33119-14040iTX62..MTM198107-198504

main33119-22021iRX6#..MTM198009-198504

sub33119-22022

main33119-22041iGX6#..5F198208-198504

sub33119-22042

main33119-25020iLX60..5F198009-198407

33131RETAINER, BEARING, FRONT(MTM)

main33131-22020iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

sub33131-22021

main33131-30040iRX60..LHD..3H198009-198108

main33131-30050iRX60..RHD..3H198009-198208

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30115iRX60..RHD..3H;GX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

main90311-32106iRX60..LHD..3H198009-198108

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-22010iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

main33132-30050iRX60..RHD..3H198009-198208

33138GASKET, INTERMEDIATE PLATE

main33138-30010iRX60..RHD..3H198009-198208

main33142-22010iGX6#,LX60,RX6#,TX62..4F,5F198009-198504

33144DEFLECTOR, EXTENSION HOUSING OIL(MTM)

main33144-30021iRX60..RHD..3H198009-198010

sub33144-30022

main33144-30022iRX60..RHD..3H198010-198208

sub33144-43010

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33107-22010iGX6#,LX60,RX6#,TX62..4F,4H,5F198009-198504

main33151-30030iRX60..LHD..3H198009-198108

main33151-30040iRX60..RHD..3H198009-198208

9011908213

main90119-08213

9011908274

main90119-08274

9011910025

main90119-10025

9033407007

main90334-07007

9034118049

main90341-18049

9161161035

main91611-61035

9161161045

main91611-61045

9161961250

main91619-61250

25 parts on this diagram · 7 diagrams in section
