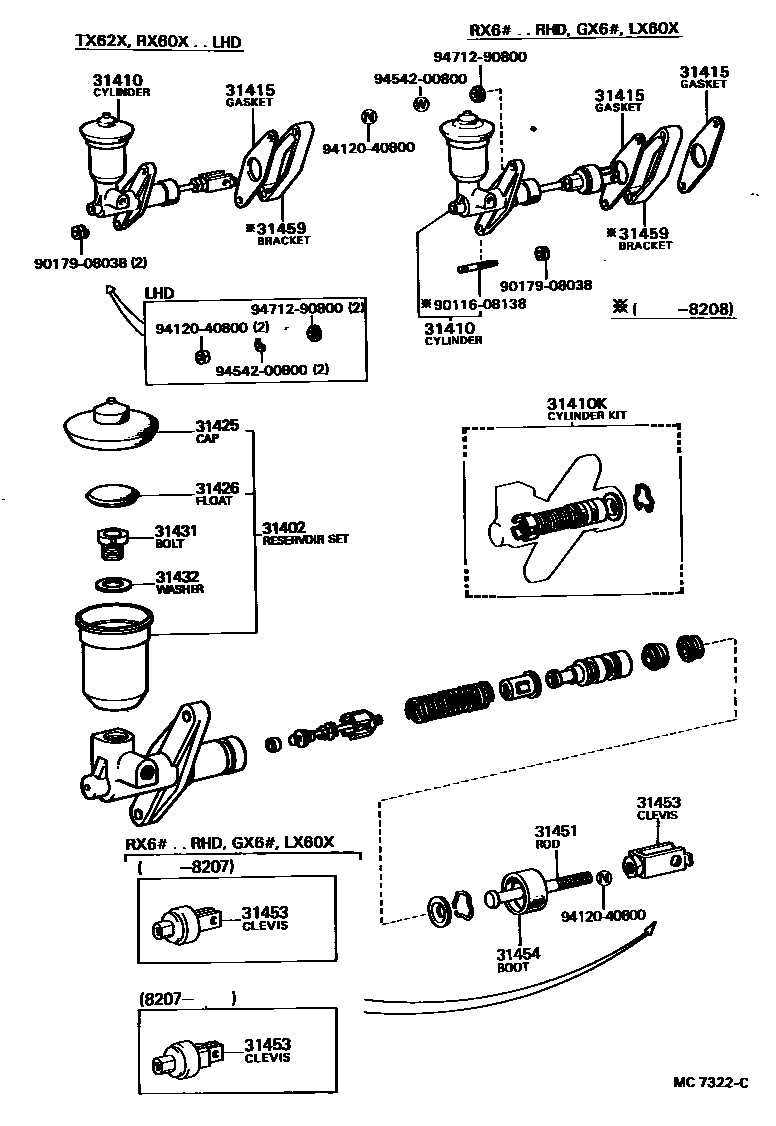

CLUTCH MASTER CYLINDER

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-30030iLX60,RX6#..RHD..MTM198101-198504

main47202-12050iLX60,RX60..MTM198009-198504

31410CYLINDER ASSY, CLUTCH MASTER

main31410-22070iRX60..LHD..MTM198009-198504

sub31410-22071

main31410-22090iLX60..LHD..5F198009-198207

sub31410-22H00

main31410-22091iLX60..LHD..5F198207-198208

sub31410-22092

main31410-24012iGX6#,LX60..5F198208-198504

sub31410-22140

main31410-30110iLX60,RX60..RHD..MTM198009-198101

sub31410-35110

main31410-35110iLX60,RX6#..RHD..MTM198101-198207

sub31410-35220

main31410-35111iLX60,RX6#..RHD..MTM198207-198208

sub31410-35230

31410KCYLINDER KIT, CLUTCH MASTER

main04311-14011iTX62..5F198211-198504

sub04311-14012

main04311-20050iRX60..LHD..MTM198009-198211

sub04311-14011

main04311-30080iRX6#..RHD..MTM198009-198504

sub04311-14020

31415GASKET, CLUTCH MASTER CYLINDER

main31415-30030iLX60,RX60..LHD..MTM198009-198407

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iGX6#,LX60,RX6#,TX62..MTM198009-198504

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iGX6#,LX60,RX6#,TX62..MTM198009-198504

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main31427-22010iRX60..LHD..MTM198308-198504

main47231-30010iRX60..RHD..MTM198009-198504

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iGX6#,LX60,RX6#,TX62..MTM198009-198504

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-20050iRX60..LHD..MTM198009-198504

main31451-30060iRX6#..RHD..MTM198009-198504

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-30040iLX60..5F198009-198207

main31404-30041iGX6#,LX60..5F198207-198405

main31404-30042iGX6#,LX60..5F198405-198504

main31453-22010iTX62..MTM198009-198504

sub31453-35010

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iRX60..LHD198009-198504

main31454-24010iGX6#,LX60..5F198208-198504

31459BRACKET, CLUTCH MASTER CYLINDER

main31459-35010iLX60..5F198009-198208

9011608138

main90116-08138

9017908038

main90179-08038

9412040800

main94120-40800

9454200800

main94542-00800

9471290800

main94712-90800

17 parts on this diagram · 1 diagram in section
