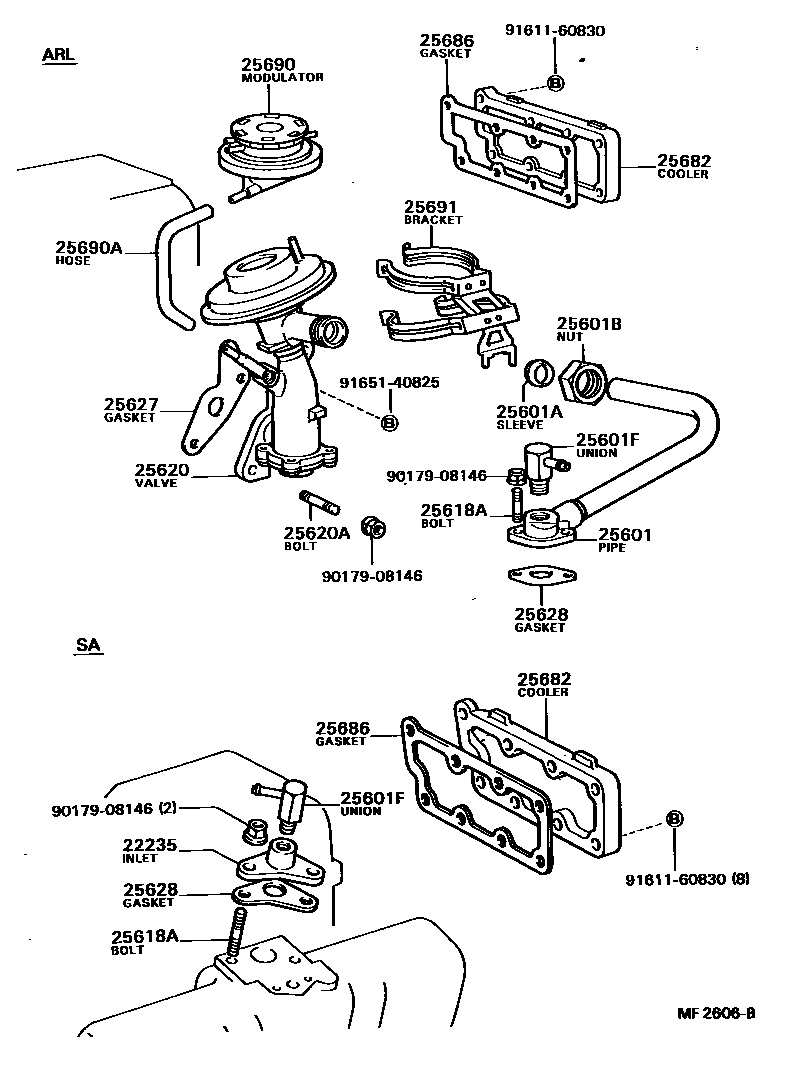

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

22235INLET, AUXILIARY AIR

main22235-43010i5ME..MX63198312-198504

25601PIPE SUB-ASSY, EGR, NO.1

main25601-38010i21RC..RX60198009-198407

main25601-43010i5ME..MX62198009-198407

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-16001i5ME..MX62198009-198407

main90410-16044i21RC..RX60198009-198407

25601BNUT, UNION, EGR PIPE, NO.1

main90402-22005i5ME..MX62198009-198407

main90402-22081i21RC..RX60198009-198407

25601FUNION(FOR EGR PIPE, NO.1)

main90404-53027i5ME..MX6#198009-198504

25618ABOLT, STUD(FOR EGR INLET)

main90116-08025i5ME..MX6#198009-198504

25620VALVE ASSY, EGR

main25620-37030i21RC..RX60198009-198108

main25620-37040i21RC..RX60198108-198407

sub25620-37050

main25620-43030i5ME..MX62198009-198208

main25620-43031i5ME..MX62198208-198407

25620ABOLT, STUD(FOR EGR VALVE)

main90116-08025i5ME..MX62198009-198407

main90116-08207i21RC..RX60198009-198407

25627GASKET, EGR VALVE

main25627-45011i5ME..MX62198009-198208

sub25627-43130

main25627-45020i5ME..MX62198208-198407

sub25627-43070

25628GASKET, EGR INLET

main25628-38010i21RC..RX60198009-198407

sub25628-35030

main25628-43010i5ME..MX62198009-198407

sub25628-43050

main25628-45020i5ME..MX63198312-198504

sub25628-43040

25682COOLER, EGR, NO.2

main25682-45020i5ME..MX6#198009-198504

25686GASKET, EGR COOLER, NO.2

main25686-45010i5ME..MX6#198009-198504

sub25686-43010

25690MODULATOR ASSY, EGR VACUUM

main25690-37020i21RC..RX60198108-198407

main25870-43020i5ME..MX62198009-198208

main25870-43021i5ME..MX62198208-198407

25690AHOSE(FOR EGR VACUUM MODULATOR)

main90445-11020i5ME..MX62198009-198407

sub90445-11051

main90910-05147i21RC..RX60198108-198407

25691BRACKET, EGR VACUUM MODULATOR

main25691-37011i21RC..RX60198108-198407

main25691-43010i5ME..MX62198009-198308

main25691-43030i5ME..MX62198308-198407

9017908146

main90179-08146

9161160830

main91611-60830

9165140825

main91651-40825

18 parts on this diagram · 2 diagrams in section
