FUEL PUMP & PIPE

0001 1 0002 1 0003 1

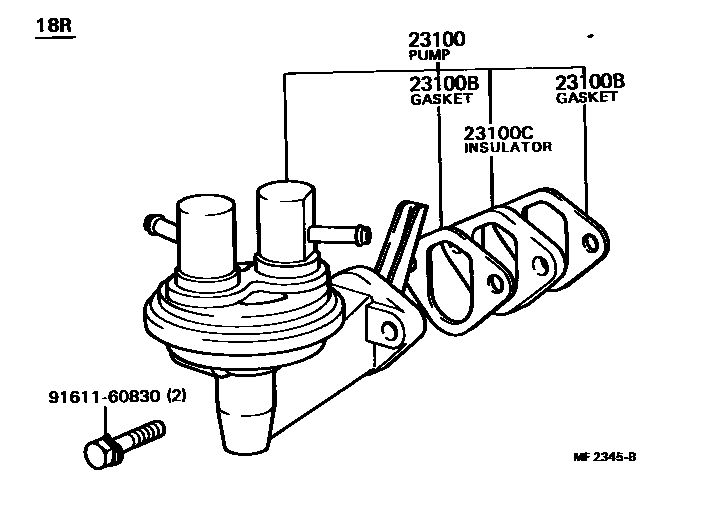

23100PUMP ASSY, FUEL

main23100-19115i3T..TX62..3FC198107-198108

sub23100-19116

main23100-19116i3T..TX62..3FC198108-198504

sub23100-19117

main23100-29305i3T..TX62..4F198107-198108

sub23100-29306

main23100-29306i3T..TX62..MTM198108-198504

sub23100-29307

main23100-37060i21R..RX60198408-198504

sub23100-37061

main23100-39295i18R..RX62198107-198208

sub23100-39296

main23100-39345i21R#..RX60198009-198108

sub23100-39346

sub23841-37030

sub90447-12025

sub90447-12027

main23100-39346i21R#..RX60198108-198407

sub23100-37041

23100BGASKET, FUEL PUMP

main90923-05005i21R#,18R..RX6#198009-198504

sub90923-05019

23100CINSULATOR, FUEL PUMP

main90923-06001i21R#,18R..RX6#198009-198504

sub90923-06009

9161160830

main91611-60830

4 parts on this diagram · 3 diagrams in section
