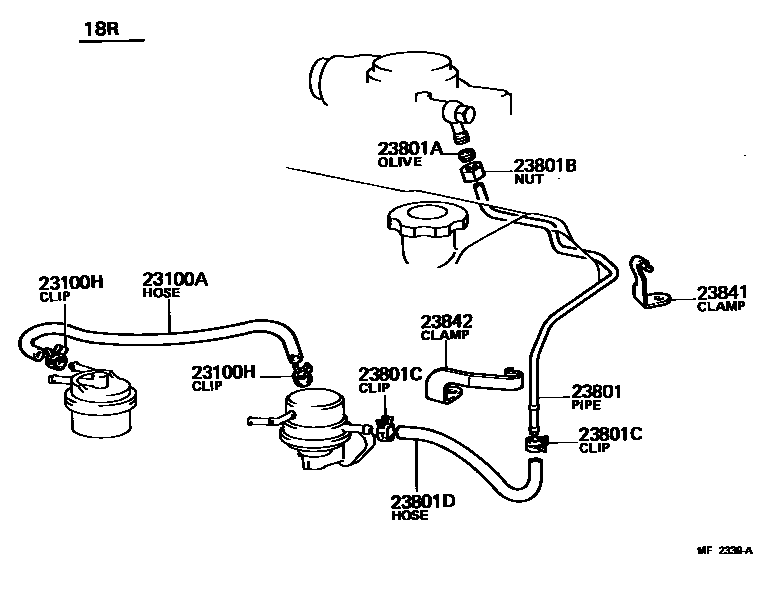

FUEL PIPE & CLAMP

0001 1 0002 1 0003 1

23100AHOSE, FUEL

main23271-37040i21R#..RX60198208-198504

sub23273-37030

main90445-12075i21RC..RX60198009-198108

sub95332-06030

main90447-12025i21R..RX60198009-198208

main95332-06030i18R..RX62198107-198208

L=300

sub95333-06030

main95332-06030i3T..TX62198107-198504

*H,L=240

sub95333-06030

23100HCLIP(FOR FUEL HOSE)

main96132-30600i21R#,18R..RX6#198009-198504

sub96132-51100

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main23811-34041i18R..RX62198107-198208

main95332-06020i21R#..RX60198009-198504

L=200(*H,L=190)

sub95333-06020

main95332-06030i3T..TX62198107-198504

L=300

sub95333-06030

23801AOLIVE(FOR FUEL PIPE)

main96395-71200i18R..RX62198107-198208

23801BNUT, UNION(FOR FUEL PIPE)

main96315-11200i18R..RX62198107-198208

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main96132-30600i21R#,18R..RX6#198009-198504

sub96132-51100

23801DHOSE, FUEL PIPE, NO.1

main95332-06020i18R..RX62198107-198208

L=200(*H,L=160)

sub95333-06020

23841CLAMP, FUEL PIPE(HOSE), NO.1

main23841-34030i18R..RX62198107-198208

main23841-37030i21R..RX60198009-198504

23842CLAMP, FUEL PIPE(HOSE), NO.2

main23842-34051i18R..RX62198107-198208

9 parts on this diagram · 3 diagrams in section
