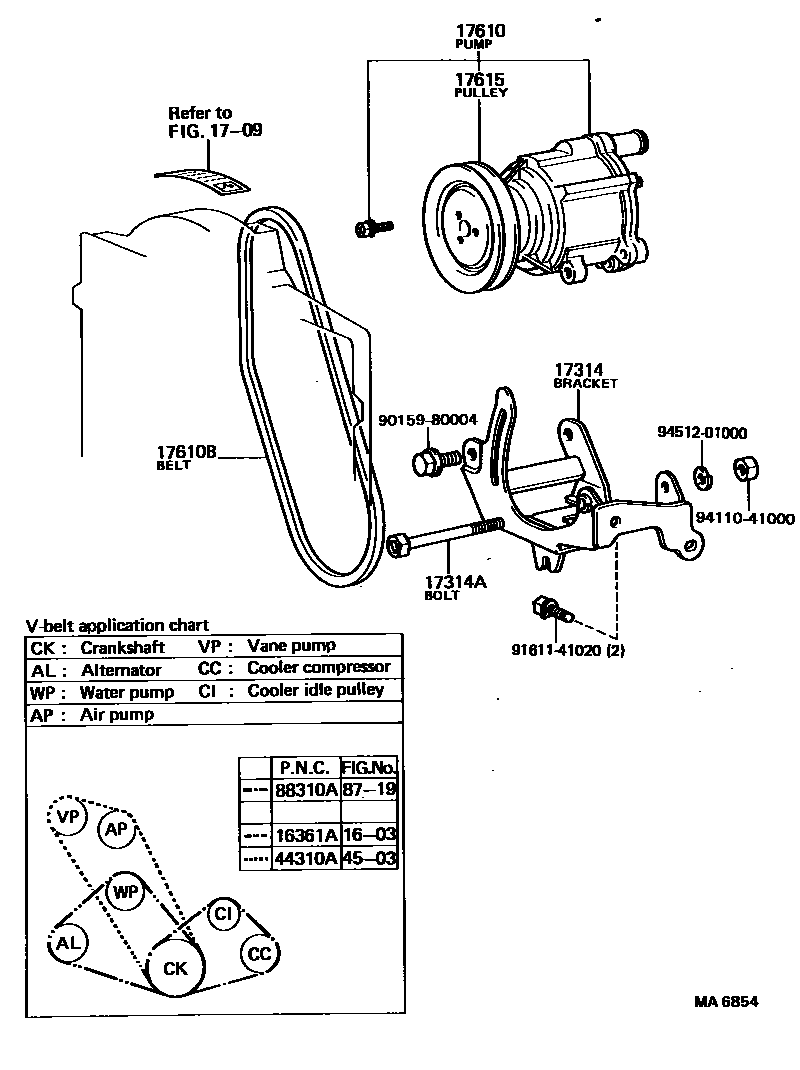

AIR PUMP

0001 1 0002 1

1603

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02076i5ME..MX62198009-198308

DOUBLE V BELTS,L=925

main90916-02133iL..LX60198211-198407

L=990

main99321-00885i3T..TX62198107-198504

main99331-00870i21R..RX60198408-198504

L=870

main99331-00880i21R#..RX60198009-198407

L=880

main99332-00985iL..LX60198009-198104

L=985

main99332-10985iL..LX60198104-198207

L=985

main99332-11000iL..LX60198207-198211

L=1000

main99332-51130i1GE..GX6#198208-198308

main99364-01100i1GE..GX6#198308-198504

sub99364-81100

main99367-00920i5ME..MX6#198308-198504

1709

17314BRACKET, AIR PUMP

main17314-35010i21RC..RX60198009-198407

main17314-41030i5ME..MX62198009-198308

sub17314-41031

main17314-41031i5ME..MX62198308-198407

17314ABOLT, HEXAGON(FOR AIR PUMP BRACKET SETTING)

main90101-10463i21RC..RX60198009-198407

main90110-10001i5ME..MX62198009-198407

17610PUMP ASSY, AIR

main17610-35010i21RC..RX60198009-198401

main17610-35011i21RC..RX60198401-198407

main17610-45031i5ME..MX62198009-198407

17610BBELT, V(FOR AIR PUMP)

main99332-01395i5ME..MX62198009-198407

main99332-10820i21RC..RX60198009-198407

17615PULLEY(FOR AIR PUMP)

main17615-35010i21RC..RX60198009-198407

main17615-41020i5ME..MX62198009-198407

44310ABELT, V(FOR VANE PUMP)

main90916-02078iMX63198312-198504

sub90916-02465

main90916-02080iLX60..DLX198009-198407

main90916-02092iGX6#198208-198504

main99332-51135iRX60..(GL,SXL)..(ME,SA)198009-198407

4503

8719

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99322-00890iRX60..WG..LHD;RX60..RHD..(EUR,GEN);RX60..(GL,SXL)..(ME,SA);RX60..LHD..GL..(EUR,GEN);RX60..SED..LHD..DLX..EUG;RX60..SED..LHD..DLX..(GEN,ME,SAA)198009-198407

main99322-00910iGX61..LHD198208-198308

sub99332-00910

main99322-01270iLX60..RHD198009-198407

sub99322-11270

main99322-50950iMX6#198208-198504

main99332-00910iMX62198009-198208

main99364-00850iGX61..LHD198308-198504

L=850

sub99364-20850

9015980004

main90159-80004

9161141020

main91611-41020

9411041000

main94110-41000

9451201000

main94512-01000

16 parts on this diagram · 2 diagrams in section
