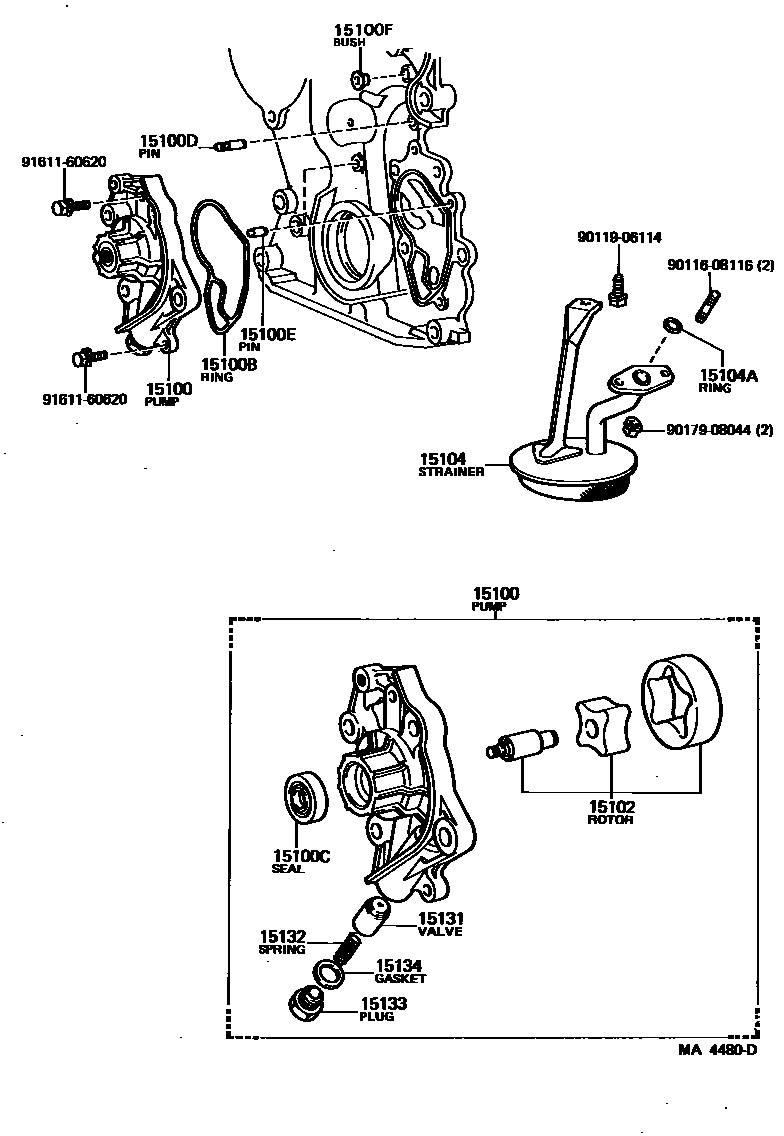

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

15100PUMP ASSY, OIL

main15100-25020i3T..TX62198107-198209

main15100-26020i3T..TX62198209-198504

main15100-35020i21R..RX60198408-198504

main15100-36010i18R..RX62198107-198108

sub15100-36011

main15100-36011i18R..RX62198108-198208

main15100-38021i21R#..RX60198009-198407

sub15100-35010

main15100-41030i5ME..MX62198009-198208

main15100-43030i5ME..MX6#198208-198504

main15100-70011i1GE..GX6#198208-198504

15100BRING, O(FOR OIL PUMP)

main15188-70010i1GE..GX6#198208-198504

15100CSEAL(FOR OIL PUMP)

main15165-70010i1GE..GX6#198208-198504

15100DPIN(FOR OIL PUMP SET)

main15182-70010i1GE..GX6#198208-198504

15100EPIN, STRAIGHT (FOR OIL PUMP SET)

main15181-70010i1GE..GX6#198208-198504

15100FBUSH (FOR OIL PUMP)

main15186-70010i1GE..GX6#198208-198504

sub90029-38300

15102ROTOR SET, OIL PUMP

main15102-25010i3T..TX62198107-198504

main15102-36010i18R..RX62198107-198108

main15102-36011i18R..RX62198108-198208

main15102-70011i1GE..GX6#198208-198504

15104STRAINER SUB-ASSY, OIL

main15104-36010i18R..RX62198107-198208

main15104-37010i21R#..RX60198009-198504

main15104-38011i21R..RX60..GEN,ME,SA,SAA198009-198108

sub15104-37010

main15104-54030iL..LX60198009-198106

sub15104-54031

main15104-54031iL..LX60198106-198202

main15104-54032iL..LX60198202-198407

main15104-70010i1GE..GX6#198208-198504

sub15104-70040

sub15147-70021

15104ARING, O(FOR OIL STRAINER)

main96732-19020i1GE..GX6#198208-198504

15131VALVE, OIL PUMP RELIEF

main15131-22010i3T..TX62198107-198504

main15131-24010i5ME..MX6#198208-198504

main15131-38030i21R#..RX60198009-198504

main15131-40010i5ME..MX62198009-198208

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i3T..TX62198107-198504

main15132-46010i5ME..MX6#198009-198504

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i21R#..RX60198009-198504

main15133-24010i5ME..MX6#198208-198504

main15133-41030i3T..TX62198107-198504

sub15133-20010

15134GASKET, OIL PUMP RELIEF VALVE

main15134-20010i21R#..RX60198009-198504

9011608116

main90116-08116

9011906114

main90119-06114

9017908044

main90179-08044

9161160620

main91611-60620

17 parts on this diagram · 7 diagrams in section
