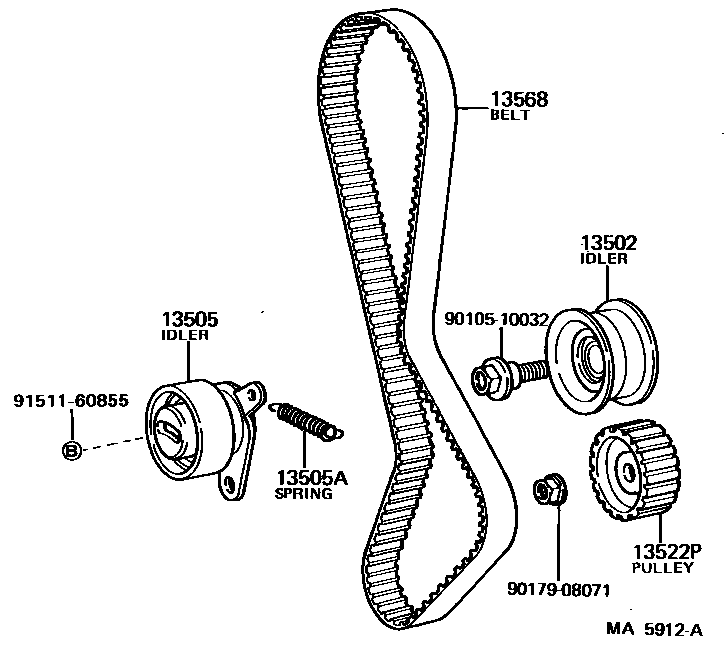

TIMING BELT

0001 1 0002 1

13502IDLER SUB-ASSY, TIMING BELT, NO.2

main13503-54010iL..LX60198205-198407

sub13503-54020

main13503-70020i1GE..GX6#198208-198407

13505IDLER SUB-ASSY, TIMING BELT, NO.1

main13505-54010iL..LX60198009-198407

main13505-70021i1GE..GX6#198208-198504

sub13505-70012

13505ASPRING, TENSION(FOR IDLER)

main90506-12001iL..LX60198009-198101

main90506-14034i1GE..GX6#198208-198504

sub90506-12054

main90506-14038iL..LX60198101-198407

13522PPULLEY, PUMP DRIVE SHAFT

main13524-70011i1GE..GX6#198208-198407

13568BELT, TIMING

main13568-59015iL..LX60198009-198205

sub13568-59016

main13568-59025iL..LX60198205-198407

sub13568-59026

main13568-70010i1GE..GX6#198208-198407

sub13568-79055

9010510032

main90105-10032

9017908071

main90179-08071

9151160855

main91511-60855

8 parts on this diagram · 2 diagrams in section
