CAMSHAFT & VALVE

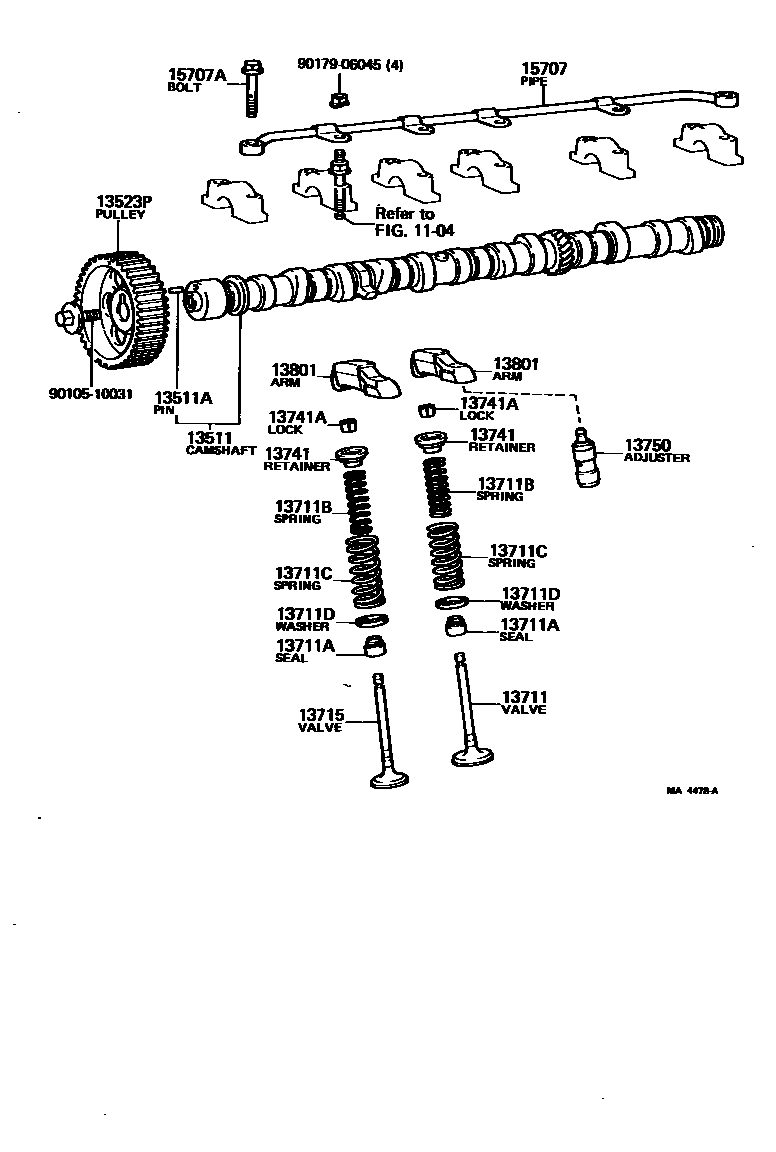

Parts diagram

1104

13511CAMSHAFT

main13501-45030i198009-198504

main13501-54020i198308-198407

main13501-54030i198205-198308

main13501-70020i198208-198504

main13511-25010i198107-198210

main13511-25900i198210-198504

main13511-33906i198107-198208

main13511-35010i198009-198504

main13511-54010i198009-198205

13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)

main90249-08042i198009-198504

L=23,OD=8

main90250-05121i198205-198504

L=15,OD=5

main90250-06001i198009-198504

L=14,OD=6,L=14,OD=6

main90250-08074i198107-198208

L=15,OD=8,L=15,OD=8

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13522-33010i198107-198504

main13523-33010i198107-198208

N=24

main13523-35010i198207-198407

N=36

main13523-35020i198408-198504

main13523-38011i198009-198207

N=36

main13523-43010i198009-198504

N=40

13523PPULLEY, CAMSHAFT TIMING

main13523-54010i198009-198205

main13523-54020i198205-198407

main13523-70010i198208-198407

13711VALVE, INTAKE

main13711-25011i198107-198504

main13711-35040i198408-198504

main13711-36021i198107-198208

main13711-37010i198009-198407

main13711-43020i198009-198504

main13711-54010i198009-198407

main13711-70020i198208-198504

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02015i198009-198504

EXHAUST

main90913-02022i198009-198504

INTAKE

main90913-02023i198009-198212

main90913-02023i198107-198504

INTAKE

main90913-02036i198009-198107

main90913-02038i198208-198504

main90913-02053i198212-198504

main90913-02054i198107-198208

main90913-02058i198107-198504

EXHAUST

main90913-02060i198107-198407

13711BSPRING, COMPRESSION(FOR INNER)

main90501-26001i198009-198504

WD=2.6,CW=7.75

main90501-26016i198208-198504

main90501-26398i198107-198208

WD=2.6,CW=7.5

main90501-44002i198008-198407

WD=4.35,CW=6.25

main90501-47540i198107-198504

13711CSPRING, COMPRESSION(FOR OUTER)

main90501-40006i198208-198504

main90501-45002i198009-198504

WD=4.5,CW=6.2

main90501-45012i198107-198208

WD=4.5,CW=6.5

main90501-45025i198408-198504

main90501-47001i198009-198407

WD=4.7,CW=6.31

13711DWASHER, PLATE(FOR VALVE SPRING SEAT)

main90201-13308i198107-198208

main90201-14310i198009-198504

main90201-15387i198107-198504

main90201-16005i198208-198504

main90201-20579i198009-198504

13715VALVE, EXHAUST

main13715-25011i198107-198504

main13715-34013i198107-198208

main13715-35040i198408-198504

main13715-37020i198208-198407

main13715-38011i198009-198208

main13715-45020i198009-198504

main13715-54010i198009-198407

main13715-70020i198208-198504

13741RETAINER, VALVE SPRING

main13741-25012i198107-198504

main13741-33010i198107-198208

main13741-38010i198009-198504

main13741-41010i198009-198504

main13741-54010i198009-198407

main13741-70010i198208-198504

13741ALOCK, VALVE SPRING RETAINER

main90913-03005i198009-198504

main90913-03016i198009-198407

main90913-03017i198208-198504

13750ADJUSTER ASSY, VALVE LASH

main13750-70010i198208-198504

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-35010i198110-198504

main13801-41051i198009-198504

main13801-54010i198009-198106

main13801-54011i198106-198207

main13801-54012i198207-198308

main13801-54020i198308-198407

main13811-25011i198107-198504

main13811-33014i198107-198203

main13811-33020i198203-198208

main13811-38010i198009-198110

main13811-70030i198208-198504

15707PIPE SUB-ASSY, OIL

main15043-70010i198208-198407

main15707-33010i198107-198208

15707ABOLT, UNION(FOR OIL PIPE)

main90401-08002i198208-198407

main90401-10050i198107-198208

L=37

main90401-10051i198107-198208

L=19

9010510031

main90105-10031

9017906045

main90179-06045

19 parts on this diagram · 7 diagrams in section
