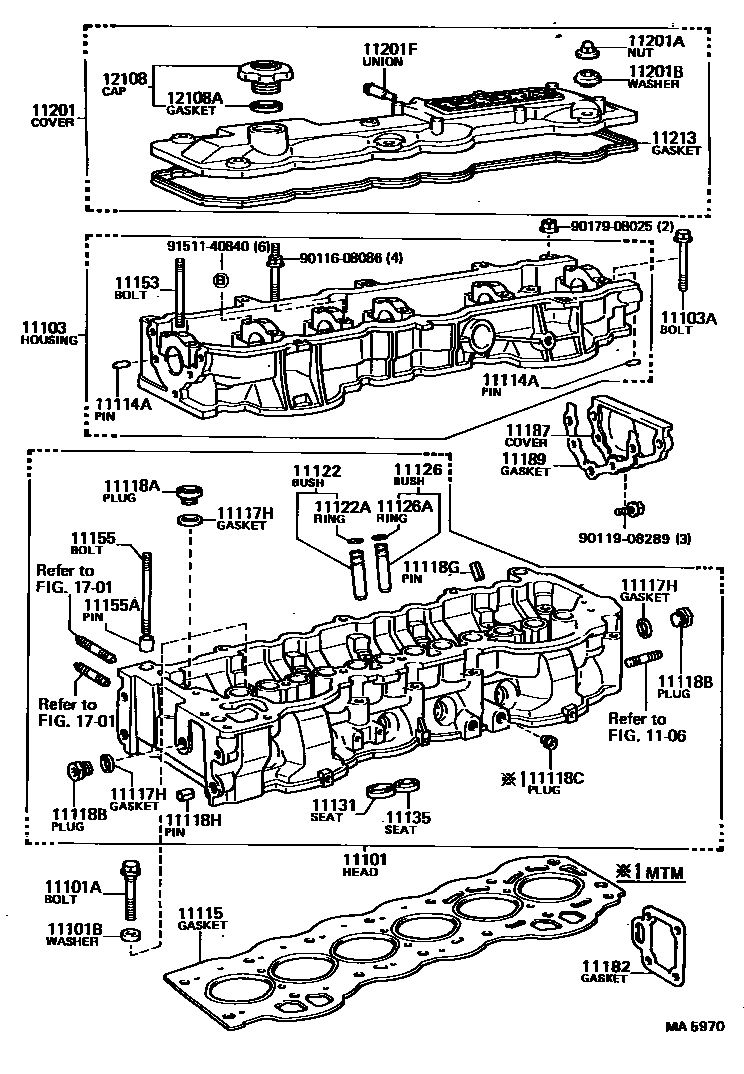

CYLINDER HEAD
1106
11101HEAD SUB-ASSY, CYLINDER
sub11101-35080
sub11101-49266
sub11101-43022
sub11101-59078
sub11101-70010
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11103ABOLT(FOR CAMSHAFT HOUSING SET)
*8-1.25PX67-30
11114APIN, STRAIGHT
L=14,OD=6
11115GASKET, CYLINDER HEAD
sub11115-25040
sub11115-36021
sub11115-37021
sub11115-43021
sub11115-54011
sub11115-54090
sub11115-70020
11117HGASKET(FOR WATER HOLE)
PNC 11118B
PNC 11118A
11118APLUG, STRAIGHT, NO.1
11118BPLUG, STRAIGHT, NO.2
sub90341-12013
11118CPLUG, STRAIGHT, NO.3
OVER DRIVE SENSOR
11118GPIN, SLOTTED SPRING, NO.1
11118HPIN, SLOTTED SPRING, NO.2
11122BUSH, INTAKE VALVE GUIDE
STD,STD
STD
STD,STD
STD,STD
STD,STD
STD,STD
O/S 0.05,O/S 0.05
O/S 0.05
O/S 0.05,O/S 0.05
O/S 0.05,O/S 0.05
O/S 0.05,O/S 0.05
O/S 0.05,O/S 0.05
STD,STD
O/S 0.05,O/S 0.05
11122ARING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
11126BUSH, EXHAUST VALVE GUIDE
STD
STD,STD
STD,STD
O/S 0.05
O/S 0.05,O/S 0.05
O/S 0.05,O/S 0.05
STD,STD
STD,STD
STD,STD
O/S 0.05,O/S 0.05
O/S 0.05,O/S 0.05
O/S 0.05,O/S 0.05
11126ARING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
11131SEAT, INTAKE VALVE
STD,STD
STD
STD,STD
O/S 0.03,O/S 0.03
O/S 0.03
O/S 0.03,O/S 0.03
11135SEAT, EXHAUST VALVE
STD,STD
STD
STD,STD
O/S 0.03,O/S 0.03
O/S 0.03
O/S 0.03,O/S 0.03
11153BOLT, STUD(FOR CAMSHAFT HOUSING TO CYLINDER HEAD COVER)
L=75,S=9&9
11155BOLT, STUD(FOR HEAD TO CAMSHAFT HOUSING)
L=114,S=20&12
11182GASKET, CYLINDER HEAD REAR PLATE
sub11182-25011
sub11182-25012
sub11182-35011
sub11182-35021
sub11182-35031
sub11182-35031
11187COVER, CAMSHAFT HOUSING, REAR
11189GASKET, CAMSHAFT HOUSING REAR COVER
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11201FUNION(FOR POSITIVE CRANKCASE VENTILATION)
12108AGASKET(FOR OIL FILLER CAP)
1701
9011608086
main90116-08086
9011908289
main90119-08289
9017908025
main90179-08025
9151140840
main91511-40840
38 parts on this diagram · 9 diagrams in section
