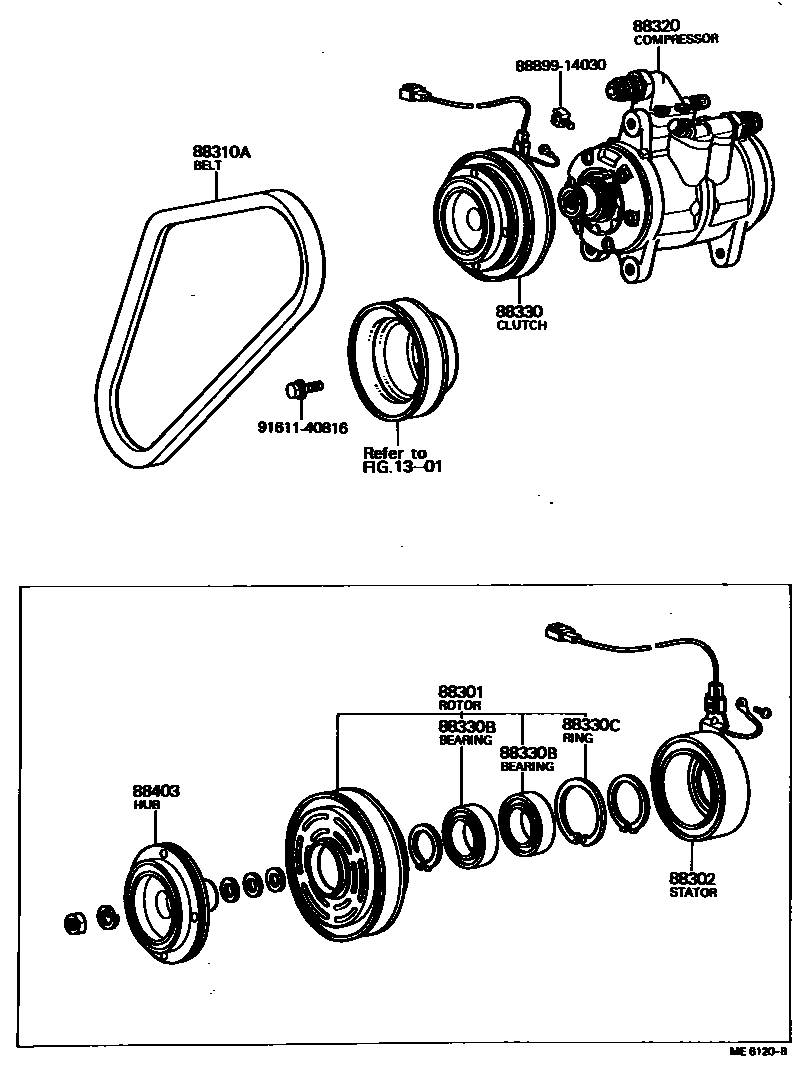

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

1301

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-26010iMX3#,RX3#197612-198008

sub88412-22240

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-22020iMX3#197612-198008

sub88411-22060

main88411-22030iRX3#197612-198008

sub88411-14040

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99322-01250iRX3#197808-198008

L=1250

sub99322-11250

main99322-51250iRX3#..EUR,GEN197803-197808

main99522-10890iMX3#197707-198008

sub99322-00890

main99522-10901iMX3#197612-197707

sub99322-00895

main99522-11256iRX3#..EUR,GEN197612-197803

sub99322-01250

88320COMPRESSOR ASSY, COOLER

main88320-22130iMX3#197612-198008

main88320-22150iRX3#..RHD197612-198008

main88320-22160iRX3#..LHD197612-198008

88330CLUTCH ASSY, MAGNET

main88410-22030iMX3#197612-198008

sub88410-22070

main88410-22040iRX3#197612-198008

sub88410-22080

88330BBEARING, MAGNET CLUTCH

main90099-10117iMX3#,RX3#197612-198008

sub90099-10108

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90099-07113iMX3#,RX3#197612-198008

sub90099-07094

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-22010iMX3#197612-198008

sub88403-22030

main88403-22020iRX3#197612-198008

8889914030COVER, EVAPORATOR

main88899-14030

9161140816

main91611-40816

11 parts on this diagram · 4 diagrams in section
