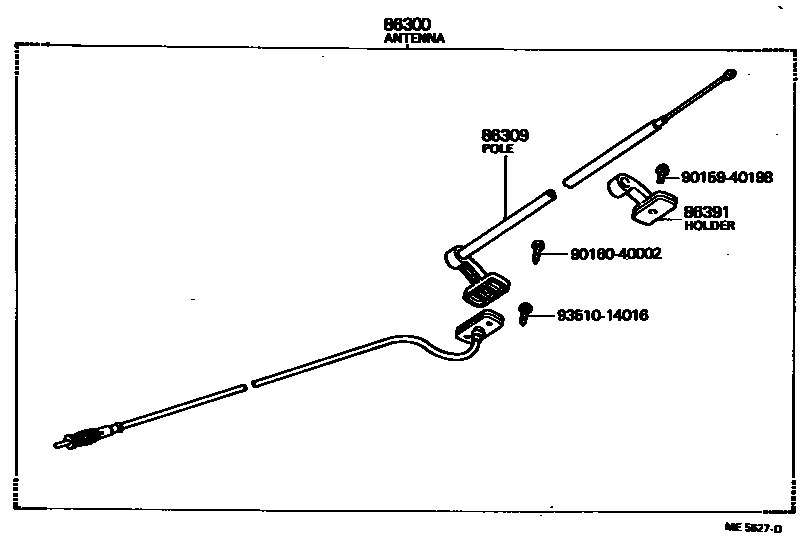

ANTENNA

0001 1 0003 1

86300ANTENNA ASSY, W/HOLDER

main86300-22080iRX30..RHD197612-198008

main86300-22090iRX3#..LHD197612-197803

main86300-22100iRX35..LHD..EUG197612-198008

sub86300-22090

main86300-22110iRX30..SED197808-198008

MOTOR TYPE

main86300-22120iMX32197808-198008

MANUAL

main86300-22120iRX30..SED197808-198008

MANUAL TYPE

main86300-22120iRX30..GL..SA198001-198008

MANUAL TYPE

main86300-95800iRX30..HT197808-198008

MANUAL TYPE

main86300-95801iRX30..HT197808-198008

MOTOR TYPE

86309POLE SUB-ASSY, PILLAR ANTENNA

main86309-22010iRX30..RHD..STD..EUG197612-197709

sub86309-22011

sub86391-22041

main86309-22011iRX30..RHD..STD..EUG197709-198008

main86309-22020iRX3#..LHD197612-197709

sub86309-22021

sub86391-22061

main86309-22021iRX3#..LHD197709-197803

main86309-22030iRX35..LHD..EUR197612-197709

sub86309-22031

sub86391-22061

main86309-22031iRX3#..LHD..EUR197705-198008

86391HOLDER, ANTENNA

main86391-22040iRX30..RHD..STD..EUG197612-197709

main86391-22041iRX30..RHD..STD..EUG197709-198008

main86391-22060iRX35..LHD197612-197709

main86391-22061iRX3#..LHD197709-197803

sub86391-22041

9015940198

main90159-40198

9016040002

main90160-40002

9351014016

main93510-14016

6 parts on this diagram · 2 diagrams in section
