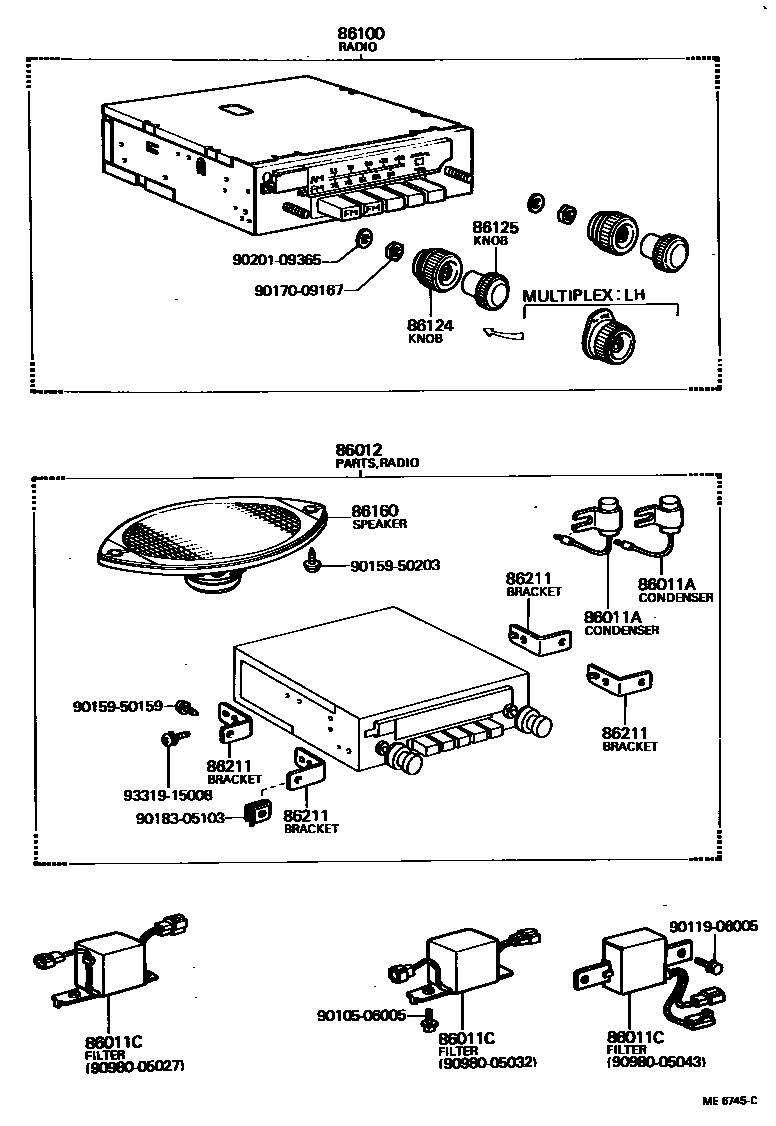

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0005 1

86011ACONDENSER, RADIO SETTING

main90980-04010iMX32197612-198008

FOR

main90980-04010iMX36,RX3#..ARL,EUR,GEN197612-198008

FOR REGULATOR

main90980-04010iRX30..GL..SA198001-198008

FOR REGULATOR

main90980-04011iMX36,RX3#..ARL,EUR,GEN197612-198008

FOR IGNITION COIL

main90980-04011iMX32197612-198008

FOR

main90980-04011iRX30..GL..SA198001-198008

FOR IGNITION COIL

86011CFILTER, NOISE

main90980-05027iRX30..EUR197708-197808

TEN AM,AM/FM

main90980-05032iRX30..EUR197708-197808

MW/LW

sub90980-05040

main90980-05043iRX30..EUR197708-197808

MW/LW

86012PARTS SET, RADIO SETTING

main86012-29055iMX3#,RX3#..ARL,EUR,GEN197612-197709

sub86012-29056

main86012-29056iRX3#..EUR,GEN197709-198008

86100RADIO ASSY

main86100-22140iMX3#,RX3#..ARL,EUR,GEN197612-197708

AM 5-BUTTON

main86100-22141iRX3#..DLX,STD197708-197909

AM 5-BUTTON

main86100-22142iMX3#,RX3#..DLX,SDX,STD197909-198008

AM 5-BUTTON

main86100-22170iRX3#..EUR197708-198008

MW/LW 5-BUTTON

main86100-22180iMX3#,RX3#..ARL,EUR,GEN197612-197706

AM/FM 5-BUTTON

sub86100-22181

main86100-22181iMX3#,RX3#..ARL,EUR,GEN197706-197708

AM/FM 5-BUTTON

main86100-22182iRX3#..EUR,GEN197708-197808

AM/FM 5-BUTTON

main86100-22192iRX30..GL..SA197808-198008

MULTIPLEX,AM/FM 5-BUTTON

main86100-22200iRX3#..GEN197708-198008

MW/SW 5-BUTTON

main86100-22210iMX3#,RX3#..ARL,GEN197711-197908

AM/FM 5-BUTTON

main86100-22210iRX3#..GEN197908-198008

AM/FM 5-BUTTON

main86100-22220iRX3#..LHD..EUG197808-198008

LW/MW/UKW

main86100-22280iMX3#..ARL197908-198008

MULTIPLEX AM/FM

86124KNOB, RADIO RECEIVER CONTROL

main86124-22030iMX3#,RX3#..ARL,EUR,GEN197612-197808

AM,AM/FM

sub86124-22031

main86124-22031iRX30..GL..SA197808-198008

RH.

main86124-22031iMX3#,RX3#..ARL,EUR,GEN197808-198008

main86124-22031iMX3#..ARL197908-198008

MULTIPLEX,RH.

main86124-22040iRX30..GL..SA197808-198008

LH.

main86124-22040iMX3#..ARL197908-198008

MULTIPLEX,LH.

main86124-22050iRX3#..EUR,GEN197708-197808

MW/LW, MW/SW

sub86124-22H00

86125KNOB, RADIO RECEIVER SWITCH

main86125-22020iMX36,RX3#..ARL,EUR,GEN197612-198008

86160SPEAKER ASSY, FRONT NO.1

main86160-20080iRX30..GL..SA198004-198008

REAR

sub86160-20110

main86160-22031iRX30..GL..SA197808-198004

REAR

main86160-22040iMX3#,RX3#..ARL,EUR,GEN197612-197709

FRONT

sub86160-22041

main86160-22041iMX32..SA197709-198008

FRONT

sub86160-95012

main86160-22050iMX32..ARL197809-198008

FRONT

main86160-22080iMX32198004-198008

REAR

main86160-23011iMX36197908-198004

REAR

sub86160-23012

main86160-23012iMX36198004-198008

REAR

sub86160-20080

86211BRACKET, RADIO, NO.1

main86211-22040iMX32197612-198008

9010506005

main90105-06005

9011906005

main90119-06005

9015950159

main90159-50159

9015950203

main90159-50203

9017009167

main90170-09167

9018305103

main90183-05103

9020109365

main90201-09365

9098005027

main90980-05027

9098005032

main90980-05032

9098005043

main90980-05043

9331915008

main93319-15008

19 parts on this diagram · 3 diagrams in section
