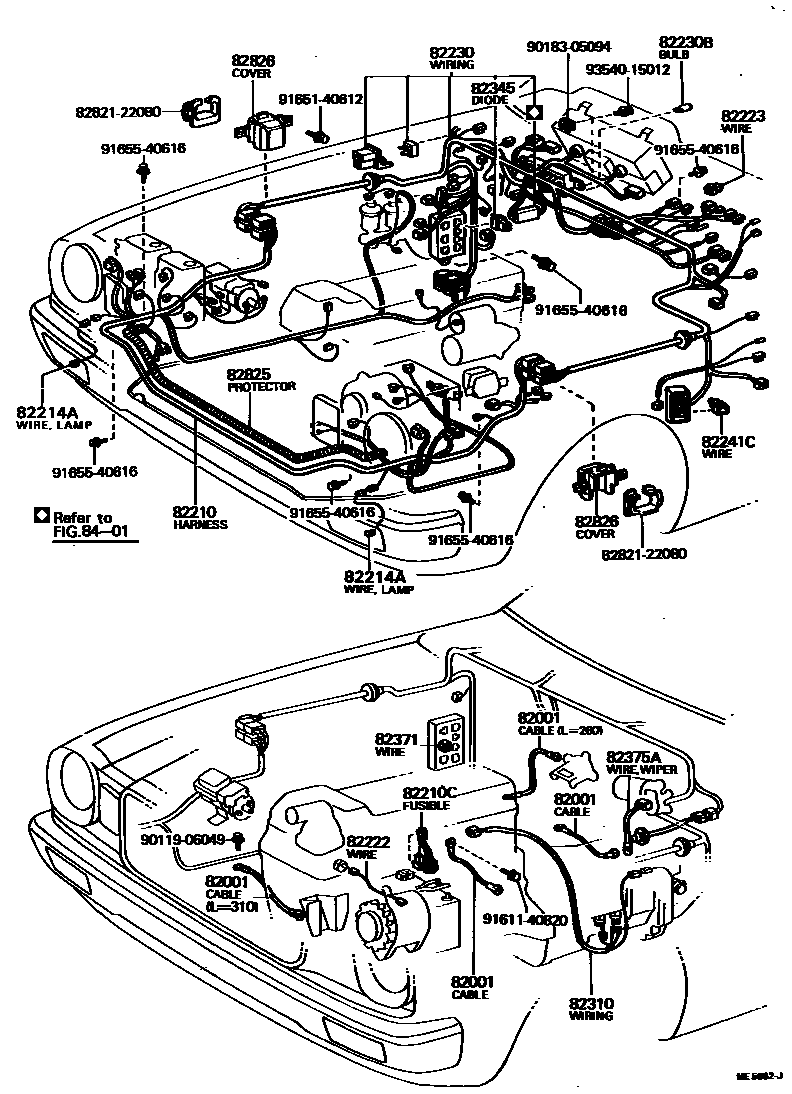

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

82001CABLE, BOND, NO.1

main90980-07061iMX3#,RX3#¥540197612-197704

L=300

main90980-07062iMX3#,RX3#¥700197612-198008

L=260

main90980-07114iMX3#,RX3#¥650197612-197702

L=450

main90980-07118iMX3#,RX3#¥590197702-198008

L=220

main90980-07119iMX3#,RX3#¥670197704-198008

L=350

main90982-02125iMX3#¥1,340197612-198008

L=350 FOR ENGINE MOUNTING

sub90982-02128¥1,340

main90982-02128iTX30¥1,340198001-198008

L=400 FOR ENGINE MOUNTING

main90982-02131iRX3#¥3,240197612-198008

L=310 FOR ENGINE MOUNTING

82210HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1

main82210-23280iRX30..SA197704-197708

main82210-23281iRX30..SA197708-197808

main82270-22320iMX32..SA197612-197808

main82270-22350iRX3#..RHD197612-197708

main82270-22351iRX3#..RHD197708-197808

main82270-22353iRX3#..RHD197808-197811

main82270-22354iRX3#..RHD197811-197908

main82270-22355iRX3#..RHD197908-198008

main82270-22360iRX3#..LHD197612-197708

main82270-22361iRX3#..LHD197708-197808

main82270-22362iRX3#..LHD197808-197811

main82270-22363iRX3#..LHD197811-197908

main82270-22364iRX3#..LHD197908-198008

main82270-22420iMX3#..ARL197711-197808

main82270-22421iMX3#..ARL197808-197809

main82270-22450iMX3#197809-198008

82210CFUSIBLE LINK

main90982-08048iMX3#,RX3#,TX30¥950197612-198008

82214AWIRE, LAMP

main82214-22080iRX3#..SED,WG197908-198008

S.A.B.

main82214-23010iMX36,RX35197612-197808

main82214-23020iMX36;RX35..3FC,3H,5F;RX35..4F..DLX..SA;RX35..4F..(EUR,GEN)197612-198008

REAR WIPER

main82214-23030iRX35..DLX;RX35..STD..(EUR,GEN)197808-198008

main82214-23040iRX35..RHD..EUG197908-198008

REAR FOG LAMP

82222WIRE, HEAT GAGE

main82219-22020iRX3#¥740197612-198008

82223WIRE, SWITCH

main82241-22070iRX3#,TX30..STD¥460197612-198008

L/RHEOSTAT

82230WIRING ASSY, FRONT SIDE

main82230-22140iRX3#..RHD¥49,200197612-197708

sub82230-22141¥49,200

main82230-22141iRX3#..RHD¥49,200197708-197712

sub82230-22142

main82230-22142iRX3#..RHD197712-197808

main82230-22143iRX3#..RHD197808-197908

main82230-22144iRX3#,TX30..RHD197908-198008

main82230-22150iRX3#..LHD197612-197707

main82230-22151iRX3#..LHD197707-197708

main82230-22152iRX3#..LHD¥51,400197708-197712

sub82230-22153

main82230-22153iRX3#..LHD197712-197808

main82230-22154iRX3#..LHD197808-197908

main82230-22155iRX3#..LHD197908-198008

main82230-22270iMX3#¥63,200197612-197712

sub82230-22271

main82230-22271iMX3#197712-197808

main82230-22272iMX3#197808-198008

main82230-22350iRX30..RHD..GL197808-197908

POWER WINDOW

main82230-22351iRX30..RHD..GL¥104,000197908-197909

POWER WINDOW

sub82230-22352

main82230-22352iRX30..RHD..GL197909-198008

POWER WINDOW

main82230-22360iRX30..LHD..GL197808-197908

POWER WINDOW

main82230-22361iRX30..SED..LHD..4F..DLX..GEN197908-198008

POWER WINDOW

main82230-22361iRX30..LHD..GL197908-198008

P.W. MIDDLE EAST COUNTRY

82230BBULB, FRONT SIDE WIRE

main90981-11018iRX3#..RHD¥140197808-198008

12V 1.4W

82241CWIRE, RELAY

main82241-22020iMX3#,RX3#¥710197808-198008

L/COOLER

82310WIRING ASSY, TO BACK UP LAMP SWITCH

main82310-22170iMX3#..4F197612-198008

main82310-22200iRX3#,TX30..4F,5F197612-198008

main82310-22210iRX3#..LHD..3H197612-198008

main82310-23010iRX3#..RHD..3H197612-198008

82345DIODE

main82345-22010iMX3#,RX3#¥1,430197710-197808

2-PIECE DIODE

main82345-22020iMX3#,RX3#197710-198008

1-PIECE DIODE

82371WIRE, WIPER RELAY

main82241-22010iRX3#,TX30..STD197808-198008

main82241-22060iRX3#197612-197808

82375AWIRE, WIPER MOTOR

main82375-22010iRX3#,TX30..RHD197612-198008

main82375-22020iRX3#..LHD197612-197902

main82375-22021iRX3#..LHD197902-197903

main82375-22022iRX3#..LHD197903-198008

82825PROTECTOR, WIRING HARNESS

main82817-22160iMX3#,RX3#197612-197912

L=1440

82826COVER, WIRING HARNESS HOLE

main82821-22010iMX3#,RX3#197612-197711

sub82821-22070

main82821-22070iMX3#,RX3#,TX30197711-198008

8401

8282122080RETAINER, HEADLAMP HARNESS

main82821-22080

9011906049

main90119-06049¥130

9018305094

main90183-05094¥90

9161140820

main91611-40820¥130

9165140612

main91651-40612¥70

9165540616

main91655-40616¥120

9354015012

main93540-15012¥70
