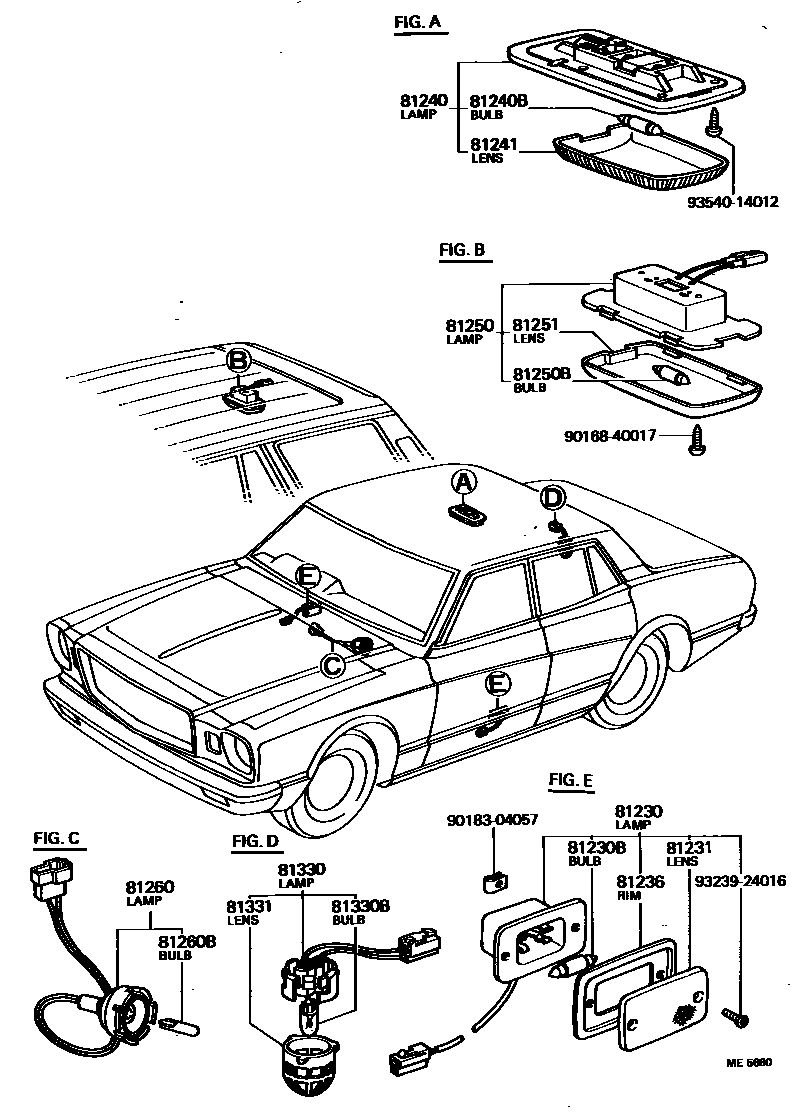

INTERIOR LAMP

81230LAMP ASSY, COURTESY

main81230-95800×2iRX30..HT197612-198008

81230BBULB(FOR COURTESY LAMP)

main99132-13050×2iRX30..HT197612-198008

12V 5W,12V 5W

81231LENS, COURTESY LAMP

main81231-30020×2iRX30..HT197612-198008

81236RIM, COURTESY LAMP

main81236-30010×2iRX30..HT197612-198008

81240LAMP ASSY, ROOM, NO.1

main81240-22030-03iMX3#,RX3#..ARL,GEN,SA197705-197803

GRAY,LENS:CLEAR,GRAY,TRIM1#,2#

main81240-22030-05iMX3#,RX3#197612-197705

BEIGE,BEIGE,TRIM4#

main81240-30040-15iMX3#,RX3#,TX30197803-198008

BEIGE,BEIGE,TRIM4#

main81240-30040-18iMX3#,RX3#,TX30197808-198008

IVORY,IVORY,TRIM2#,3#

main81240-30040-23iRX3#..EUR197705-197803

GRAY,LENS:MILK WHITE,GRAY,TRIM1#,2#

81240BBULB, ROOM LAMP, NO.1

main99132-12100iMX3#,RX3#,TX30197612-198008

12V 10W,12V 10W

81241LENS, ROOM LAMP, NO.1

main81241-14010iRX3#..EUR197705-197803

MILK WHITE

main81241-22030iMX3#,RX3#197612-197705

CLEAR

81250LAMP ASSY, ROOM, NO.2

main81250-23010iMX36,RX35197612-198008

81250BBULB, ROOM LAMP, NO.2

main90981-11004iMX36,RX35197612-198008

12V 10W,12V 10W

81251LENS, ROOM LAMP, NO.2

main81251-23010iMX36,RX35197612-198008

81260LAMP ASSY, GLOVE BOX

main81260-22030iMX3#,RX3#..DLX,GL,SDX197612-198008

81260BBULB(FOR GLOVE BOX)

main90981-11018iMX3#,RX3#..DLX,GL,SDX197612-198008

12V 1.2W W/O SOCKET,12V 1.4W

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-22030iMX32,RX30..DLX,GL,SDX197612-198008

sub81330-22031

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050iMX32,RX30..DLX,GL,SDX197612-198008

12V 5W,12V 5W

81331LENS, LUGGAGE COMPARTMENT LAMP

main81331-22030iMX32,RX30..DLX,GL,SDX197612-198008

9016840017

main90168-40017

9018304057

main90183-04057

9323924016

main93239-24016

9354014012

main93540-14012

19 parts on this diagram · 1 diagram in section
