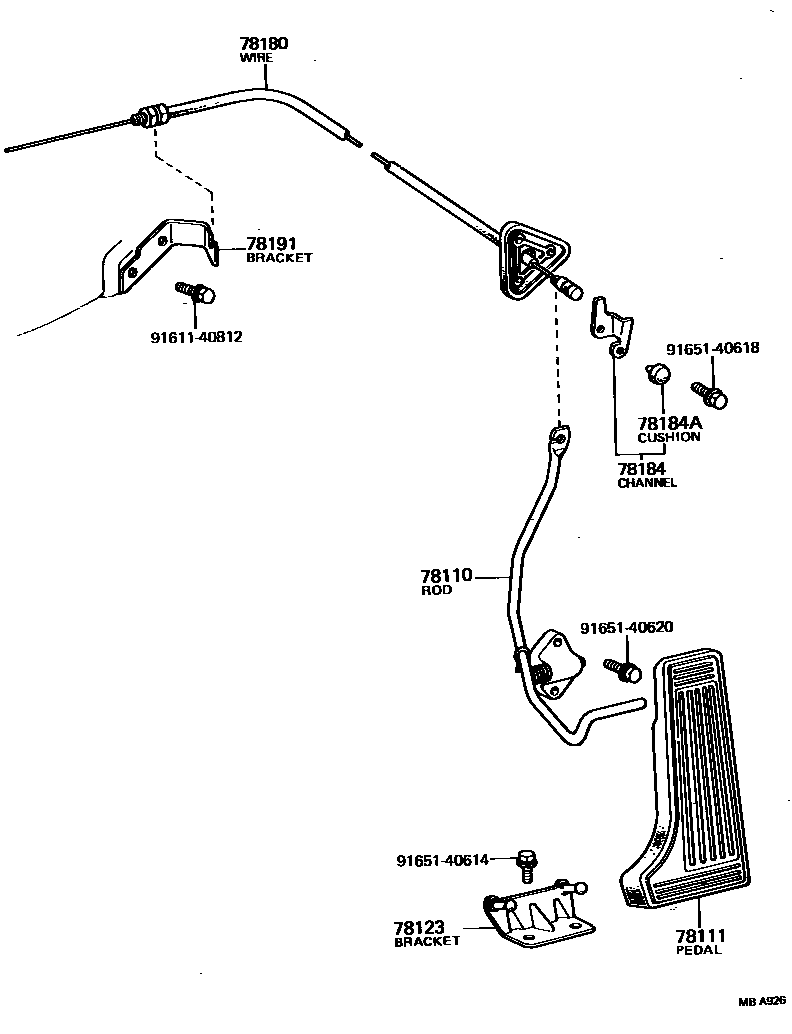

ACCELERATOR LINK

0001 1 0002 1 0003 1

78110ROD ASSY, ACCELERATOR PEDAL

main78120-22020iTX30198001-198008

main78120-22030iMX3#,RX3#..RHD..MTM197706-198008

main78120-22040iMX3#,RX3#..RHD..3FC197612-198008

main78120-22050iRX3#..LHD197612-198008

78111PEDAL, ACCELERATOR

main78010-22050iRX3#..LHD197612-198008

main78111-30060iMX3#,RX3#,TX30..RHD197612-198008

78123BRACKET, ACCELERATOR PEDAL SUPPORT

main78114-22020iMX3#,RX3#,TX30..RHD197612-198008

78180WIRE ASSY, ACCELERATOR

main78180-22060iTX30198001-198008

78184CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER

main78181-22030iTX30198001-198008

78184ACUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL)

main90541-06008iTX30198001-198008

78191BRACKET, ACCELERATOR WIRE SUPPORT

main78184-12050iTX30198001-198008

9161140812

main91611-40812

9165140614

main91651-40614

9165140618

main91651-40618

9165140620

main91651-40620

11 parts on this diagram · 3 diagrams in section
