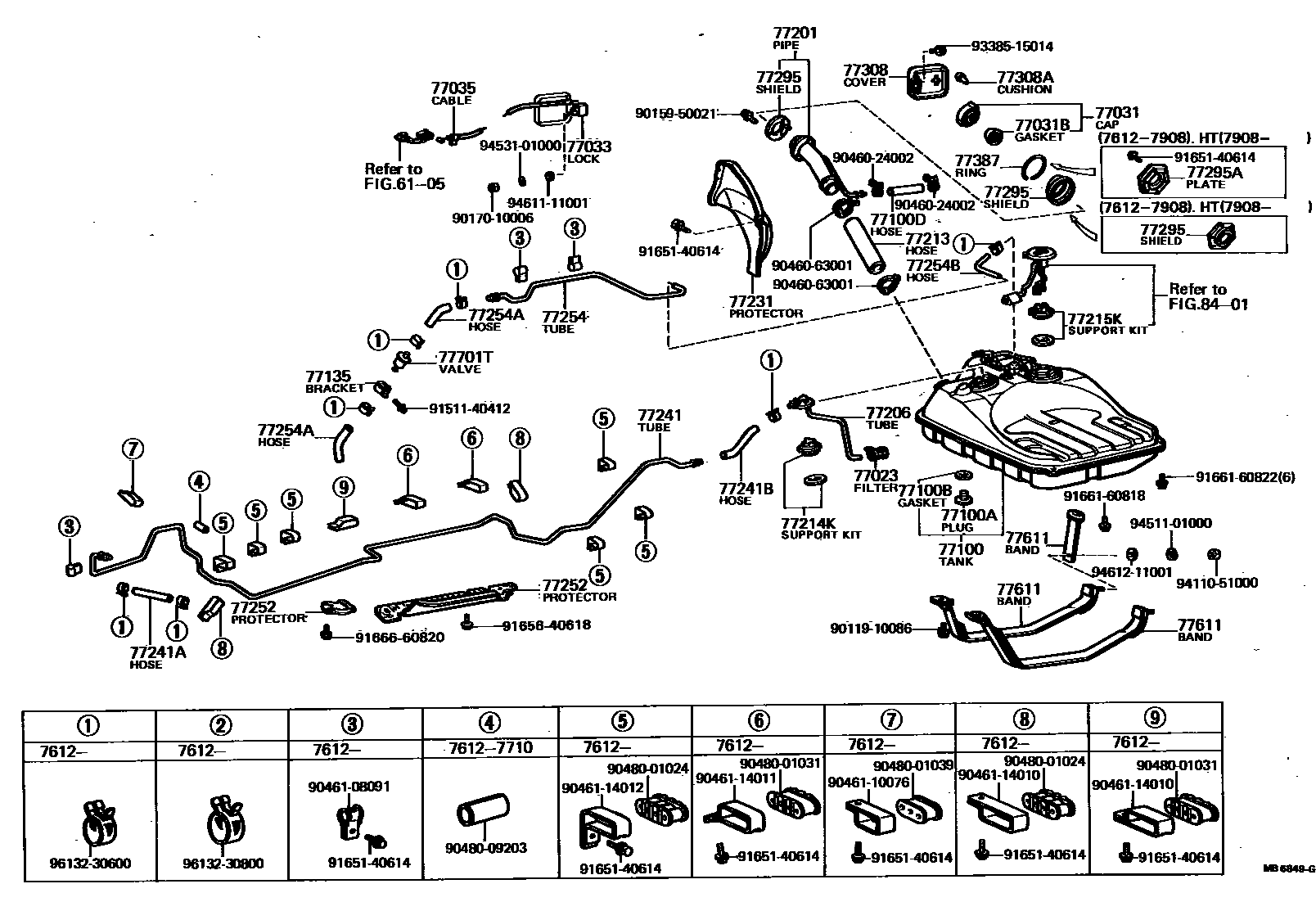

FUEL TANK & TUBE

0001 1 0002 1 0004 1 0005 1 0006 1

6105

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12050iRX3#,TX30¥920197801-198008

main77023-22040iMX3#¥1,050197801-198008

77031CAP ASSY, FUEL TANK

main77310-12090iMX3#,RX3#,TX30¥2,320197908-198008

sub77310-12100¥2,320

main77310-14070iMX3#,RX3#¥2,320197708-197908

main77310-30050iMX3#,RX3#¥2,420197612-197708

sub77310-14070¥2,320

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iMX3#,RX3#,TX30¥310197708-198008

main77316-12060iMX3#,RX3#197612-197708

77033LOCK SUB-ASSY, FUEL TANK CAP

main77037-22030iMX3#,RX3#..(DLX,GL)..(ARL,EUR,GEN)¥2,630197808-198008

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-22030iMX32,RX30..SED..RHD..(DLX,GL)..(ARL,EUR,GEN)197808-198008

main77035-22040iRX30..SED..LHD..(DLX,GL)197808-198008

main77035-91600iRX35..RHD..4F..EUG;MX36,RX35..RHD..DLX..(ARL,GEN,SA)197808-198008

main77035-91601iRX35..LHD..DLX197808-198008

main77035-95800iRX30..HT..RHD197808-198008

main77035-95801iRX30..HT..LHD197808-198008

77100TANK ASSY, FUEL

main77001-22120iMX32,RX30..ARL,GEN,SA197612-197801

sub77001-22140¥50,300

main77001-22141iMX32,RX30,TX30197801-198008

sub77100-22360

sub77100-22370

sub77100-22380

sub77100-22390

sub77100-22400

main77001-22150iRX30..EUR197612-197801

sub77001-22140¥50,300

main77001-91616iMX36¥58,100197612-197801

sub77001-91619¥58,100

main77001-91617iRX35¥57,000197612-197801

sub77001-91618¥57,000

main77001-91618iRX35¥57,000197801-197904

sub77001-91620¥57,000

main77001-91619iMX36¥58,100197801-197904

sub77001-91621¥58,100

main77001-91620iRX35¥57,000197904-198008

sub77001-91644

main77001-91621iMX36¥58,100197904-198008

sub77001-91645

77100APLUG(FOR FUEL TANK)

main90105-12018iMX36,RX35¥380197612-198008

main90341-24036iMX32,RX30,TX30¥890197612-198008

77100BGASKET(FOR FUEL TANK)

main90430-12245iMX36,RX35¥160197612-198008

main90430-24047iMX32,RX30,TX30¥250197612-198008

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main90445-22003iMX32,RX30,TX30¥640197612-198008

L=120

main90445-22007iMX36,RX35¥1,810197612-198008

L=520

77135BRACKET, CHECK VALVE

main77135-22020iMX32,RX30,TX30..EUR,GEN,SA¥400197612-198008

main77135-91600iRX35197612-198008

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-22070iMX32,RX30197612-197908

main77201-22072iMX32,RX30,TX30..SED197908-198008

main77201-91606iMX36,RX35197612-197908

main77201-91608iMX36,RX35197908-198008

main77201-95800iRX30..HT197908-198008

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77017-22010iMX32¥4,590197612-197801

sub77017-22011¥4,590

main77017-22011iMX32¥4,590197801-198008

main77017-22031iTX30..3FC198001-198008

main77017-22040iRX30¥2,360197612-197801

sub77017-22041

main77017-22041iTX30..4F197801-198008

main77017-91258iRX35198005-198008

main77017-91602iRX35197801-198005

main77017-91603iMX36197801-198005

main77017-91610iMX36198005-198008

77213HOSE, FUEL TANK SUB INLET

main77213-22040iMX32,RX30,TX30¥5,200197612-198008

sub77408-22010¥5,200

main77213-91605iMX36,RX35¥5,400197612-197905

sub77213-91606¥5,300

main77213-91606iMX36,RX35¥5,300197905-198008

77214KSUPPORT KIT, FUEL TANK TUBE

main04772-12010iMX32,RX30,TX30¥2,370197612-198008

77215KSUPPORT KIT, FUEL TANK GAGE

main04772-12020iMX32,RX30,TX30¥2,370197612-198008

77231PROTECTOR, INLET TUBE

main77277-22010iMX32,RX30197612-198008

main77277-22011iMX32,RX30,TX30..SED197908-198008

77241TUBE, FUEL MAIN, NO.1

main77251-22130iRX30,TX30¥3,450197612-198008

main77251-22140iMX32..ARL¥5,800197612-197908

sub77251-22180

main77251-22141iMX32..ARL197908-198008

main77251-22170iMX32..SA197707-198001

main77251-91613iRX35197612-198008

main77251-91614iMX36197612-198008

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main95331-06014iRX3#¥230197612-197706

*H,L=140

sub95332-06014¥240

main95331-08018iMX3#¥340197612-197706

*H,L=180

sub95332-08018¥350

main95332-06014iRX3#¥240197706-197904

L=200(*H,L=140)

sub95332-06020¥350

main95332-06020iRX3#,TX30¥350197904-198008

L=200(*H,L=140)

sub95333-06020¥480

main95332-08018iMX3#¥350197706-197904

L=200(*H,L=180)

sub95332-08020¥460

main95332-08020iMX3#¥460197904-198008

L=200(*H,L=170)

sub95333-08020¥320

77241BHOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)

main95331-06022iRX35¥320197612-197706

*H,L=220

sub95332-06022¥340

main95331-06024iRX30¥340197612-197706

*H,L=240

sub95332-06024¥390

main95331-08022iMX36¥380197612-197706

*H,L=220

sub95332-08022¥470

main95331-08024iMX32¥470197612-197706

*H,L=240

sub95332-08024¥480

main95332-06022iRX35¥340197706-197804

L=300(*H,L=220),L=220

sub95332-06030¥590

main95332-06024iRX30¥390197706-197904

L=300(*H,L=240)

sub95332-06030¥590

main95332-06030iRX3#,TX30¥590197904-198008

L=300(*H,L=240)

sub95333-06030¥580

main95332-08022iMX36¥470197706-197804

L=300(*H,L=220)

sub95333-08030¥660

main95332-08024iMX3#¥480197706-197904

L=300(*H,L=240)

sub95332-08030¥480

main95332-08030iMX3#¥480197904-198008

L=300(*H,L=240)

sub95333-08030¥660

77252PROTECTOR, FUEL TUBE

main77266-22020iMX3#¥2,220197612-198008

FOR REAR

main77266-22030iRX3#,TX30197612-198008

FOR REAR

main77267-22010iMX3#197612-198008

FOR FRONT

main77267-22020iRX3#,TX30197612-198008

FOR FRONT

77254TUBE, FUEL EMISSION, NO.1

main77227-22030iMX32,RX30,TX30..EUR,GEN,SA197612-198008

main77261-22020iMX32..ARL197612-197908

main77261-22021iMX32..ARL197908-198008

main77261-91603iMX36197612-198008

77254AHOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)

main95331-06007iRX30197612-197706

*H,L=70

main95331-06009iRX30197612-197706

*H,L=90

main95331-06017iMX3#197612-197706

*H,L=170

main95332-06007iMX32,RX30..EUR,GEN,SA¥180197706-197904

L=100(*H,L=70)

sub95332-06010¥300

main95332-06009iMX32,RX30..EUR,GEN,SA¥220197706-197904

L=100(*H,L=90)

sub95332-06010¥300

main95332-06010iMX32,RX30,TX30..EUR,GEN,SA¥300197904-198008

L=100(*H,L=90)

sub95333-06010¥300

main95332-06017iMX32¥370197706-197808

L=200(*H,L=170)

sub95332-06020¥350

main95332-06020iMX3#..ARL¥350197904-198008

L=200(*H,L=170)

sub95333-06020¥480

77254BHOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)

main95331-06016iMX32,RX30197612-197706

*H,L=160

main95332-06016iMX32,RX30¥330197706-197903

L=200(*H,L=160)

sub95332-06020¥350

main95332-06017iMX32,RX30¥370197903-197904

L=200(*H,L=170)

sub95332-06020¥350

main95332-06020iMX32,RX30,TX30¥350197904-198008

L=200(*H,L=170)

sub95333-06020¥480

77295SHIELD, FUEL FILLER PIPE

main77291-22010iMX32,RX30¥360197612-198008

FOR LOWER

main77291-22011iMX32,RX30,TX30..SED197908-198008

FOR LOWER

main77292-22010iMX32,RX30197612-198008

FOR UPPER

main77292-22011iMX32,RX30,TX30..SED197908-198008

FOR UPPER

77295APLATE, FUEL FILLER PIPE SHIELD SUPPORT

main77294-22010iMX32,RX30197612-198008

77308COVER SUB-ASSY, FUEL INLET BOX

main77350-22010iMX32,RX30197612-197808

main77350-22011iMX32,RX30197808-198008

main77350-91600iMX36,RX35¥3,770197612-197808

sub77350-91601

main77350-91601iMX36,RX35197808-198008

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-03001iMX3#,RX3#¥220197612-197907

main90541-08003iMX3#,RX3#,TX30¥90197907-198008

77387RING, FUEL INLET BOX

main77391-14010iMX32,RX30,TX30..SED¥250197908-198008

77611BAND, FUEL TANK

main77601-22020iMX32,RX30,TX30¥3,510197612-198008

FOR FRONT RH.

sub77601-22050¥3,480

main77602-22030iMX32,RX30,TX30¥2,480197612-198008

FOR FRONT LH.

sub77602-22060¥2,490

main77603-22020iMX32,RX30,TX30197612-198008

FOR REAR

77701TVALVE, CHECK (FOR MAIN FUEL TANK)

main90917-10020iMX32,RX3#,TX30..EUR,GEN,SA¥1,580197612-198008

8401

9011910086

main90119-10086¥210

9015950021

main90159-50021¥130

9017010006

main90170-10006¥130

9046024002

main90460-24002¥160

9046063001

main90460-63001¥260

9046108091

main90461-08091

9046110076

main90461-10076¥140

9046114010

main90461-14010¥190

9046114011

main90461-14011¥190

9046114012

main90461-14012¥190

9048001024

main90480-01024¥220

9048001031

main90480-01031¥280

9048001039

main90480-01039¥260

9048009203

main90480-09203

9151140412

main91511-40412¥180

9165140614

main91651-40614¥160

9165640618

main91656-40618¥120

9166160818

main91661-60818¥130

9166160822

main91661-60822¥120

9166660820

main91666-60820¥170

9338515014

main93385-15014¥110

9411051000

main94110-51000¥130

9451101000

main94511-01000¥110

9453101000

main94531-01000¥90

9461111001

main94611-11001¥80

9461211001

main94612-11001¥60

9613230600

main96132-30600¥200

9613230800

main96132-30800¥200

60 parts on this diagram · 5 diagrams in section
