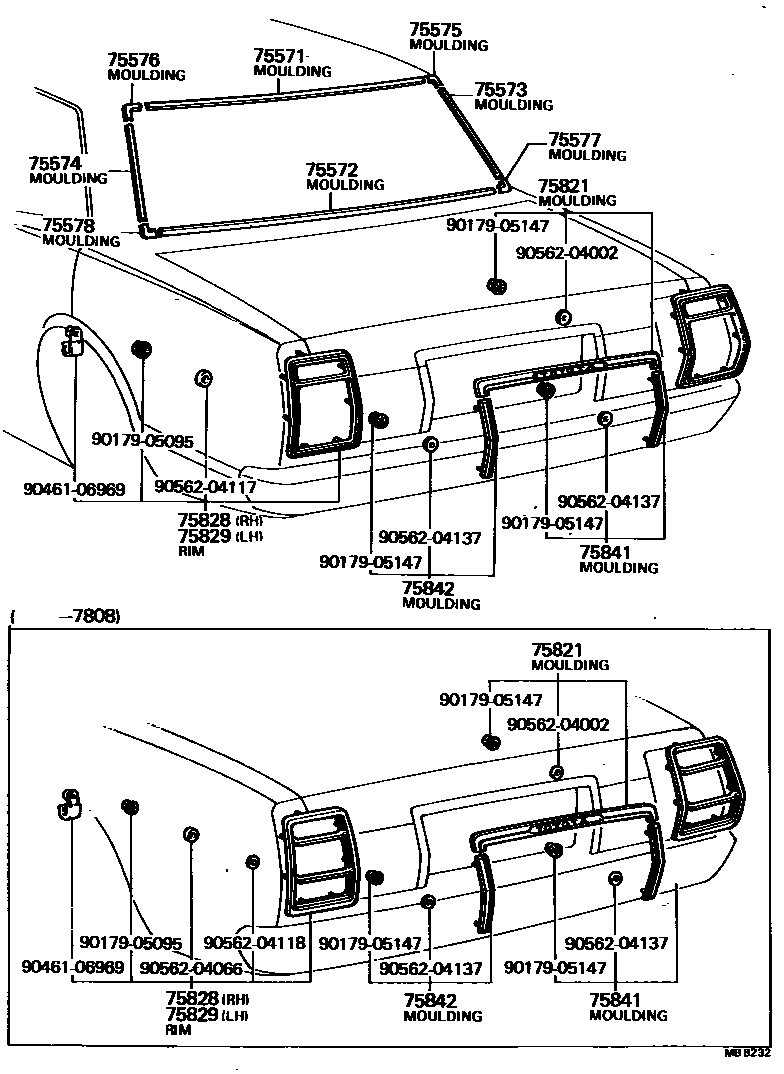

REAR MOULDING

0001 1 0002 1 0003 1

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75571-22041iRX30,TX30..STD197612-198008

main75571-22050iMX32,RX30..SED..(DLX,GL,SDX)197612-198008

main75571-95801iRX30..HT197612-198008

75572MOULDING, BACK WINDOW, LOWER

main75575-22021iRX30,TX30..STD197612-198008

main75575-22030iMX32,RX30..SED..(DLX,GL,SDX)197612-198008

main75575-91603iMX36,RX35..DLX197612-198008

sub75575-91604

75573MOULDING, BACK WINDOW SIDE, RH

main75573-22041iRX30,TX30..STD197612-198008

main75573-22050iMX32,RX30..SED..(DLX,GL,SDX)197612-198008

main75573-91604iMX36,RX35..DLX197612-198008

sub75573-91605

main75573-95801iRX30..HT197612-198008

75574MOULDING, BACK WINDOW SIDE, LH

main75574-22020iRX30,TX30..STD197612-198008

main75574-22030iMX32,RX30..SED..(DLX,GL,SDX)197612-198008

main75574-91603iMX36,RX35..DLX197612-198008

sub75574-91604

main75574-95801iRX30..HT197612-198008

75575MOULDING, BACK WINDOW CORNER, UPPER RH

main75581-22010iMX32,RX30..SED..(DLX,GL,SDX)197612-198008

main75581-22020iRX30,TX30..STD197612-198008

main75581-95801iRX30..HT197612-198008

75576MOULDING, BACK WINDOW CORNER, UPPER LH

main75581-22020iRX30,TX30..STD197612-198008

main75581-95801iRX30..HT197612-198008

main75582-22010iMX32,RX30..SED..(DLX,GL,SDX)197612-198008

75577MOULDING, BACK WINDOW CORNER, LOWER RH

main75583-22010iMX32,RX30..SED..(DLX,GL,SDX)197612-198008

main75583-22020iRX30,TX30..STD197612-198008

main75583-91600iMX36,RX35..DLX197612-198008

sub75583-91601

75578MOULDING, BACK WINDOW CORNER, LOWER LH

main75583-22020iRX30,TX30..STD197612-198008

main75583-91600iMX36,RX35..DLX197612-198008

sub75583-91601

main75584-22010iMX32,RX30..SED..(DLX,GL,SDX)197612-198008

75821MOULDING, LUGGAGE COMPARTMENT DOOR BACK

main75801-29035iMX32,RX30,TX30197612-198008

75828RIM, REAR COMBINATION LAMP OUTER, RH

main75901-29015iMX32,RX30..SED197612-197808

main75901-29045iRX30..HT197808-198008

main75901-29055iMX32,RX30,TX30..SED197808-198008

main75901-95890iRX30..HT197612-197808

75829RIM, REAR COMBINATION LAMP OUTER, LH

main75902-29015iMX32,RX30..SED197612-197808

main75902-29045iRX30..HT197808-198008

main75902-29055iMX32,RX30,TX30..SED197808-198008

main75902-95890iRX30..HT197612-197808

75841MOULDING, BODY LOWER BACK PANEL, RH

main75803-29075iMX32,RX30,TX30..SED197612-198008

main75803-95890iRX30..HT197612-198008

75842MOULDING, BODY LOWER BACK PANEL, LH

main75804-29085iMX32,RX30,TX30..SED197612-198008

main75804-95890iRX30..HT197612-198008

9017905095

main90179-05095

9017905147

main90179-05147

9046106969

main90461-06969

9056204002

main90562-04002

9056204066

main90562-04066

9056204117

main90562-04117

9056204118

main90562-04118

9056204137

main90562-04137

21 parts on this diagram · 3 diagrams in section
