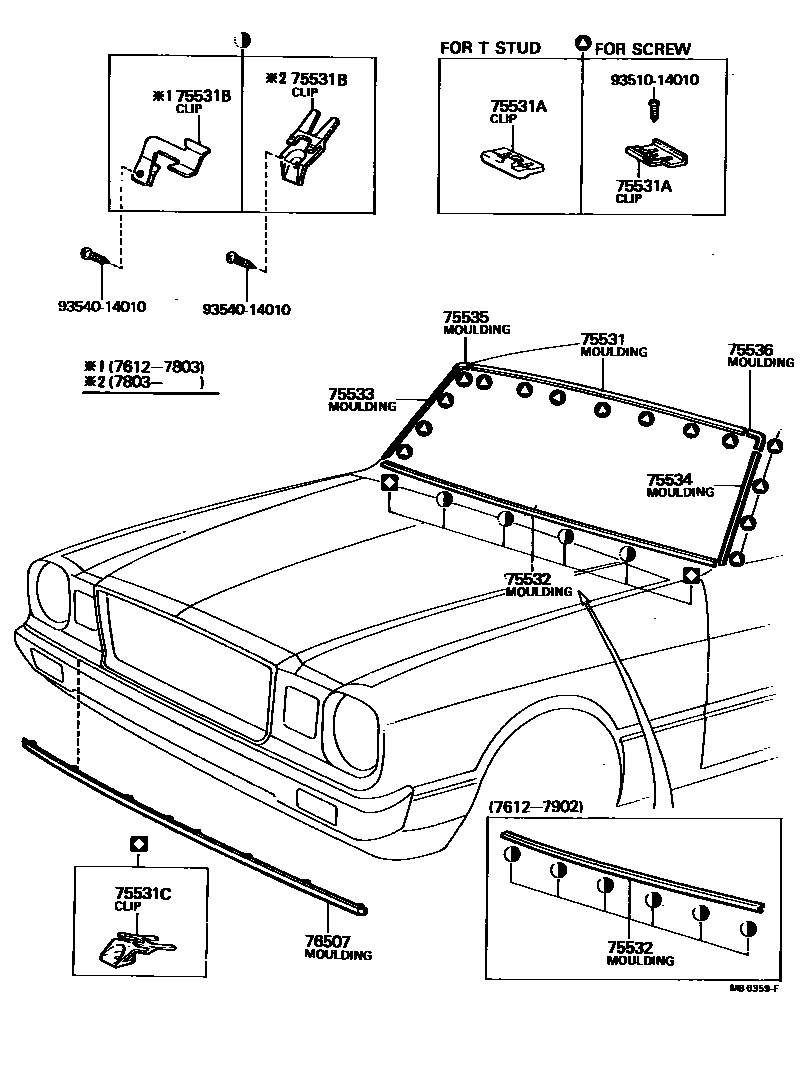

FRONT MOULDING

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-22050iMX3#,RX3#,TX30..SED,WG197612-198008

main75531-95800iRX30..HT197612-198008

75531ACLIP, WINDSHIELD MOULDING SET, NO.1

main75545-30021iMX3#,RX3#,TX30197612-198008

FOR T STUD

main75545-30040iMX3#,RX3#,TX30197612-198008

FOR SCREW

75531BCLIP, WINDSHIELD MOULDING SET, NO.2

main75546-22020iMX3#,RX3#197612-197803

sub75546-22021

main75546-22021iMX3#,RX3#197803-198008

75531CCLIP, WINDSHIELD MOULDING SET, NO.3

main75547-22010iMX3#,RX3#,TX30197902-198008

75532MOULDING, WINDSHIELD, LOWER

main75504-22010iMX3#,RX3#,TX30197612-198008

75533MOULDING, WINDSHIELD, OUTSIDE RH

main75533-22070iMX3#,RX3#,TX30..SED,WG197612-198008

main75533-95800iRX30..HT197612-198008

75534MOULDING, WINDSHIELD, OUTSIDE LH

main75534-22060iMX3#,RX3#,TX30..SED,WG197612-198008

main75534-95800iRX30..HT197612-198008

75535MOULDING, WINDSHIELD CORNER, UPPER RH

main75541-22010iMX3#,RX3#,TX30..SED,WG197612-198008

main75541-95800iRX30..HT197612-198008

75536MOULDING, WINDSHIELD CORNER, UPPER LH

main75542-22010iMX3#,RX3#,TX30..SED,WG197612-198008

main75542-95800iRX30..HT197612-198008

76507MOULDING SUB-ASSY, FRONT END PANEL

main76507-22010iRX30..GL..GEN197808-198008

9351014010

main93510-14010

9354014010

main93540-14010

12 parts on this diagram · 1 diagram in section
