BACK DOOR PANEL & GLASS

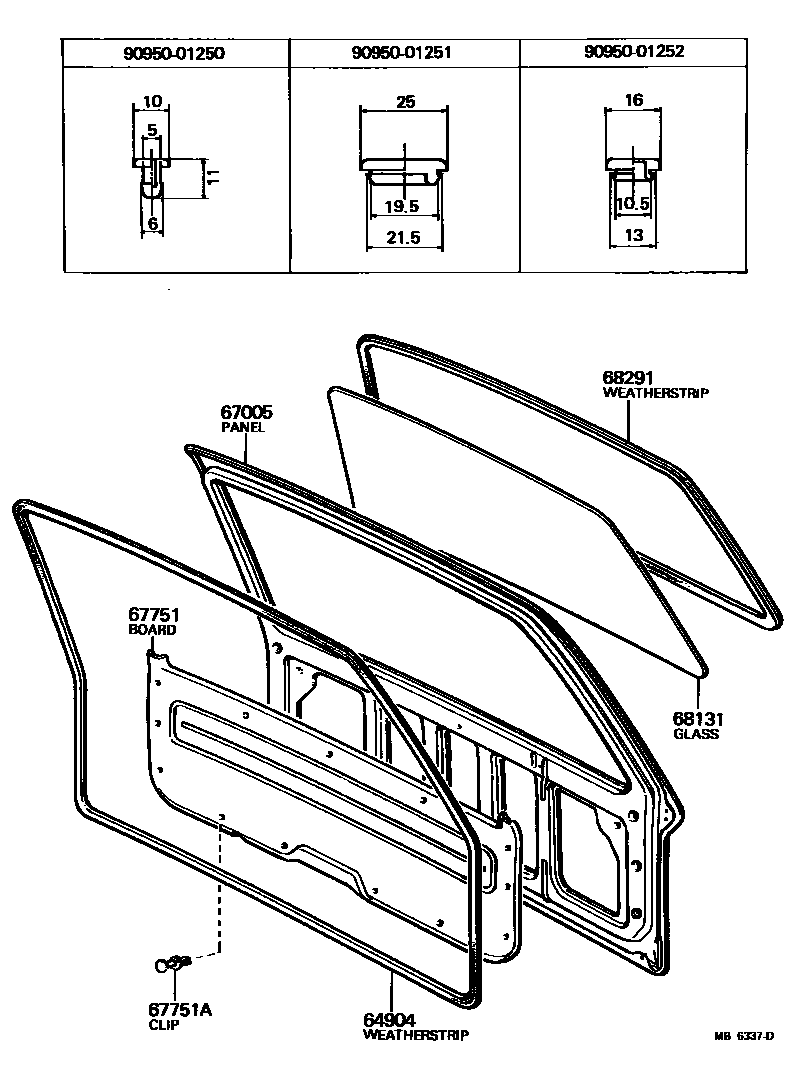

Parts diagram
64904WEATHERSTRIP SUB-ASSY, BACK DOOR
main67881-91605i197612-198008
67005PANEL SUB-ASSY, BACK DOOR
main67005-91661i197612-197808
main67005-91662i197612-197808
W/REAR WIPER
main67005-91666i197801-197808
sub67005-91661
main67005-91673i197808-198008
main67005-91674i197808-198008
W/REAR WIPER
main67005-91681i197802-197808
W/REAR WIPER
sub67005-91662
67751BOARD, BACK DOOR TRIM
main67751-91606-01i197612-197808
BLACK,BLACK,TRIM2#
sub67750-91602
sub67751-91607
main67751-91606-03i197612-197808
GRAY,GRAY,TRIM1#
sub67750-91602
sub67751-91607
main67751-91606-05i197612-197808
BEIGE,BEIGE,TRIM4#
sub67750-91602
sub67751-91607
main67751-91607-01i197808-198008
BLACK,BLACK,TRIM2#
sub67750-91601
main67751-91607-02i197808-198008
DARK WINE,RED/MAROON,TRIM3#
sub67750-91601
main67751-91607-05i197808-198008
BEIGE,BEIGE,TRIM4#
sub67750-91601
67751ACLIP(FOR BACK DOOR TRIM BOARD)
main90467-08114-02i197808-198008
DARK WINE,RED/MAROON,TRIM3#
sub90467-08114
main90467-08114-11i197612-198008
BLACK,BLACK,TRIM2#
sub90467-08114
main90467-08114-25i197612-198008
BEIGE,BEIGE,TRIM4#
sub90467-08114
main90467-08114-53i197612-197808
GRAY,GRAY,TRIM1#
sub90467-08114
68131GLASS, BACK DOOR
main68105-91612i197612-198008
ELECT.TN.TP.T=4.0
sub68105-91621
main68105-91614i197612-198008
ELECT.TP.T=4.0
sub68105-91621
main68105-91615i197612-198008
ARCTIC,ELECT.TN.TP.T=4.0
main68131-91620i197612-198008
TP.T=4.0
sub68105-91621
main68131-91621i197612-198008
TN.TP.T=4.0
sub68105-91621
68291WEATHERSTRIP, BACK DOOR GLASS
main68291-91607i197612-198008
main68291-91608i197612-198008
sub68291-91609
9095001250
main90950-01250
9095001251
main90950-01251
9095001252
main90950-01252

9 parts on this diagram · 1 diagram in section
