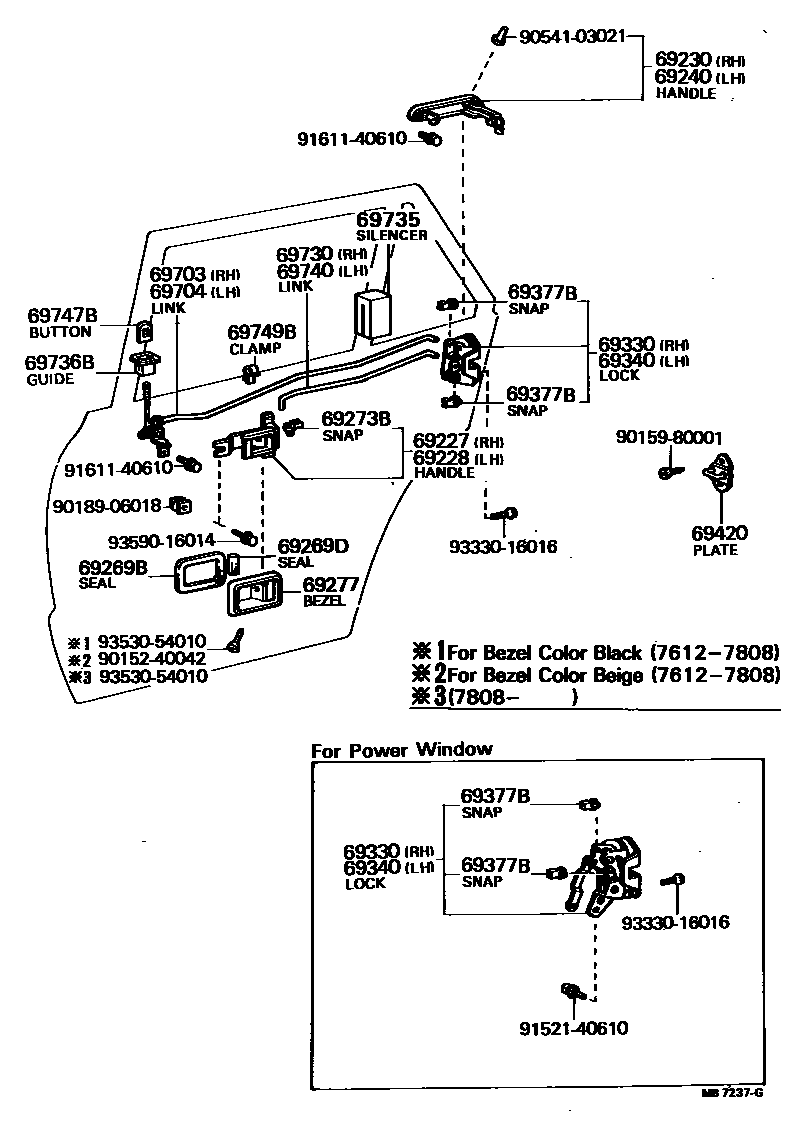

REAR DOOR LOCK & HANDLE

69227HANDLE, REAR DOOR INSIDE, RH

main69207-20030iRX35..3H..GEN;RX35..3FC,4F,5F;MX3#,RX30,TX30..SED,WG¥2,110197612-198008

69228HANDLE, REAR DOOR INSIDE, LH

main69208-20020iRX35..3H..GEN;RX35..3FC,4F,5F;MX3#,RX30,TX30..SED,WG¥2,110197612-198008

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-22030iMX3#,RX3#,TX30..SED,WG197612-198008

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-22030iMX3#,RX3#,TX30..SED,WG197612-198008

69269BSEAL, DOOR INSIDE HANDLE NO.1(FOR REAR DOOR)

main69269-12010iMX3#,RX3#,TX30..SED,WG197612-198008

69269DSEAL, DOOR INSIDE HANDLE NO.2(FOR REAR DOOR)

main69289-12010iMX3#,RX3#,TX30..SED,WG¥210197612-198008

69273BSNAP, DOOR INSIDE HANDLE ROD(FOR REAR DOOR)

main69273-30020iMX3#,RX3#,TX30..SED,WG¥260197612-198008

69277BEZEL, REAR DOOR INSIDE HANDLE

main69276-30020iMX32..SA197707-197808

main69277-22030-01iMX3#,RX3#,TX30..SED,WG197808-198008

BLACK,BLACK,TRIM2#

main69277-22030-01iMX3#,RX3#..(SED,WG)..(DLX,STD)197612-197808

BLACK,BLACK,TRIM1#,2#

main69277-22030-02iMX3#,RX3#,TX30..SED,WG197808-198008

DARK WINE,RED/MAROON,TRIM3#

main69277-22030-05iMX3#,RX3#..(SED,WG)..(DLX,STD)197612-198008

BEIGE,BEIGE,TRIM4#

69330LOCK ASSY, REAR DOOR, RH

main69330-22030iMX3#,RX3#..SED,WG197612-197808

main69330-22031iMX3#,RX3#,TX30..SED,WG¥7,000197808-198008

main69330-22041iRX30..SED..GL..(EUR,GEN)197808-198008

FOR POWER WINDOW

main69330-22041iRX30..SED..LHD..4F..DLX..GEN197908-198008

FOR EXTRA INTERIOR

69340LOCK ASSY, REAR DOOR, LH

main69340-22030iMX3#,RX3#..SED,WG197612-197808

main69340-22031iMX3#,RX3#,TX30..SED,WG197808-198008

main69340-22041iRX30..SED..GL..(EUR,GEN)197808-198008

FOR POWER WINDOW

main69340-22041iRX30..SED..LHD..4F..DLX..GEN197908-198008

FOR EXTRA INTERIOR

69377BSNAP, REAR DOOR LOCK CONTROL ROD

main69377-30020iMX3#,RX3#,TX30..SED,WG¥270197612-198008

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69410-22020iMX3#,RX3#,TX30..SED,WG¥1,090197612-198008

sub69410-89103¥1,050

69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH

main69770-22010iMX3#,RX3#,TX30..SED,WG197612-198008

69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH

main69780-22010iMX3#,RX3#,TX30..SED,WG197612-198008

69730LINK ASSY, REAR DOOR OPEN CONTROL, RH

main69713-22010iMX3#,RX3#,TX30..SED,WG197612-198008

69735SILENCER, REAR DOOR LOCK LINK

main69759-30021iMX3#,RX3#,TX30..SED,WG¥250197612-198008

69736BGUIDE, REAR DOOR LOCK LINK

main69736-22020iMX3#,RX3#,TX30..SED,WG¥410197708-198008

sub69736-22021¥500

69740LINK ASSY, REAR DOOR OPEN CONTROL, LH

main69714-22010iMX3#,RX3#,TX30..SED,WG197612-198008

69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)

main69741-20020iMX3#,RX3#..SED,WG¥370197612-197808

sub69741-32010¥340

main69741-20020-01iMX3#,RX3#,TX30..SED,WG197808-198008

BLACK,BLACK,TRIM2#

sub69741-20020¥370

sub69741-32010¥340

main69741-20020-02iMX3#,RX3#,TX30..SED,WG197808-198008

DARK WINE,RED/MAROON,TRIM3#

sub69741-20020¥370

sub69741-32010¥340

main69741-20020-05iMX3#,RX3#,TX30..SED,WG197808-198008

BEIGE,BEIGE,TRIM4#

sub69741-20020¥370

sub69741-32010¥340

69749BCLAMP, REAR DOOR LOCK LINK

main69749-12010iMX3#,RX3#,TX30..SED,WG¥140197612-198008

9015240042

main90152-40042¥170

9015980001

main90159-80001¥120

9018906018

main90189-06018¥80

9054103021

main90541-03021¥310

9152140610

main91521-40610¥110

9161140610

main91611-40610¥140

9333016016

main93330-16016¥140

9353054010

main93530-54010¥70

9359016014

main93590-16014¥280

29 parts on this diagram · 1 diagram in section
