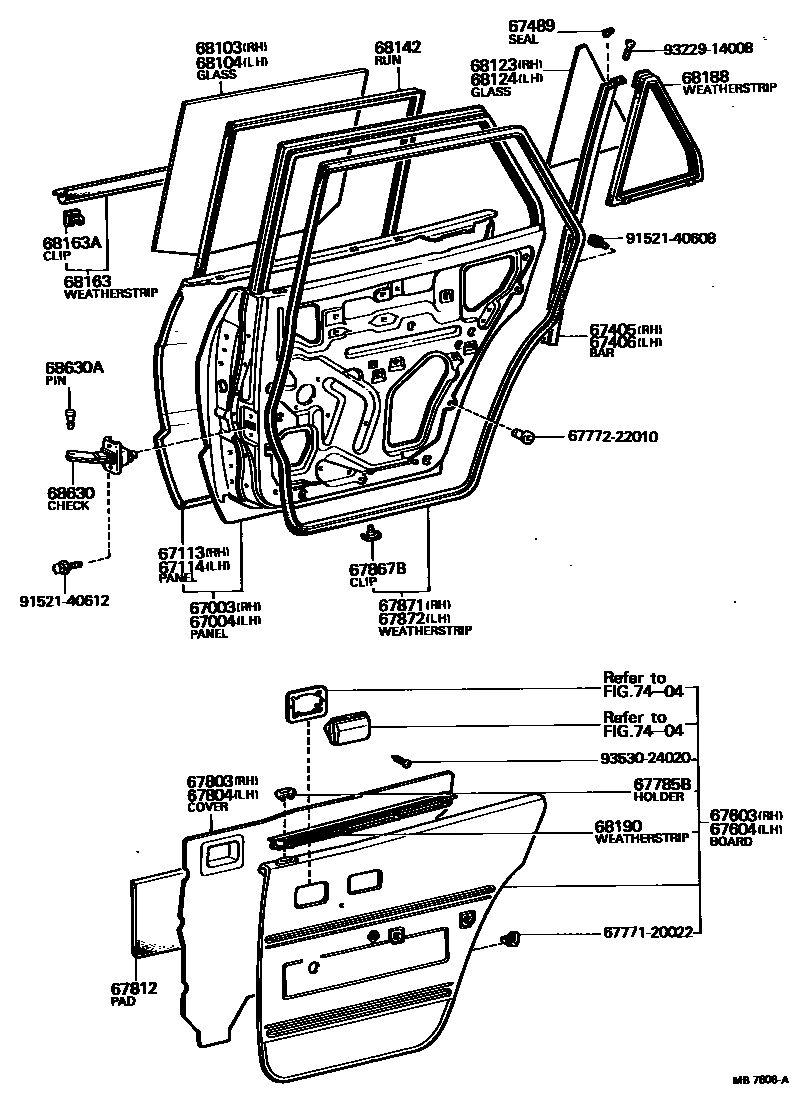

REAR DOOR PANEL & GLASS

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-22070iMX32,RX30..SED..(EUR,GEN,SA)¥68,300197612-197808

sub67003-22071

sub90950-01229¥200

main67003-22071iMX32,RX30,TX30..SED..(EUR,GEN,SA)197808-198008

main67003-22081iRX30..SED..GL..(EUR,GEN)¥68,300197808-198008

FOR POWER WINDOW

sub67003-22071

main67003-22081iRX30..SED..LHD..4F..DLX..GEN¥68,300197908-198008

FOR EXTRA INTERIOR

sub67003-22071

main67003-22090iMX32..ARL¥68,300197612-197808

sub67003-22091

sub90950-01229¥200

main67003-22091iMX32..ARL197808-198008

main67003-91614iRX35¥68,200197612-197808

sub67003-91619¥68,300

sub67407-22030

main67003-91617iMX36197612-197808

main67003-91619iRX35¥68,300197808-198008

main67003-91621iMX36197808-198008

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-22080iMX32,RX30..SED..(EUR,GEN,SA)¥68,300197612-197808

sub67004-22081

sub90950-01229¥200

main67004-22081iMX32,RX30,TX30..SED..(EUR,GEN,SA)197808-198008

main67004-22091iRX30..SED..GL..(EUR,GEN)¥68,300197808-198008

FOR POWER WINDOW

sub67004-22081

main67004-22091iRX30..SED..LHD..4F..DLX..GEN¥68,300197908-198008

FOR EXTRA INTERIOR

sub67004-22081

main67004-22100iMX32..ARL¥68,300197612-197808

sub67004-22101

sub90950-01229¥200

main67004-22101iMX32..ARL197808-198008

main67004-91614iRX35¥68,200197612-197808

sub67004-91619¥68,300

sub67408-22030

main67004-91617iMX36197612-197808

main67004-91619iRX35¥68,300197808-198008

main67004-91621iMX36197808-198008

67113PANEL, REAR DOOR, OUTER RH

main67113-22050iMX3#,RX3#,TX30..SED,WG197612-198008

67114PANEL, REAR DOOR, OUTER LH

main67114-22050iMX3#,RX3#,TX30..SED,WG197612-198008

67405BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-22030iMX32,RX30..SED197612-198008

main67407-91600iMX36,RX35197612-197808

67406BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-22030iMX32,RX30..SED197612-198008

main67408-91600iMX36,RX35197612-197808

67489SEAL, REAR DOOR DIVISION BAR

main67481-20010iMX3#,RX3#,TX30..SED,WG197612-198008

FOR RH.

main67482-20010iMX3#,RX3#,TX30..SED,WG197612-198008

FOR LH.

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-22240-01iRX30..5F..GL..SA;MX32,RX30..SED..(DLX,SDX)197612-198008

BLACK,BLACK,TRIM2#

main67630-22240-02iRX30..5F..GL..SA;MX32,RX30..SED..(DLX,SDX)197808-198008

DARK WINE,RED/MAROON,TRIM3#

main67630-22240-03iMX32,RX30..SED..(DLX,SDX)197612-197808

GRAY,GRAY,TRIM1#

main67630-22240-05iRX30..5F..GL..SA;MX32,RX30..SED..(DLX,SDX)197612-198008

BEIGE,BEIGE,TRIM4#

main67630-22251-01iRX30..SED..GL..(EUR,GEN)197808-198008

FOR POWER WINDOW,BLACK,BLACK,TRIM2#

main67630-22251-02iRX30..SED..GL..(EUR,GEN)197808-198008

FOR POWER WINDOW,DARK WINE,RED/MAROON,TRIM3#

main67630-22251-05iRX30..SED..GL..(EUR,GEN)197808-198008

FOR POWER WINDOW,BEIGE,BEIGE,TRIM4#

main67630-22261-01iRX30..SED..GL..(EUR,GEN)197808-198008

BLACK,BLACK,TRIM2#

main67630-22261-02iRX30..SED..GL..(EUR,GEN)197808-198008

DARK WINE,RED/MAROON,TRIM3#

main67630-22261-05iRX30..SED..GL..(EUR,GEN)197808-198008

BEIGE,BEIGE,TRIM4#

main67630-22280-01iRX30,TX30..STD;RX35..4F..STD..EUG;RX35..STD..(GEN,SA)197612-198008

BLACK,BLACK,TRIM2#

main67630-22280-02iRX30,TX30..STD197808-198008

DARK WINE,RED/MAROON,TRIM3#

main67630-22280-03iRX30..STD197612-197808

GRAY,GRAY,TRIM1#

main67630-22280-05iRX30,TX30..STD;RX35..4F..STD..EUG;RX35..STD..(GEN,SA)197612-198008

BEIGE,BEIGE,TRIM4#

main67630-22470-01iRX30..SED..LHD..4F..DLX..GEN197908-198008

FOR EXTRA INTERIOR,BLACK,BLACK,TRIM2#

main67630-22470-02iRX30..SED..LHD..4F..DLX..GEN197908-198008

FOR EXTRA INTERIOR,DARK WINE,RED/MAROON,TRIM3#

main67630-22470-05iRX30..SED..LHD..4F..DLX..GEN197908-198008

FOR EXTRA INTERIOR,BEIGE,BEIGE,TRIM4#

main67630-91607-01iMX36,RX35..DLX197612-197808

BLACK,BLACK,TRIM2#

sub67630-91613

main67630-91607-03iMX36,RX35..DLX197612-197808

GRAY,GRAY,TRIM1#

sub67630-91613

main67630-91607-05iMX36,RX35..DLX197612-197808

BEIGE,BEIGE,TRIM4#

sub67630-91613

main67630-91612-01iRX35..3H..EUG197704-197808

BLACK,BLACK,TRIM2#

main67630-91612-05iRX35..3H..EUG197704-197808

BEIGE,BEIGE,TRIM4#

main67630-91613-01iMX36,RX35..DLX197808-198008

BLACK,BLACK,TRIM2#

main67630-91613-02iMX36,RX35..DLX197808-198008

DARK WINE,RED/MAROON,TRIM3#

main67630-91613-05iMX36,RX35..DLX197808-198008

BEIGE,BEIGE,TRIM4#

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-22220-01iRX30,TX30..STD;RX35..4F..STD..EUG;RX35..STD..(GEN,SA)197612-198008

BLACK,BLACK,TRIM2#

main67640-22220-02iRX30,TX30..STD197808-198008

DARK WINE,RED/MAROON,TRIM3#

main67640-22220-03iRX30..STD197612-197808

GRAY,GRAY,TRIM1#

main67640-22220-05iRX30,TX30..STD;RX35..4F..STD..EUG;RX35..STD..(GEN,SA)197612-198008

BEIGE,BEIGE,TRIM4#

main67640-22250-01iRX30..5F..GL..SA;MX32,RX30..SED..(DLX,SDX)197612-198008

BLACK,BLACK,TRIM2#

main67640-22250-02iRX30..5F..GL..SA;MX32,RX30..SED..(DLX,SDX)197808-198008

DARK WINE,RED/MAROON,TRIM3#

main67640-22250-03iMX32,RX30..SED..(DLX,SDX)197612-197808

GRAY,GRAY,TRIM1#

main67640-22250-05iRX30..5F..GL..SA;MX32,RX30..SED..(DLX,SDX)197612-198008

BEIGE,BEIGE,TRIM4#

main67640-22261-01iRX30..SED..GL..(EUR,GEN)197808-198008

FOR POWER WINDOW,BLACK,BLACK,TRIM2#

main67640-22261-02iRX30..SED..GL..(EUR,GEN)197808-198008

FOR POWER WINDOW,DARK WINE,RED/MAROON,TRIM3#

main67640-22261-05iRX30..SED..GL..(EUR,GEN)197808-198008

FOR POWER WINDOW,BEIGE,BEIGE,TRIM4#

main67640-22301-01iRX30..SED..GL..(EUR,GEN)197808-198008

BLACK,BLACK,TRIM2#

main67640-22301-02iRX30..SED..GL..(EUR,GEN)197808-198008

DARK WINE,RED/MAROON,TRIM3#

main67640-22301-05iRX30..SED..GL..(EUR,GEN)197808-198008

BEIGE,BEIGE,TRIM4#

main67640-22470-01iRX30..SED..LHD..4F..DLX..GEN197908-198008

FOR EXTRA INTERIOR,BLACK,BLACK,TRIM2#

main67640-22470-02iRX30..SED..LHD..4F..DLX..GEN197908-198008

FOR EXTRA INTERIOR,DARK WINE,RED/MAROON,TRIM3#

main67640-22470-05iRX30..SED..LHD..4F..DLX..GEN197908-198008

FOR EXTRA INTERIOR,BEIGE,BEIGE,TRIM4#

main67640-91606-01iMX36,RX35..DLX197612-197808

BLACK,BLACK,TRIM2#

sub67640-91612

main67640-91606-03iMX36,RX35..DLX197612-197808

GRAY,GRAY,TRIM1#

sub67640-91612

main67640-91606-05iMX36,RX35..DLX197612-197808

BEIGE,BEIGE,TRIM4#

sub67640-91612

main67640-91611-01iRX35..3H..EUG197704-197808

BLACK,BLACK,TRIM2#

main67640-91611-05iRX35..3H..EUG197704-197808

BEIGE,BEIGE,TRIM4#

main67640-91612-01iMX36,RX35..DLX197808-198008

BLACK,BLACK,TRIM2#

main67640-91612-02iMX36,RX35..DLX197808-198008

DARK WINE,RED/MAROON,TRIM3#

main67640-91612-05iMX36,RX35..DLX197808-198008

BEIGE,BEIGE,TRIM4#

67785BHOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)

main69751-20040iMX3#,RX3#,TX30..SED,WG¥350197612-198008

67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH

main67841-22080iMX3#,RX3#,TX30..SED,WG197612-198008

67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH

main67841-22080iMX3#,RX3#,TX30..SED,WG197612-198008

67812PAD, REAR DOOR SILENCER

main67812-20050iMX3#,RX3#,TX30..SED,WG¥620197612-198008

sub67812-12010¥640

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main67868-30040iMX3#,RX3#,TX30..SED,WG¥110197612-198008

67871WEATHERSTRIP, REAR DOOR, RH

main67871-22040iMX32,RX30,TX30..SED197612-198008

main67871-91606iMX36,RX35197612-198008

67872WEATHERSTRIP, REAR DOOR, LH

main67872-22040iMX32,RX30,TX30..SED197612-198008

main67872-91606iMX36,RX35197612-198008

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-22050iRX30..STD¥6,200197612-198008

TP.T=4.0

sub68113-22060¥6,700

main68113-22060iRX30..SED..(EUR,GEN)¥6,700197612-198008

TN.TP.T=4.0

main68113-91607iRX35..STD¥6,000197612-198008

TP.T=4.0

sub68113-91608¥6,700

main68113-91608iRX35..EUR,GEN¥6,700197612-198008

TN.TP.T=4.0

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-22050iRX30,TX30..STD¥6,200197612-198008

TP.T=4.0

sub68114-22060¥6,700

main68114-22060iMX32,RX30..SED..(ARL,EUR,GEN)¥6,700197612-198008

TN.TP.T=4.0

main68114-91607iRX35..4F..STD..EUG;RX35..STD..(GEN,SA)¥6,000197612-198008

TP.T=4.0

sub68114-91608¥6,700

main68114-91608iMX36,RX35..ARL,EUR,GEN¥6,700197612-198008

TN.TP.T=4.0

68123GLASS, REAR DOOR WINDOW, RH

main68123-22060iRX30..STD¥2,030197612-198008

TP.T=4.0

sub68123-22070¥2,590

main68123-22070iMX32,RX30..SED..(ARL,EUR,GEN)¥2,590197612-198008

TN.TP.T=4.0

main68123-91607iRX35..STD¥2,100197612-198008

TP.T=4.0

sub68123-91608¥2,330

main68123-91608iRX35..EUR,GEN¥2,330197612-198008

TN.TP.T=4.0

68124GLASS, REAR DOOR WINDOW, LH

main68124-22060iRX30..STD¥2,030197612-198008

TP.T=4.0

sub68124-22070¥2,590

main68124-22070iRX30..SED..(EUR,GEN)¥2,590197612-198008

TN.TP.T=4.0

main68124-91607iRX35..STD¥2,100197612-198008

TP.T=4.0

sub68124-91608¥2,330

main68124-91608iRX35..EUR,GEN¥2,330197612-198008

TN.TP.T=4.0

68142RUN, REAR DOOR GLASS

main68142-22030iMX32,RX30,TX30..SED¥2,170197612-198008

main68142-91605iMX36,RX35197612-198008

68163WEATHERSTRIP, REAR DOOR GLASS, OUTER

main68180-22010iRX3#,TX30..STD197612-198008

FOR RH.

main68230-22010iRX3#,TX30..STD197612-198008

FOR LH.

68163ACLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)

main68211-10020iRX3#,TX30..STD¥270197612-198008

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-22030iMX32,RX30,TX30..SED197612-198008

FOR RH.

main68188-91605iMX36,RX35¥3,000197612-198008

main68189-22020iMX32,RX30,TX30..SED197612-198008

FOR LH.

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68190-22040iMX3#,RX3#,TX30..SED,WG197612-198008

FOR RH.

main68240-22030iMX3#,RX3#,TX30..SED,WG197612-198008

FOR LH.

68630CHECK ASSY, REAR DOOR

main68630-22010iMX3#,RX3#,TX30..SED,WG197612-198008

68630APIN(FOR REAR DOOR CHECK)

main68617-22010iMX3#,RX3#,TX30..SED,WG¥300197612-198008

sub68617-12010¥280

7404

6777120022WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20022¥200

6777222010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-22010¥170

9152140608

main91521-40608¥110

9152140612

main91521-40612¥110

9322914008

main93229-14008¥70

9353024020

main93530-24020¥170

34 parts on this diagram · 1 diagram in section
