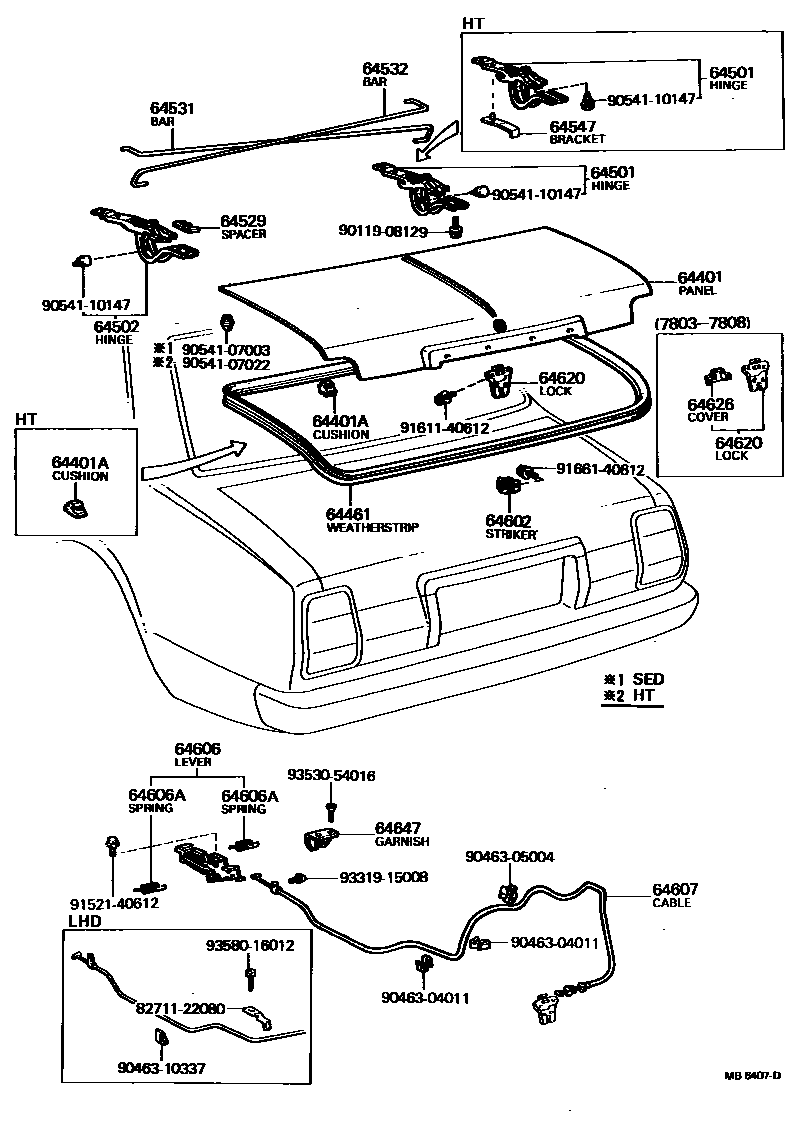

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-22090iMX32,RX30..SED197612-197808

sub64401-22110

main64401-22091iMX32,RX30,TX30..SED197808-198008

sub64401-22111

main64401-95800iRX30..HT197612-198008

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-08001×2iMX32,RX30,TX30..SED197612-198008

main90541-10003iRX30..HT197612-198008

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-22040iMX32,RX30..SED197612-197705

main64461-22041iMX32,RX30197711-197904

main64461-95800iRX30..HT197612-197705

main64461-95802iRX30..HT197904-198008

64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-22040iMX32,RX30,TX30..SED197612-198008

main64510-95800iRX30..HT197612-198008

64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-22030iMX32,RX30,TX30..SED197612-198008

main64520-95800iRX30..HT197612-198008

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-22010×4iMX32,RX30,TX30197612-198008

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-22030iMX32,RX30,TX30..SED197612-198008

sub64531-22050

main64531-95800iRX30..HT197612-198008

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-22030iMX32,RX30,TX30..SED197612-198008

sub64532-22050

main64532-95800iRX30..HT197612-198008

64547BRACKET, LUGGAGE LAMP SWITCH

main64221-95800iRX30..HT197612-198008

64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main64620-22030iMX32,RX30,TX30197612-198008

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-22020iMX32,RX30..RHD..(DLX,GL)..(ARL,EUR,GEN)197808-198008

main64606-22030iRX30..LHD..(DLX,GL)197808-198008

64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)

main90506-09004×2iMX32,RX30..(DLX,GL)..(ARL,EUR,GEN)197808-198008

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-22020iMX32,RX30..SED..RHD..(DLX,GL)..(ARL,EUR,GEN)197808-198008

main64607-22030iRX30..SED..LHD..(DLX,GL)197808-198008

main64607-95801iRX30..HT..RHD197808-198008

main64607-95802iRX30..HT..LHD197808-198008

64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-20030iRX30..HT197808-198008

W/FUEL OPENER

main64610-20040iRX30..HT..DLX197808-198008

main64610-22010iMX32,RX30..SED197612-197803

main64610-22011iMX32,RX30..SED197803-197808

main64610-22020iMX32,RX30..SED..(DLX,GL)..(ARL,EUR,GEN)197808-198008

W/FUEL OPENER

sub64610-14060

main64610-22030iRX30..5F..GL..SA;MX32,RX30,TX30..SED..(DLX,SDX,STD)197808-198008

main64610-95800iRX30..HT197612-197803

main64610-95801iRX30..HT197803-197808

64626COVER, LUGGAGE COMPARTMENT DOOR LOCK

main64613-22020iMX32,RX30197803-197808

64647GARNISH, LUGGAGE LOCK CONTROL LEVER

main64647-22011-01iMX3#,RX3#..RHD..(DLX,GL)..(ARL,EUR,GEN)197808-198008

BLACK,BLACK,TRIM2#

main64647-22011-02iMX3#,RX3#..RHD..(DLX,GL)..(ARL,EUR,GEN)197808-198008

DARK WINE,RED/MAROON,TRIM3#

main64647-22011-05iMX3#,RX3#..RHD..(DLX,GL)..(ARL,EUR,GEN)197808-198008

BEIGE,BEIGE,TRIM4#

main64648-22010-01iRX3#..LHD..(DLX,GL)197808-198008

BLACK,BLACK,TRIM2#

main64648-22010-02iRX3#..LHD..(DLX,GL)197808-198008

DARK WINE,RED/MAROON,TRIM3#

main64648-22010-05iRX3#..LHD..(DLX,GL)197808-198008

BEIGE,BEIGE,TRIM4#

8271122080WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22080

9011908129

main90119-08129

9046304011

main90463-04011

9046305004

main90463-05004

9046310337

main90463-10337

9054107003

main90541-07003

9054107022

main90541-07022

9054110147

main90541-10147

9152140612

main91521-40612

9161140612

main91611-40612

9166140612

main91661-40612

9331915008

main93319-15008

9353054016

main93530-54016

9358016012

main93580-16012

30 parts on this diagram · 1 diagram in section
