ROOF PANEL & BACK WINDOW GLASS

63101PANEL SUB-ASSY, ROOF

main63101-22060iMX32,RX30,TX30..SED197612-198008

main63101-91607iMX36,RX35197612-198008

main63101-95801iRX30..HT197612-198008

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63103-22010iMX32,RX30,TX30..SED197612-198008

sub63103-22020

main63103-91600iMX36,RX35197612-198008

main63104-95800iRX30..HT197612-198008

63104APROTECTOR, ROOF REINFORCEMENT

main63331-14010iRX3#..LHD..EUR197707-198008

FOR WEST GARMANY SPEC.

sub63331-30010

63105REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

main63141-91600iMX36,RX35197612-198008

sub63103-91600

63133FRAME, BACK WINDOW OPENING, UPPER

main63105-91602iMX36,RX35..RHD;RX35..LHD..STD;RX35..LHD..DLX..EUG;RX35..LHD..DLX..GEN197612-197808

main63105-91604iMX36;RX35..3FC,3H,5F;RX35..4F..(EUR,GEN)197612-197808

W/REAR WIPER

main63105-91605iRX35..EUR,GEN;RX35..STD..SA197808-198008

main63105-91606iRX35..DLX;RX35..STD..(EUR,GEN)197808-198008

W/REAR WIPER

main63105-91607iMX36197808-198008

64101PANEL SUB-ASSY, UPPER BACK

main64101-22070iMX32,RX30,TX30..SED197612-198008

main64101-95801iRX30..HT197612-198008

64195BRACKET, REAR SEAT BELT ANCHORAGE, RH

main64191-22010iRX30..SED..EUR197808-198008

64196BRACKET, REAR SEAT BELT ANCHORAGE, LH

main64191-22010iRX30..SED..EUR197808-198008

64221BRACE, REAR SEAT CUSHION SUPPORT

main64221-22020iMX32,RX30,TX30..SED197612-198008

64811GLASS, BACK WINDOW

main64811-22100iRX30..STD197612-198008

TP.T=4.0

sub64811-22122

main64811-22110iRX30..SED..EUG197612-198008

ELECT.TN.TP.T=4.0

main64811-22121iRX30..SED..DLX..EUG197708-197808

ELECT.TN.TP.T=4.0 W/ANTENNA

main64811-22130iRX30..SED..EUR197612-198008

ARCTIC,ELECT.TN.TP.T=4.0

main64811-22140iMX32197711-197808

ELECT.TP.T=5.0,W/ANTENNA

sub64811-22122

main64811-22150iRX30..SED..GEN197612-198008

TN.TP.T=4.0

sub64811-22110

main64811-22160iRX30..STD197612-198008

ELECT.TP.T=4.0

sub64811-22140

main64811-22170iRX30..SED..LHD..DLX..EUG197708-197808

ARCTIC ELECT.TN.TP. W/ANTENNA

main64811-95800iRX30..HT197612-198008

ELECT.TN.TP.T=4.0

main64811-95802iRX30..HT..GEN197612-198008

TN.TP.T=4.0

sub64811-95803

main64811-95803iRX30..HT..LHD..EUG197612-198008

ARCTIC,ELECT.TN.TP.T=4.0

main64811-95804iRX30..HT..EUG197708-197808

ELECT.TN.TP.T=4.0,W/ANTENNA

main64811-95805iRX30..HT..LHD..EUG197708-197808

ARCTIC,ELECT.TN.TP.W/ANTENNA

64831WEATHERSTRIP, BACK WINDOW GLASS

main64812-22020iRX30,TX30..STD197612-198008

main64812-22030iMX32,RX30..SED..(DLX,GL,SDX)197612-198008

main64812-95801iRX30..HT197612-198008

9011906010

main90119-06010

9015960046

main90159-60046

9016360001

main90163-60001

9017906164

main90179-06164

9017910015

main90179-10015

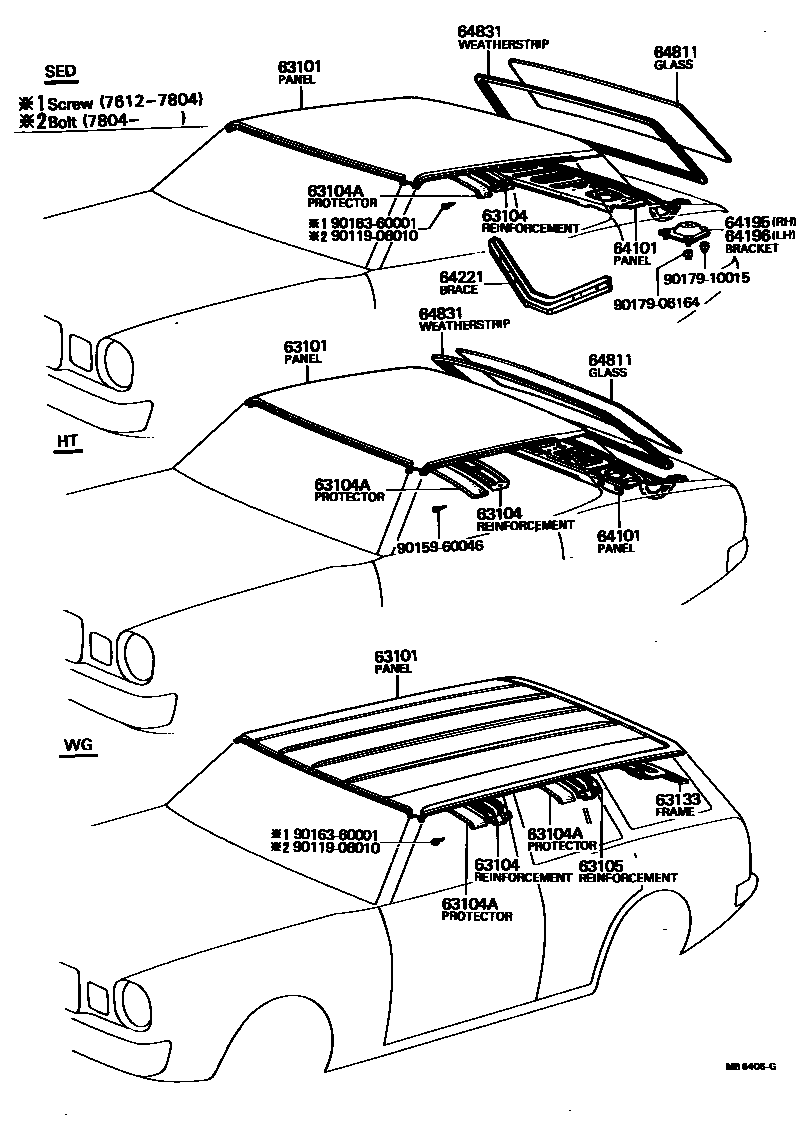

16 parts on this diagram · 1 diagram in section
