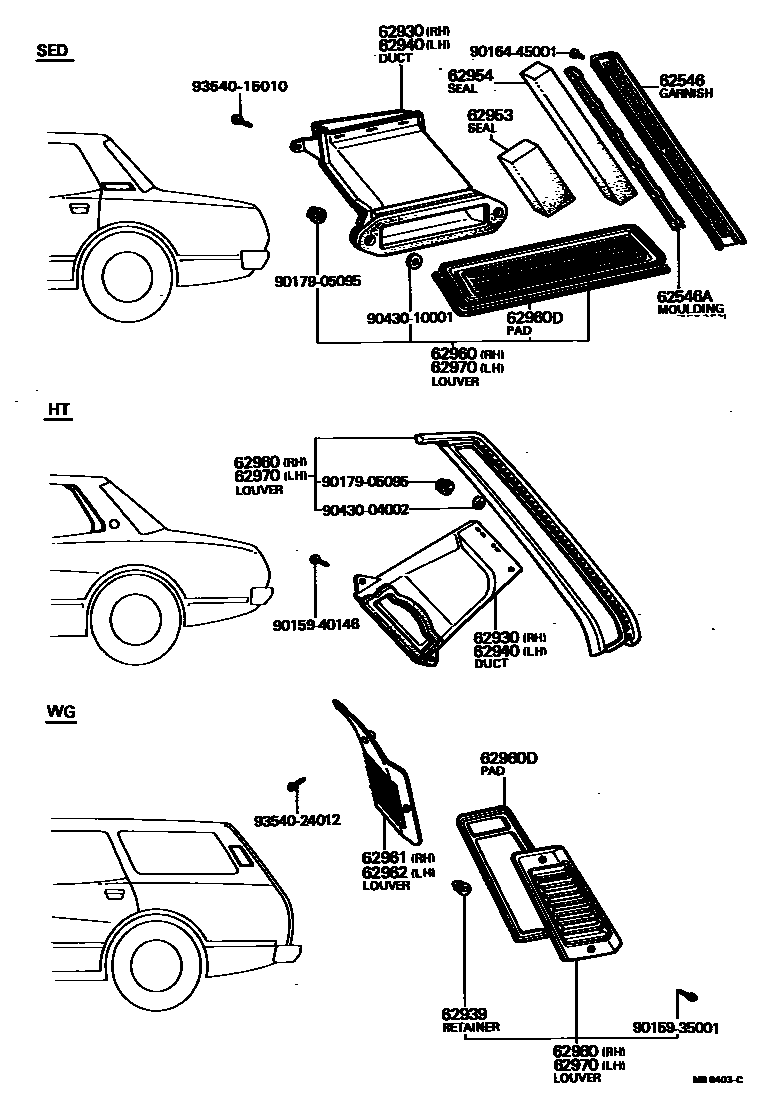

ROOF SIDE VENTILATOR

62546GARNISH, QUARTER VENTILATION, LOUVER

main62821-22030-05iMX32,RX30..SED..(GL,SDX)197808-198008

FOR RH. BEIGE,BEIGE,TRIM4#

sub62821-22030

main62821-22030-08iMX32,RX30..SED..(GL,SDX)197808-198008

FOR RH. IVORY,IVORY,TRIM2#,3#

sub62821-22030

main62822-22020-05iMX32,RX30..SED..(GL,SDX)197808-198008

FOR LH. BEIGE,BEIGE,TRIM4#

sub62822-22020

main62822-22020-08iMX32,RX30..SED..(GL,SDX)197808-198008

FOR LH. IVORY,IVORY,TRIM2#,3#

sub62822-22020

62546AMOULDING, QUARTER VENTILATION LOUVER GARNISH

main62828-22010-05iMX32,RX30..SED..(GL,SDX)197808-198008

BEIGE,BEIGE,TRIM4#

sub62828-22010

main62828-22010-08iMX32,RX30..SED..(GL,SDX)197808-198008

IVORY,IVORY,TRIM2#,3#

sub62828-22010

62930DUCT ASSY, ROOF SIDE VENT, RH

main62903-22010iMX32,RX30,TX30..SED197612-198008

main62903-95800iRX30..HT197612-198008

62939RETAINER, ROOF SIDE VENT

main62909-22010iMX36,RX35197612-198008

62940DUCT ASSY, ROOF SIDE VENT, LH

main62904-22010iMX32,RX30,TX30..SED197612-198008

main62904-95800iRX30..HT197612-198008

62953SEAL, QUARTER VENT DUCT, NO.1

main62957-22010iMX32,RX30,TX30..SED197612-198008

62954SEAL, QUARTER VENT DUCT, NO.2

main62958-22020iMX32,RX30,TX30..SED197612-198008

62960LOUVER ASSY, ROOF SIDE VENT, RH

main62905-29055iRX30..STD197612-197808

main62905-29065iMX32,RX30..SED..(DLX,SDX)197612-197808

sub62905-29066

main62905-29066iMX32,RX30,TX30..SED197808-198008

main62905-95890iRX30..HT197612-198008

main62951-29095iRX35..STD197612-197808

main62951-29105iMX36,RX35..DLX197612-197808

main62951-29115iRX35..STD197808-198008

main62951-29125iMX36,RX35..DLX197808-198008

62960DPAD, NO.1(FOR ROOF SIDE VENT LOUVER)

main62991-22011iMX32,RX30,TX30..SED197808-198008

FOR RH.

main62991-91600iMX36,RX35197612-197805

FOR RH.

sub62991-91601

main62991-91601iMX36,RX35197805-198008

FOR RH.

main62992-22011iMX32,RX30,TX30..SED197808-198008

FOR LH.

main62992-91600iMX36,RX35197612-197805

FOR LH.

sub62992-91601

main62992-91601iMX36,RX35197805-198008

FOR LH.

62961LOUVER, ROOF SIDE VENT INLET, RH

main62961-91600-03iMX36,RX35197612-197808

GRAY,GRAY,TRIM1#,2#

sub62961-91600

main62961-91600-05iMX36,RX35197612-198008

BEIGE,BEIGE,TRIM4#

sub62961-91600

main62961-91600-08iMX36,RX35197808-198008

IVORY,IVORY,TRIM2#,3#

sub62961-91600

62962LOUVER, ROOF SIDE VENT INLET, LH

main62962-91600-03iMX36,RX35197612-197808

GRAY,GRAY,TRIM1#,2#

sub62962-91600

main62962-91600-05iMX36,RX35197612-198008

BEIGE,BEIGE,TRIM4#

sub62962-91600

main62962-91600-08iMX36,RX35197808-198008

IVORY,IVORY,TRIM2#,3#

sub62962-91600

62970LOUVER ASSY, ROOF SIDE VENT, LH

main62906-29055iRX30..STD197612-197808

main62906-29065iMX32,RX30..SED..(DLX,SDX)197612-197808

sub62906-29066

main62906-29066iMX32,RX30,TX30..SED197808-198008

main62906-95890iRX30..HT197612-198008

main62952-29095iRX35..STD197612-197808

main62952-29105iMX36,RX35..DLX197612-197808

main62952-29115iRX35..STD197808-198008

main62952-29125iMX36,RX35..DLX197808-198008

9015935001

main90159-35001

9015940146

main90159-40146

9016445001

main90164-45001

9017905095

main90179-05095

9043004002

main90430-04002

9043010001

main90430-10001

9354015010

main93540-15010

9354024012

main93540-24012

20 parts on this diagram · 1 diagram in section
