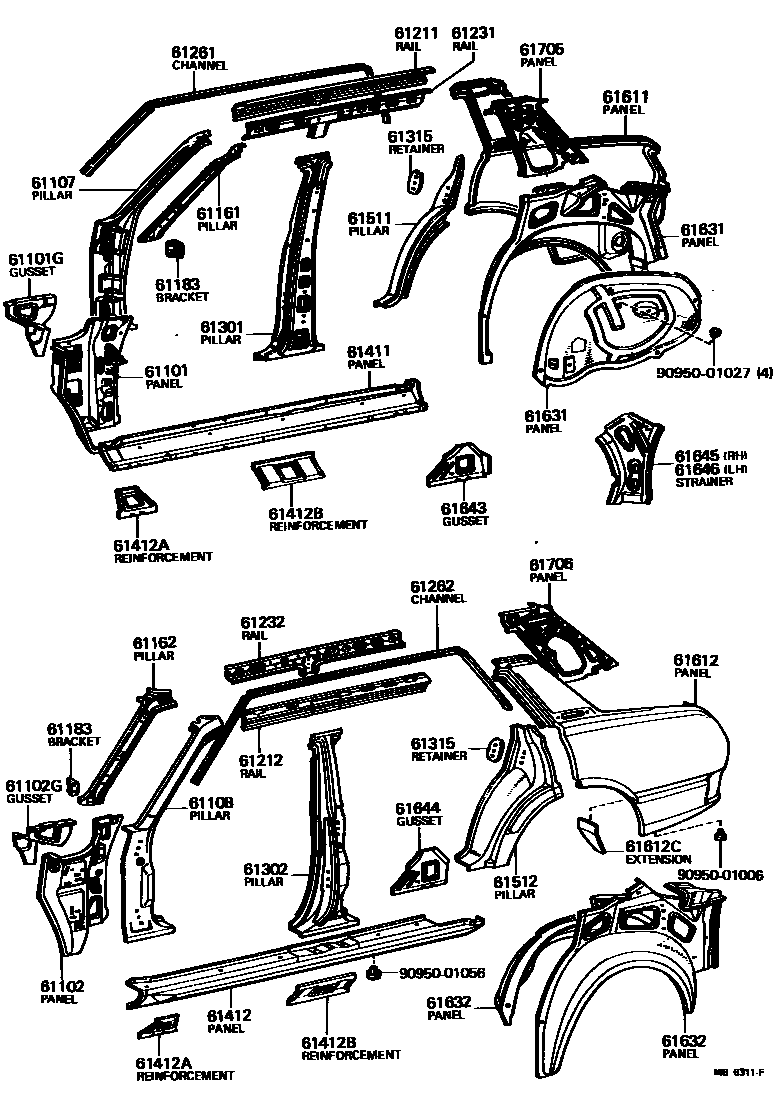

SIDE MEMBER

0001 1 0002 1 0003 1

61101PANEL SUB-ASSY, COWL SIDE, RH

main61101-22900iMX3#,RX3#..RHD197612-197702

sub61101-22902

main61101-22901iRX3#..LHD197612-198008

main61101-22902iMX3#,RX3#,TX30..RHD197702-198008

61101GGUSSET, FRONT BODY PILLAR, LOWER RH

main61145-22010iMX3#,RX3#197612-197806

main61145-22020iMX3#,RX3#,TX30197806-198008

61102PANEL SUB-ASSY, COWL SIDE, LH

main61102-22900iMX3#,RX3#..RHD197612-197702

sub61102-22902

main61102-22901iRX3#..LHD197612-198008

main61102-22902iMX3#,RX3#,TX30..RHD197702-198008

61102GGUSSET, FRONT BODY PILLAR, LOWER LH

main61146-22010iMX3#,RX3#197612-197806

main61146-22020iMX3#,RX3#,TX30197806-198008

61107PILLAR SUB-ASSY, FRONT BODY OUTER, RH

main61027-22020iMX3#,RX3#,TX30..SED,WG197612-198008

main61027-95801iRX30..HT197612-198008

61108PILLAR SUB-ASSY, FRONT BODY OUTER, LH

main61028-22010iMX3#,RX3#,TX30..SED,WG197612-198008

sub61028-22030

main61028-95800iRX30..HT197612-198008

61161PILLAR, FRONT BODY, UPPER INNER RH

main61161-22030iMX3#,RX3#,TX30..SED,WG197612-198008

main61161-95800iRX30..HT197612-198008

61162PILLAR, FRONT BODY, UPPER INNER LH

main61162-22040iMX3#,RX3#,TX30..SED,WG197612-198008

main61162-95800iRX30..HT197612-198008

61183BRACKET, INSTRUMENT PANEL SIDE

main61183-22010iMX3#,RX3#,TX30197612-198008

61211RAIL, ROOF SIDE, OUTER RH

main61211-22030iMX32,RX30,TX30..SED197612-198008

main61211-91605iMX36,RX35197612-198008

main61211-95800iRX30..HT197612-198008

61212RAIL, ROOF SIDE, OUTER LH

main61212-22030iMX32,RX30,TX30..SED197612-198008

main61212-91605iMX36,RX35197612-198008

main61212-95800iRX30..HT197612-198008

61231RAIL, ROOF SIDE, INNER RH

main61203-22060iMX32,RX30,TX30..SED197612-198008

main61203-91605iMX36,RX35197612-198008

main61231-95800iRX30..HT197612-198008

61232RAIL, ROOF SIDE, INNER LH

main61204-22060iMX32,RX30,TX30..SED197612-198008

main61204-91604iMX36,RX35197612-198008

main61232-95800iRX30..HT197612-198008

61261CHANNEL, ROOF DRIP, RH

main61261-22030iMX32,RX30,TX30..SED197612-198008

main61261-91605iMX36,RX35197612-198008

main61261-95800iRX30..HT197612-198008

61262CHANNEL, ROOF DRIP, LH

main61262-22030iMX32,RX30,TX30..SED197612-198008

main61262-91605iMX36,RX35197612-198008

main61262-95800iRX30..HT197612-198008

61301PILLAR SUB-ASSY, CENTER BODY, RH

main61301-22110iRX3#..SED,WG197612-198008

sub61301-22160

main61301-22120iMX3#197612-197808

sub61301-22160

main61301-22160iMX3#,RX3#,TX30..(DLX,STD)..(ARL,SA)197808-198008

main61301-22210iRX30..GL..SA198001-198008

sub61301-22160

61302PILLAR SUB-ASSY, CENTER BODY, LH

main61302-22130iRX3#..(SED,WG)..(EUR,GEN)197612-198008

sub61302-22140

main61302-22140iMX3#197612-198008

61315RETAINER, DOOR LOCK STRIKER PLATE

main61309-20010iMX32,RX30..SED197612-197808

main61505-22020iMX36,RX35197612-198008

61411PANEL, ROCKER, OUTER RH

main61411-22060iMX3#,RX3#..SED,WG197612-197702

main61411-22080iMX3#,RX3#,TX30..SED,WG197702-198008

sub61411-22060

main61411-95800iRX30..HT197612-197702

sub61411-95802

main61411-95802iRX30..HT197702-198008

61412PANEL, ROCKER, OUTER LH

main61412-22060iMX3#,RX3#..SED,WG197612-197702

main61412-22080iMX3#,RX3#,TX30..SED,WG197702-198008

sub61412-22060

main61412-95800iRX30..HT197612-197702

sub61412-95802

main61412-95802iRX30..HT197702-198008

61412AREINFORCEMENT, ROCKER PANEL, NO.1 LH

main61418-22010iMX3#,RX3#,TX30197612-198008

61412BREINFORCEMENT, ROCKER PANEL, NO.2

main61414-22010iMX3#,RX3#,TX30..SED,WG197612-198008

61511PILLAR, QUARTER LOCK, RH

main61511-22050iMX3#,RX3#..SED,WG197612-197808

sub61511-22060

main61511-22060iMX3#,RX3#,TX30..SED,WG197808-198008

61512PILLAR, QUARTER LOCK, LH

main61512-22060iMX3#,RX3#..SED,WG197612-197808

sub61512-22070

main61512-22070iMX3#,RX3#,TX30..SED,WG197808-198008

61611PANEL, QUARTER, RH

main61601-22901iMX36,RX35197612-197808

main61601-22903iMX32,RX30..SED197612-197808

sub61601-22931

sub77292-22040

sub77391-14010

main61601-22911iMX36,RX35..DLX..(ARL,EUR,GEN)197808-198008

FOR W/FUEL LID OPENER

main61601-22912iMX36,RX35197808-198008

main61601-22914iRX30..HT197808-198008

FOR W/FUEL LID OPENER

main61601-22919iMX32,RX30..SED197808-197908

sub61601-22923

sub77292-22040

sub77391-14010

main61601-22920iMX32,RX30..SED..(DLX,GL)197808-197908

FOR W/FUEL LID OPENER

sub61601-22926

sub77292-22040

sub77391-14010

main61601-22921iRX30..HT..DLX197808-198008

main61601-22923iMX32,RX30,TX30..SED197908-198008

main61601-22926iMX32,RX30..SED..(DLX,GL)..(ARL,EUR,GEN)197908-198008

FOR W/FUEL LID OPENER

main61601-95901iRX30..HT197612-197808

61612PANEL, QUARTER, LH

main61602-22901iMX36,RX35197612-198008

main61602-22903iMX32,RX30,TX30..SED197612-198008

main61602-95901iRX30..HT197612-198008

61612CEXTENSION, QUARTER PANEL, LH

main61624-22020iMX32,RX30,TX30197612-198008

61631PANEL, QUARTER WHEEL HOUSE, RH

main61607-22901iMX32,RX30..SED197612-197908

FOR INNER

sub61607-22904

main61607-22904iMX32,RX30,TX30..SED197908-198008

FOR INNER

main61607-91601iRX35..3H..GEN;MX36,RX35..3FC,4F,5F197612-198008

FOR INNER

main61607-91602iRX35..3H..EUG197704-197808

FOR INNER

main61631-22900iMX32,RX30..SED197612-197808

FOR OUTER

sub61631-22902

main61631-22902iMX32,RX30..SED197808-197908

FOR OUTER

sub61631-22904

sub77201-22071

sub77201-22081

sub77292-22011

sub77292-22030

sub77391-14010

main61631-22904iMX32,RX30,TX30..SED197908-198008

FOR OUTER

main61631-91600iMX36,RX35197612-198008

FOR OUTER

sub61631-91602

61632PANEL, QUARTER WHEEL HOUSE, LH

main61608-22901iRX30..HT197612-197908

FOR INNER

sub61608-22903

main61608-22903iRX30..HT197908-198008

FOR INNER

main61608-91602iRX35..3H..EUG197704-197808

FOR INNER

main61608-91603iRX35..3H..GEN;MX36,RX35..3FC,4F,5F197612-198008

FOR INNER

main61632-22900iMX32,RX30..SED197612-197808

FOR OUTER

sub61632-22902

main61632-22902iMX32,RX30,TX30..SED197808-198008

FOR OUTER

main61632-91600iMX36,RX35197612-198008

FOR OUTER

61643GUSSET, QUARTER WHEEL HOUSE CENTER, RH

main61641-22010iMX3#,RX3#,TX30..SED,WG197612-198008

main61641-95800iRX30..HT197612-198008

61644GUSSET, QUARTER WHEEL HOUSE, CENTER LH

main61642-22010iMX3#,RX3#,TX30..SED,WG197612-198008

main61642-95800iRX30..HT197612-198008

61645STRAINER, QUARTER WHEEL HOUSE, RH

main64211-22040iMX32,RX30,TX30..SED197612-198008

main64211-95800iRX30..HT197612-198008

61646STRAINER, QUARTER WHEEL HOUSE, LH

main64212-22030iMX32,RX30,TX30..SED197612-198008

main64212-95800iRX30..HT197612-198008

61705PANEL SUB-ASSY, ROOF SIDE, INNER RH

main61705-22900iMX36,RX35197612-198008

main61705-95801iRX30..HT197612-198008

main61731-22030iMX32,RX30,TX30..SED197612-198008

61706PANEL SUB-ASSY, ROOF SIDE, INNER LH

main61706-22900iMX36,RX35197612-198008

main61706-95801iRX30..HT197612-198008

main61732-22030iMX32,RX30,TX30..SED197612-198008

9095001006

main90950-01006

9095001027

main90950-01027

9095001056

main90950-01056

38 parts on this diagram · 3 diagrams in section
