MAT & CARPET

0001 1 0002 1

5803

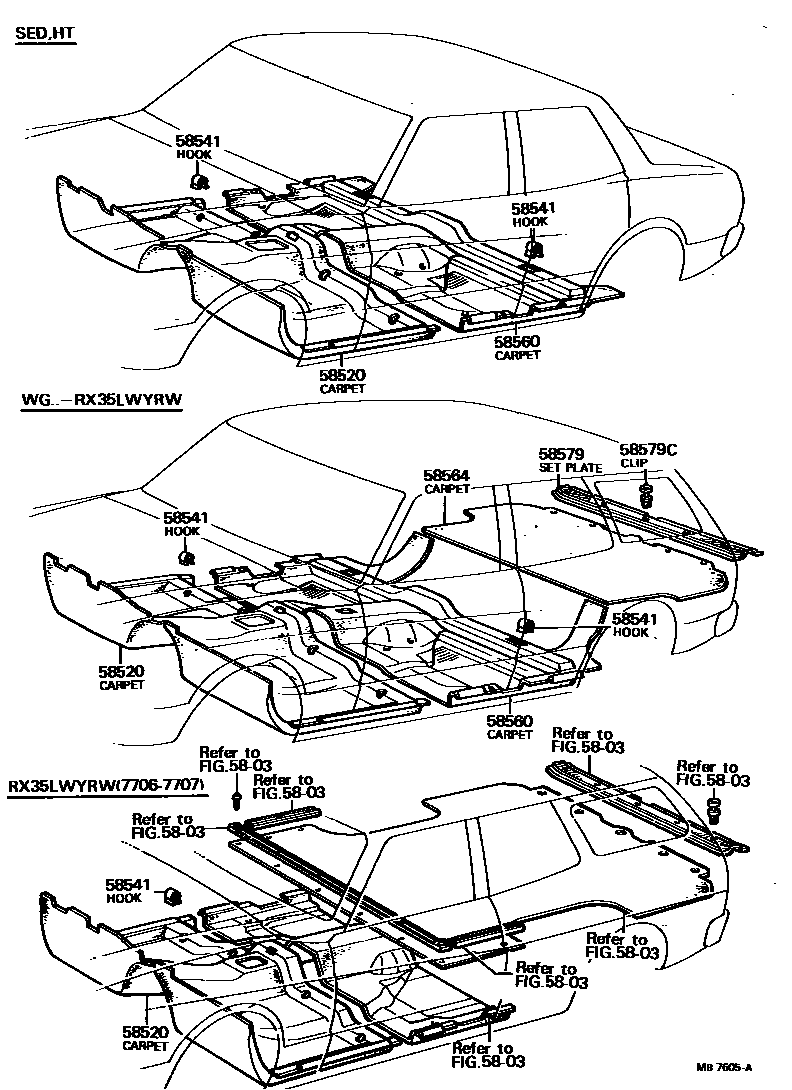

58520CARPET ASSY, FRONT FLOOR

main58510-22161-01iRX30..RHD..GL..GEN197808-198008

W/HEATER,BLACK,BLACK,TRIM2#

main58510-22161-02iRX30..RHD..GL..GEN197808-198008

W/HEATER,DARK WINE,RED/MAROON,TRIM3#

main58510-22161-05iRX30..RHD..GL..GEN197808-198008

W/HEATER,BEIGE,BEIGE,TRIM4#

main58510-22170-01iRX3#..LHD..(3FC,4F,5F)197612-197808

W/HEATER,BLACK,BLACK,TRIM2#

sub58510-22171

main58510-22170-03iRX3#..LHD..(3FC,4F,5F)197612-197808

W/HEATER,GRAY,GRAY,TRIM1#

sub58510-22171

main58510-22170-05iRX3#..LHD..(3FC,4F,5F)197612-197808

W/HEATER,BEIGE,BEIGE,TRIM4#

sub58510-22171

main58510-22171-01iRX3#..LHD..(3FC,4F,5F)..DLX197808-198008

W/HEATER,BLACK,BLACK,TRIM2#

main58510-22171-02iRX3#..LHD..(3FC,4F,5F)..DLX197808-198008

W/HEATER,DARK WINE,RED/MAROON,TRIM3#

main58510-22171-05iRX3#..LHD..(3FC,4F,5F)..DLX197808-198008

W/HEATER,BEIGE,BEIGE,TRIM4#

main58510-22180-01iMX3#,RX3#..RHD..(3FC,4F)..(ARL,EUR,GEN)197805-197808

W/HEATER,BLACK,BLACK,TRIM2#

main58510-22180-03iMX3#,RX3#..RHD..(3FC,4F)..(ARL,EUR,GEN)197805-197808

W/HEATER,GRAY,GRAY,TRIM1#

main58510-22180-05iMX3#,RX3#..RHD..(3FC,4F)..(ARL,EUR,GEN)197805-197808

W/HEATER,BEIGE,BEIGE,TRIM4#

main58510-22181-01iMX3#,RX3#..RHD..(3FC,4F,5F)..DLX..(ARL,EUR,GEN)197808-198008

W/HEATER,BLACK,BLACK,TRIM2#

main58510-22181-02iMX3#,RX3#..RHD..(3FC,4F,5F)..DLX..(ARL,EUR,GEN)197808-198008

W/HEATER,DARK WINE,RED/MAROON,TRIM3#

main58510-22181-05iMX3#,RX3#..RHD..(3FC,4F,5F)..DLX..(ARL,EUR,GEN)197808-198008

W/HEATER,BEIGE,BEIGE,TRIM4#

main58510-22191-01iRX30..LHD..GL197808-198008

W/HEATER,BLACK,BLACK,TRIM2#

main58510-22191-02iRX30..LHD..GL197808-198008

W/HEATER,DARK WINE,RED/MAROON,TRIM3#

main58510-22191-05iRX30..LHD..GL197808-198008

W/HEATER,BEIGE,BEIGE,TRIM4#

main58510-22200-01iRX30..RHD..3H..DLX197805-197808

W/HEATER,BLACK,BLACK,TRIM2#

main58510-22200-03iRX30..RHD..3H..DLX197805-197808

W/HEATER,GRAY,GRAY,TRIM1#

main58510-22200-05iRX30..RHD..3H..DLX197805-197808

W/HEATER,BEIGE,BEIGE,TRIM4#

main58510-22201-01iRX30..RHD..3H..DLX197808-198008

W/HEATER,BLACK,BLACK,TRIM2#

main58510-22201-02iRX30..RHD..3H..DLX197808-198008

W/HEATER,DARK WINE,RED/MAROON,TRIM3#

main58510-22201-05iRX30..RHD..3H..DLX197808-198008

W/HEATER,BEIGE,BEIGE,TRIM4#

main58510-22210-01iRX30..RHD..3H..DLX197612-197805

W/HEATER,BLACK,TRIM2#

main58510-22210-03iRX30..RHD..3H..DLX197612-197805

W/HEATER,GRAY,TRIM1#

main58510-22210-05iRX30..RHD..3H..DLX197612-197805

W/HEATER,BEIGE,TRIM4#

main58510-22220-01iMX3#,RX3#..RHD..(3FC,4F)..(ARL,EUR,GEN)197612-197805

W/HEATER,BLACK,TRIM2#

main58510-22220-03iMX3#,RX3#..RHD..(3FC,4F)..(ARL,EUR,GEN)197612-197805

W/HEATER,GRAY,TRIM1#

main58510-22220-05iMX3#,RX3#..RHD..(3FC,4F)..(ARL,EUR,GEN)197612-197805

W/HEATER,BEIGE,TRIM4#

main58510-22310-01iRX3#..RHD..3H197612-197808

BLACK,BLACK,TRIM2#

sub58510-22311

main58510-22310-03iRX3#..RHD..3H197612-197808

GRAY,GRAY,TRIM1#

sub58510-22311

main58510-22310-05iRX3#..RHD..3H197612-197808

BEIGE,BEIGE,TRIM4#

sub58510-22311

main58510-22311-01iRX3#..RHD..3H197808-198008

BLACK,BLACK,TRIM2#

main58510-22311-02iRX3#..RHD..3H197808-198008

DARK WINE,RED/MAROON,TRIM3#

main58510-22311-05iRX3#..RHD..3H197808-198008

BEIGE,BEIGE,TRIM4#

main58510-22320-01iMX32,RX3#..RHD..(3FC,4F)..(DLX,SDX)..(GEN,SA)197612-197808

BLACK,BLACK,TRIM2#

sub58510-22321

main58510-22320-03iMX32,RX3#..RHD..(3FC,4F)..(DLX,SDX)..(GEN,SA)197612-197808

GRAY,GRAY,TRIM1#

sub58510-22321

main58510-22320-05iMX32,RX3#..RHD..(3FC,4F)..(DLX,SDX)..(GEN,SA)197612-197808

BEIGE,BEIGE,TRIM4#

sub58510-22321

main58510-22321-01iMX32,RX30,TX30..3FC..(SDX,STD);RX3#..RHD..(3FC,4F,5F)..DLX..(GEN,SA)197808-198008

BLACK,BLACK,TRIM2#

main58510-22321-02iMX32,RX30,TX30..3FC..(SDX,STD);RX3#..RHD..(3FC,4F,5F)..DLX..(GEN,SA)197808-198008

DARK WINE,RED/MAROON,TRIM3#

main58510-22321-05iMX32,RX30,TX30..3FC..(SDX,STD);RX3#..RHD..(3FC,4F,5F)..DLX..(GEN,SA)197808-198008

BEIGE,BEIGE,TRIM4#

main58510-22330-01iRX3#..LHD..3H197612-197808

BLACK,BLACK,TRIM2#

sub58510-22331

main58510-22330-03iRX3#..LHD..3H..GEN197612-197808

GRAY,GRAY,TRIM1#

sub58510-22331

main58510-22330-05iRX3#..LHD..3H197612-197808

BEIGE,BEIGE,TRIM4#

sub58510-22331

main58510-22331-01iRX3#..LHD..3H197808-198008

BLACK,BLACK,TRIM2#

main58510-22331-02iRX3#..LHD..3H197808-198008

DARK WINE,RED/MAROON,TRIM3#

main58510-22331-05iRX3#..LHD..3H197808-198008

BEIGE,BEIGE,TRIM4#

main58510-22340-01iRX3#..LHD..(3FC,4F)..DLX..GEN197612-197808

L/HEATER,BLACK,BLACK,TRIM2#

sub58510-22490

main58510-22340-03iRX3#..LHD..(3FC,4F)..DLX..GEN197612-197808

L/HEATER,GRAY,GRAY,TRIM1#

sub58510-22490

main58510-22340-05iRX3#..LHD..(3FC,4F)..DLX..GEN197612-197808

L/HEATER,BEIGE,BEIGE,TRIM4#

sub58510-22490

main58510-22370-01iRX3#..RHD..4F..STD197612-197808

BLACK,BLACK,TRIM2#

main58510-22370-03iRX3#..RHD..4F..STD197612-197808

GRAY,GRAY,TRIM1#

main58510-22370-05iRX3#..RHD..4F..STD197612-197808

BEIGE,BEIGE,TRIM4#

main58510-22371-01iRX3#,TX30..RHD..4F..STD197808-198008

BLACK,BLACK,TRIM2#

main58510-22371-02iRX3#,TX30..RHD..4F..STD197808-198008

DARK WINE,RED/MAROON,TRIM3#

main58510-22371-05iRX3#,TX30..RHD..4F..STD197808-198008

BEIGE,BEIGE,TRIM4#

main58510-22390-01iRX30..LHD..3H..DLX197612-197808

W/HEATER,BLACK,BLACK,TRIM2#

sub58510-22391

main58510-22390-03iRX30..LHD..3H..DLX197612-197808

W/HEATER,GRAY,GRAY,TRIM1#

sub58510-22391

main58510-22390-05iRX30..LHD..3H..DLX197612-197808

W/HEATER,BEIGE,BEIGE,TRIM4#

sub58510-22391

main58510-22391-01iRX30..LHD..3H..DLX197808-198008

W/HEATER,BLACK,BLACK,TRIM2#

main58510-22391-02iRX30..LHD..3H..DLX197808-198008

W/HEATER,DARK WINE,RED/MAROON,TRIM3#

main58510-22391-05iRX30..LHD..3H..DLX197808-198008

W/HEATER,BEIGE,BEIGE,TRIM4#

main58510-22410-01iRX3#..LHD..4F..STD197612-197808

BLACK,BLACK,TRIM2#

main58510-22410-03iRX3#..LHD..4F..STD197612-197808

GRAY,GRAY,TRIM1#

main58510-22410-05iRX3#..LHD..4F..STD197612-197808

BEIGE,BEIGE,TRIM4#

main58510-22411-01iRX3#..LHD..4F..STD197808-198008

BLACK,BLACK,TRIM2#

main58510-22411-02iRX3#..LHD..4F..STD197808-198008

DARK WINE,RED/MAROON,TRIM3#

main58510-22411-05iRX3#..LHD..4F..STD197808-198008

BEIGE,BEIGE,TRIM4#

main58510-22431-01iRX30..LHD..GL..GEN197808-197811

BLACK,BLACK,TRIM2#

main58510-22431-01iRX30..LHD..GL197811-198008

L/HEATER,BLACK,BLACK,TRIM2#

main58510-22431-02iRX30..LHD..GL197811-198008

L/HEATER,DARK WINE,RED/MAROON,TRIM3#

main58510-22431-02iRX30..LHD..GL..GEN197808-197811

DARK WINE,RED/MAROON,TRIM3#

main58510-22431-05iRX30..LHD..GL..GEN197808-197811

BEIGE,BEIGE,TRIM4#

main58510-22431-05iRX30..LHD..GL197811-198008

L/HEATER,BEIGE,BEIGE,TRIM4#

main58510-22490-01iRX3#..LHD..(3FC,4F)..DLX..GEN197808-198008

L/HEATER,BLACK,BLACK,TRIM2#

main58510-22490-02iRX3#..LHD..DLX..EUG197808-198008

L/HEATER,DARK WINE,RED/MAROON,TRIM3#

main58510-22490-05iRX3#..LHD..(3FC,4F)..DLX..GEN197808-198008

L/HEATER,BEIGE,BEIGE,TRIM4#

main58510-22520-01iRX30..RHD..GL197808-198008

BLACK,BLACK,TRIM2#

main58510-22520-02iRX30..RHD..GL197808-198008

DARK WINE,RED/MAROON,TRIM3#

main58510-22520-05iRX30..RHD..GL197808-198008

BEIGE,BEIGE,TRIM4#

58541HOOK, MALE, NO.1(FOR CARPET)

main58521-22040iMX3#,RX3#197612-198008

58560CARPET ASSY, FLOOR, REAR

main58540-22210-01iRX30..3H197612-197707

BLACK,BLACK,TRIM2#

sub58540-22211

sub58553-22010

sub58554-22010

main58540-22210-03iRX30..3H197612-197707

GRAY,GRAY,TRIM1#

sub58540-22211

sub58553-22010

sub58554-22010

main58540-22210-05iRX30..3H197612-197707

BEIGE,BEIGE,TRIM4#

sub58540-22211

sub58553-22010

sub58554-22010

main58540-22211-01iRX3#..3H..GEN197707-197808

BLACK,BLACK,TRIM2#

main58540-22211-03iRX3#..3H..GEN197707-197808

GRAY,GRAY,TRIM1#

main58540-22211-05iRX3#..3H..GEN197707-197808

BEIGE,BEIGE,TRIM4#

main58540-22212-01iRX3#..3H197808-198008

BLACK,BLACK,TRIM2#

main58540-22212-02iRX3#..3H197808-198008

DARK WINE,RED/MAROON,TRIM3#

main58540-22212-05iRX3#..3H197808-198008

BEIGE,BEIGE,TRIM4#

main58540-22220-01iRX30..3H197612-197707

W/SEAT BELT,BLACK,BLACK,TRIM2#

sub58540-22211

sub58553-22010

sub58554-22010

main58540-22220-03iRX30..3H197612-197707

W/SEAT BELT,GRAY,GRAY,TRIM1#

sub58540-22211

sub58553-22010

sub58554-22010

main58540-22220-05iRX30..3H197612-197707

W/SEAT BELT,BEIGE,BEIGE,TRIM4#

sub58540-22211

sub58553-22010

sub58554-22010

main58540-22230-01iRX30..4F..STD197612-197707

W/SEAT BELT,BLACK,BLACK,TRIM2#

sub58540-22231

sub58553-22010

sub58554-22010

main58540-22230-03iRX30..4F..STD197612-197707

W/SEAT BELT,GRAY,GRAY,TRIM1#

sub58540-22231

sub58553-22010

sub58554-22010

main58540-22230-05iRX30..4F..STD197612-197707

W/SEAT BELT,BEIGE,BEIGE,TRIM4#

sub58540-22231

sub58553-22010

sub58554-22010

main58540-22231-01iRX3#..(3FC,4F)..STD197707-197808

BLACK,BLACK,TRIM2#

main58540-22231-03iRX3#..(3FC,4F)..STD197707-197808

GRAY,GRAY,TRIM1#

main58540-22231-05iRX3#..(3FC,4F)..STD197707-197808

BEIGE,BEIGE,TRIM4#

main58540-22232-01iRX3#,TX30..(3FC,4F)..STD197808-198008

BLACK,BLACK,TRIM2#

main58540-22232-02iRX3#,TX30..(3FC,4F)..STD197808-198008

DARK WINE,RED/MAROON,TRIM3#

main58540-22232-05iRX3#,TX30..(3FC,4F)..STD197808-198008

BEIGE,BEIGE,TRIM4#

main58540-22270-01iRX30..SED..(3FC,4F,5F)..DLX..(EUR,GEN)197612-197707

BLACK,BLACK,TRIM2#

sub58540-22271

sub58553-22010

sub58554-22010

main58540-22270-03iRX30..SED..(3FC,4F,5F)..DLX..(EUR,GEN)197612-197707

GRAY,GRAY,TRIM1#

sub58540-22271

sub58553-22010

sub58554-22010

main58540-22270-05iRX30..SED..(3FC,4F,5F)..DLX..(EUR,GEN)197612-197707

BEIGE,BEIGE,TRIM4#

sub58540-22271

sub58553-22010

sub58554-22010

main58540-22271-01iMX3#,RX3#..(SED,WG)..(3FC,4F,5F)..(DLX,SDX)197707-197808

BLACK,BLACK,TRIM2#

main58540-22271-03iMX3#,RX3#..(SED,WG)..(3FC,4F,5F)..(DLX,SDX)197707-197808

GRAY,GRAY,TRIM1#

main58540-22271-05iMX3#,RX3#..(SED,WG)..(3FC,4F,5F)..(DLX,SDX)197707-197808

BEIGE,BEIGE,TRIM4#

main58540-22272-01iMX3#,RX3#..(SED,WG)..(3FC,4F,5F)..(DLX,SDX)197808-198008

BLACK,BLACK,TRIM2#

sub58540-22232

main58540-22272-02iMX3#,RX3#..(SED,WG)..(3FC,4F,5F)..(DLX,SDX)197808-198008

DARK WINE,RED/MAROON,TRIM3#

sub58540-22232

main58540-22272-05iMX3#,RX3#..(SED,WG)..(3FC,4F,5F)..(DLX,SDX)197808-198008

BEIGE,BEIGE,TRIM4#

sub58540-22232

main58540-22280-01iMX32,RX30..SED..(3FC,4F,5F)..DLX197612-197707

W/SEAT BELT,BLACK,BLACK,TRIM2#

sub58540-22271

sub58553-22010

sub58554-22010

main58540-22280-03iMX32,RX30..SED..(3FC,4F,5F)..DLX197612-197707

W/SEAT BELT,GRAY,GRAY,TRIM1#

sub58540-22271

sub58553-22010

sub58554-22010

main58540-22280-05iMX32,RX30..SED..(3FC,4F,5F)..DLX197612-197707

W/SEAT BELT,BEIGE,BEIGE,TRIM4#

sub58540-22271

sub58553-22010

sub58554-22010

main58540-22302-01iRX30..SED..GL197808-198008

BLACK,BLACK,TRIM2#

main58540-22302-02iRX30..SED..GL197808-198008

DARK WINE,RED/MAROON,TRIM3#

main58540-22302-05iRX30..SED..GL197808-198008

BEIGE,BEIGE,TRIM4#

main58540-22320-01iRX30..4F..STD197612-197707

BLACK,BLACK,TRIM2#

sub58540-22231

sub58553-22010

sub58554-22010

main58540-22320-03iRX30..4F..STD197612-197707

GRAY,GRAY,TRIM1#

sub58540-22231

sub58553-22010

sub58554-22010

main58540-22320-05iRX30..4F..STD197612-197707

BEIGE,BEIGE,TRIM4#

sub58540-22231

sub58553-22010

sub58554-22010

main58540-91603-01iRX35..3H..GEN197612-197707

W/SEAT BELT,BLACK,BLACK,TRIM2#

sub58540-22211

sub58553-91601

sub58554-91601

main58540-91603-05iRX35..3H..GEN197612-197707

W/SEAT BELT,BEIGE,BEIGE,TRIM4#

sub58540-22211

sub58553-91601

sub58554-91601

main58540-91604-01iRX35..4F..STD197612-197707

W/SEAT BELT,BLACK,BLACK,TRIM2#

sub58540-22231

sub58553-91601

sub58554-91601

main58540-91604-05iRX35..4F..STD197612-197707

W/SEAT BELT,BEIGE,BEIGE,TRIM4#

sub58540-22231

sub58553-91601

sub58554-91601

main58540-91606-01iMX36,RX35..DLX..(ARL,GEN)197612-197707

W/SEAT BELT,BLACK,BLACK,TRIM2#

sub58540-22271

sub58553-91601

sub58554-91601

main58540-91606-03iMX36,RX35..DLX..(ARL,GEN)197612-197707

W/SEAT BELT,GRAY,GRAY,TRIM1#

sub58540-22271

sub58553-91601

sub58554-91601

main58540-91606-05iMX36,RX35..DLX..(ARL,GEN)197612-197707

W/SEAT BELT,BEIGE,BEIGE,TRIM4#

sub58540-22271

sub58553-91601

sub58554-91601

main58540-91607-01iRX35..DLX..GEN;RX35..MTM..DLX..EUG;RX35..LHD..3FC..EUG197612-197707

BLACK,BLACK,TRIM2#

sub58540-22271

sub58553-91601

sub58554-91601

main58540-91607-03iRX35..DLX..GEN;RX35..MTM..DLX..EUG;RX35..LHD..3FC..EUG197612-197707

GRAY,GRAY,TRIM1#

sub58540-22271

sub58553-91601

sub58554-91601

main58540-91607-05iRX35..DLX..GEN;RX35..MTM..DLX..EUG;RX35..LHD..3FC..EUG197612-197707

BEIGE,BEIGE,TRIM4#

sub58540-22271

sub58553-91601

sub58554-91601

main58540-91609-01iRX35..3H..GEN197612-197707

BLACK,BLACK,TRIM2#

sub58540-22211

sub58553-91601

sub58554-91601

main58540-91609-05iRX35..3H..GEN197612-197707

BEIGE,BEIGE,TRIM4#

sub58540-22211

sub58553-91601

sub58554-91601

main58540-91610-01iRX35..4F..STD197612-197707

BLACK,BLACK,TRIM2#

sub58540-22231

sub58553-91601

sub58554-91601

main58540-91610-05iRX35..4F..STD197612-197707

BEIGE,BEIGE,TRIM4#

sub58540-22231

sub58553-91601

sub58554-91601

main58540-95801-01iRX30..HT..GL..GEN197808-198008

W/SEAT BELT,BLACK,BLACK,TRIM2#

main58540-95801-02iRX30..HT..GL..GEN197808-198008

W/SEAT BELT,DARK WINE,RED/MAROON,TRIM3#

main58540-95801-05iRX30..HT..GL..GEN197808-198008

W/SEAT BELT,BEIGE,BEIGE,TRIM4#

main58540-95802-01iRX30..HT197612-198008

BLACK,BLACK,TRIM2#

main58540-95802-02iRX30..HT..DLX..GEN197808-198008

DARK WINE,RED/MAROON,TRIM3#

main58540-95802-03iRX30..HT197612-197808

GRAY,GRAY,TRIM1#

main58540-95802-05iRX30..HT..DLX..GEN197612-198008

BEIGE,BEIGE,TRIM4#

main58540-95803-01iRX30..HT..DLX..EUG197612-198008

W/SEAT BELT,BLACK,BLACK,TRIM2#

sub58540-95802

main58540-95803-02iRX30..HT..DLX..EUG197808-198008

W/SEAT BELT,DARK WINE,RED/MAROON,TRIM3#

sub58540-95802

main58540-95803-03iRX30..HT..EUG197612-197808

W/SEAT BELT,GRAY,GRAY,TRIM1#

sub58540-95802

main58540-95803-05iRX30..HT..DLX..EUG197612-198008

W/SEAT BELT,BEIGE,BEIGE,TRIM4#

sub58540-95802

main58540-95804-01iRX30..HT..DLX..GEN197612-198008

W/SEAT BELT,BLACK,BLACK,TRIM2#

sub58540-95800

main58540-95804-02iRX30..HT..DLX..GEN197808-198008

W/SEAT BELT,DARK WINE,RED/MAROON,TRIM3#

sub58540-95800

main58540-95804-03iRX30..HT..GEN197612-197808

W/SEAT BELT,GRAY,GRAY,TRIM1#

sub58540-95800

main58540-95804-05iRX30..HT..DLX..GEN197612-198008

W/SEAT BELT,BEIGE,BEIGE,TRIM4#

sub58540-95800

main58540-95805-01iRX30..HT..GL..GEN197808-198008

BLACK,BLACK,TRIM2#

main58540-95805-02iRX30..HT..GL..GEN197808-198008

DARK WINE,RED/MAROON,TRIM3#

main58540-95805-05iRX30..HT..GL..GEN197808-198008

BEIGE,BEIGE,TRIM4#

main58540-95806-01iRX30..HT..GL..EUG197808-198008

BLACK,BLACK,TRIM2#

sub58540-95805

main58540-95806-02iRX30..HT..GL..EUG197808-198008

DARK WINE,RED/MAROON,TRIM3#

sub58540-95805

main58540-95806-05iRX30..HT..GL..EUG197808-198008

BEIGE,BEIGE,TRIM4#

sub58540-95805

58564CARPET, REAR FLOOR

main58571-91600-01iMX36,RX35..DLX197612-198008

BLACK,BLACK,TRIM2#

main58571-91600-02iMX36,RX35..DLX197808-198008

DARK WINE,RED/MAROON,TRIM3#

main58571-91600-03iMX36,RX35..DLX197612-197808

GRAY,GRAY,TRIM1#

main58571-91600-05iMX36,RX35..DLX197612-197905

BEIGE,BEIGE,TRIM4#

main58571-91600-15iMX36,RX35..DLX197905-198008

BEIGE,BEIGE,TRIM4#

58579SET PLATE, REAR FLOOR CARPET, NO.1

main58387-91600-01iMX36,RX35..DLX197612-198008

BLACK,BLACK,TRIM2#

main58387-91600-02iMX36,RX35..DLX197808-198008

DARK WINE,RED/MAROON,TRIM3#

main58387-91600-03iMX36,RX35..DLX197612-197808

GRAY,GRAY,TRIM1#

main58387-91600-05iMX36,RX35..DLX197612-198008

BEIGE,BEIGE,TRIM4#

58579CCLIP, REAR FLOOR CARPET SET

main90467-08114-02iMX36,RX35..DLX197808-198008

DARK WINE,RED/MAROON,TRIM3#

sub90467-08114

main90467-08114-11iMX36,RX35..DLX197612-198008

BLACK,BLACK,TRIM2#

sub90467-08114

main90467-08114-25iMX36,RX35..DLX197612-198008

BEIGE,BEIGE,TRIM4#

sub90467-08114

main90467-08114-53iMX36,RX35..DLX197612-197808

GRAY,GRAY,TRIM1#

sub90467-08114

7 parts on this diagram · 2 diagrams in section
