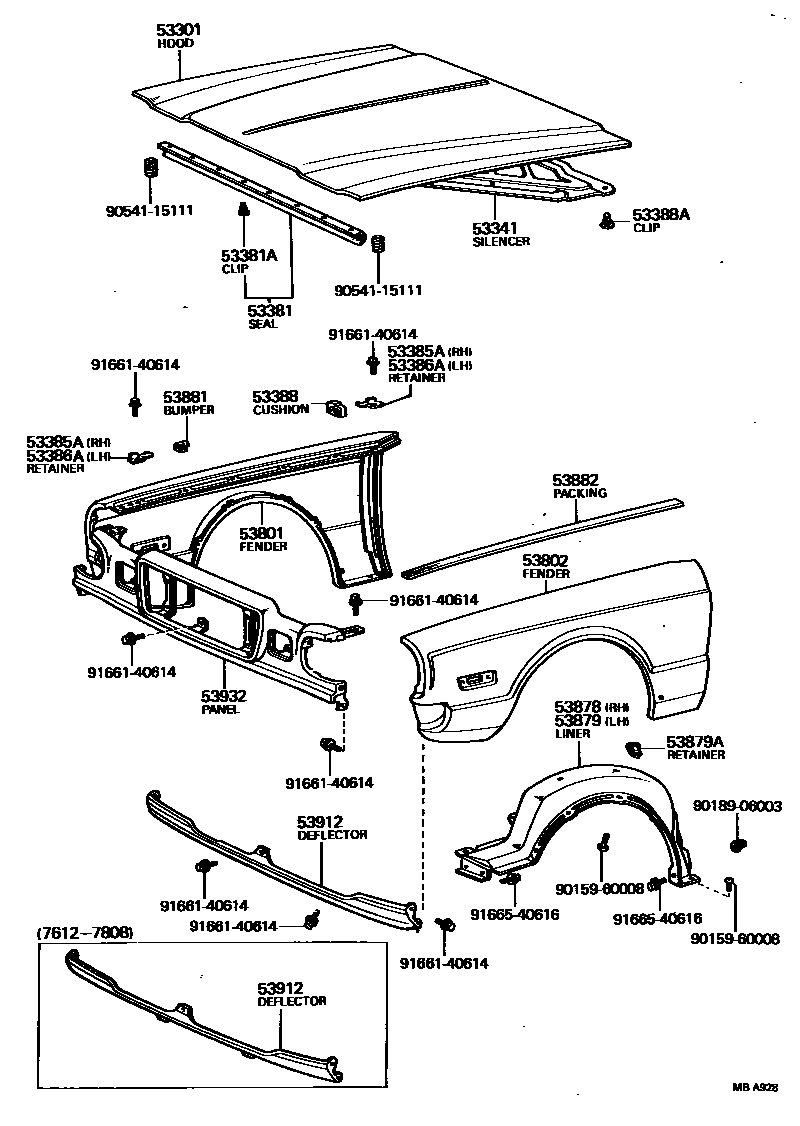

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-22040iMX3#,RX3#,TX30197612-198008

sub53301-22060

53341SILENCER, HOOD, NO.1

main53341-22010iMX3#,RX3#,TX30197612-198008

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-22040iMX3#,RX3#,TX30197612-198008

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08008iMX3#,RX3#,TX30197612-198005

main90467-08011iMX3#,RX3#,TX30198005-198008

53385ARETAINER, HOOD BUMPER, RH

main53385-14010iMX3#,RX3#,TX30197612-198008

FOR FRONT

main53386-14010iMX3#,RX3#,TX30197612-198008

FOR REAR

53386ARETAINER, HOOD BUMPER, LH

main53385-14010iMX3#,RX3#,TX30197612-198008

FOR REAR

main53386-14010iMX3#,RX3#,TX30197612-198008

FOR FRONT

53388CUSHION, HOOD, REAR

main53388-22010iMX3#,RX3#,TX30197612-198008

53388ACLIP(FOR HOOD REAR)

main90467-09004iMX3#,RX3#197612-197906

main90467-09014iMX3#,RX3#,TX30197906-198008

53801FENDER SUB-ASSY, FRONT RH

main53801-22400iRX3#..(DLX,GL)..(GEN,SA)197708-198008

W/MIRROR HOLE

main53801-22410iRX3#..DLX..(GEN,SA)197612-197708

W/MIRROR HOLE

sub53801-22400

main53801-22430iMX3#,RX3#..ARL,GEN,SA197612-197908

sub53801-22500

main53801-22460iMX3#,RX3#..DLX,SDX197612-197708

sub53801-22430

main53801-22500iRX3#..EUR197708-198008

53802FENDER SUB-ASSY, FRONT LH

main53802-22380iRX3#..(DLX,GL)..(GEN,SA)197708-198008

W/MIRROR HOLE

main53802-22390iRX3#..DLX..(GEN,SA)197612-197708

W/MIRROR HOLE

sub53802-22380

main53802-22410iRX3#..STD197612-197908

sub53802-22480

main53802-22440iMX3#,RX3#..DLX,SDX197612-197708

sub53802-22410

main53802-22480iRX3#..EUR197708-198008

53878LINER, FRONT FENDER, RH

main53875-22010iMX3#,RX3#,TX30197802-198008

main53875-22020iMX3#,RX3#197612-197802

sub53875-22010

53879LINER, FRONT FENDER, LH

main53876-22010iMX3#,RX3#,TX30197802-198008

main53876-22020iMX3#,RX3#197612-197802

sub53876-22010

53879ARETAINER, FRONT FENDER LINER

main53879-22010iMX3#,RX3#,TX30197612-198008

53881BUMPER, FENDER TO HOOD

main53384-22030iMX3#,RX3#,TX30197612-198008

53882PACKING, FRONT FENDER MAIN

main53882-22030iMX3#,RX3#,TX30197612-198008

53912DEFLECTOR, FRONT BUMPER STONE

main53901-22060iMX3#,RX3#,TX30197808-198008

sub53901-22080

main53911-22060iMX3#,RX3#197612-197808

53932PANEL SUB-ASSY, FRONT END

main53903-22010iMX3#,RX3#197612-197808

main53903-22040iMX3#,RX35,TX30;RX30..3FC,3H,4F;RX30..5F..DLX..SA;RX30..5F..(EUR,GEN)197808-198008

main53903-22070iRX30..5F..GL..SA;RX3#..(SED,WG)..LHD..(DLX,GL)..GEN197908-198008

FOR S.A.B.

9015960008

main90159-60008

9018906003

main90189-06003

9054115111

main90541-15111

9166140614

main91661-40614

9166540616

main91665-40616

22 parts on this diagram · 1 diagram in section
