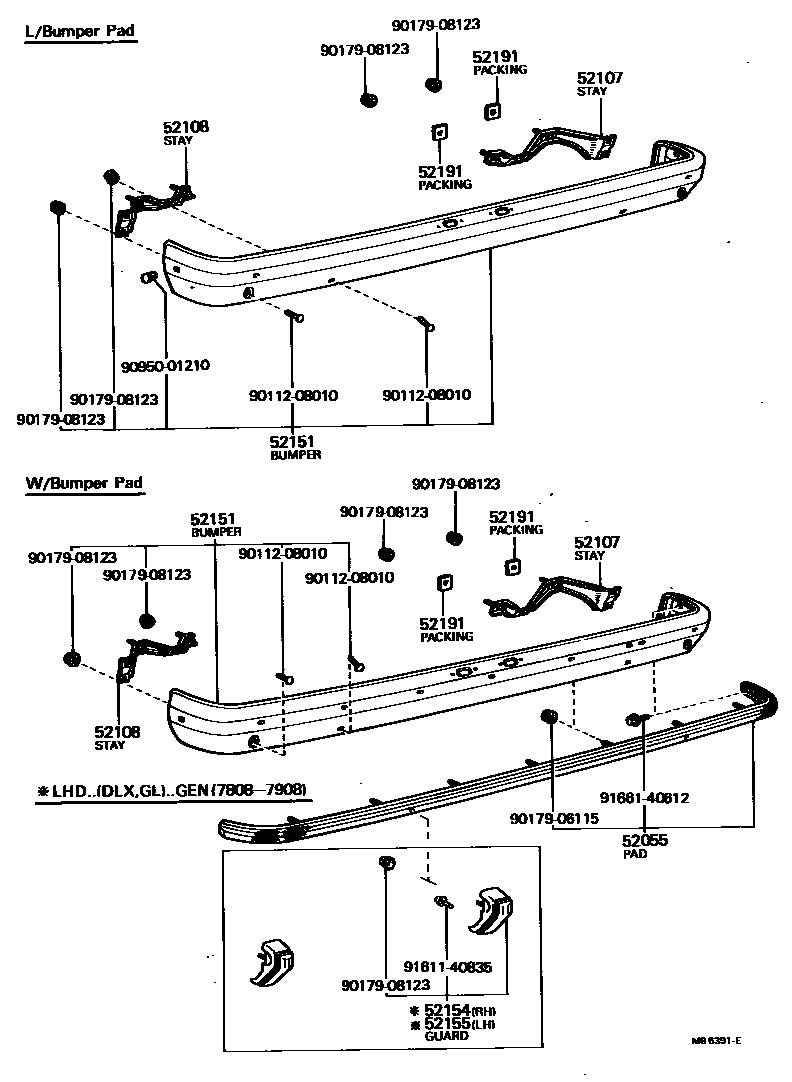

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0005 1

52055PAD SUB-ASSY, REAR BUMPER

main52055-29025iRX3#..LHD..STD..EUG197612-198008

main52055-29035iRX3#..LHD..(DLX,GL)..GEN197808-197908

W/BUMPER GUARD

main52055-29055iRX30..5F..GL..SA;RX3#..(SED,WG)..LHD..(DLX,GL)..GEN197908-198008

FOR S.A.B.

52107STAY SUB-ASSY, REAR BUMPER, RH

main52015-91600iMX36,RX35197612-198008

main52083-91601iRX35..LHD..DLX..GEN197908-198008

FOR S.A.B.

main52181-22050iRX30..5F..DLX..SA;RX30..5F..(EUR,GEN);MX32,RX30,TX30..3FC,3H,4F197612-198008

52108STAY SUB-ASSY, REAR BUMPER, LH

main52016-91600iMX36,RX35197612-198008

main52083-91601iRX35..LHD..DLX..GEN197908-198008

FOR S.A.B.

main52182-22050iRX30..5F..DLX..SA;RX30..5F..(EUR,GEN);MX32,RX30,TX30..3FC,3H,4F197612-198008

52151BUMPER ASSY, REAR

main52151-29265iRX30,TX30..STD197612-198008

sub52151-29495

main52151-29275iRX3#..LHD..STD..EUG197612-198008

W/BUMPER PAD

sub52151-22120

main52151-29285iRX35..STD197612-198008

sub52151-29535

main52151-29295iMX36,RX35..DLX;RX35..LHD..4F..STD..EUG197612-198008

W/BUMPER PAD

sub52151-29545

main52151-29355iRX30..5F..GL..SA;RX3#..(SED,WG)..LHD..(DLX,GL)..GEN197908-198008

FOR S.A.B.

sub52151-22140

52154GUARD, BUMPER, REAR RH

main52405-29015iRX3#..LHD..(DLX,GL)..GEN197808-197908

52155GUARD, BUMPER, REAR LH

main52406-29015iRX3#..LHD..(DLX,GL)..GEN197808-197908

52191PACKING, REAR BUMPER STAY

main52191-10030iRX30..5F..DLX..SA;RX30..5F..(EUR,GEN);MX32,RX30,TX30..3FC,3H,4F197612-198008

9011208010

main90112-08010

9017906115

main90179-06115

9017908123

main90179-08123

9095001210

main90950-01210

9161140835

main91611-40835

9166140612

main91661-40612

13 parts on this diagram · 4 diagrams in section
