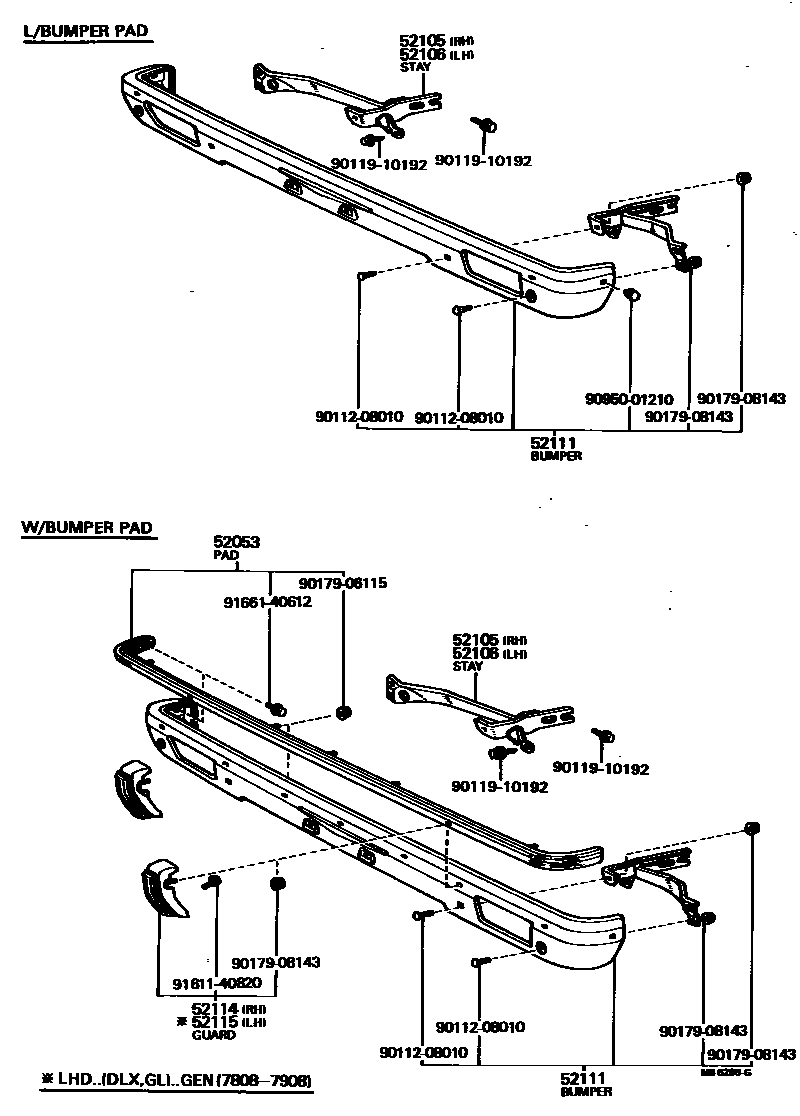

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52053PAD SUB-ASSY, FRONT BUMPER

main52051-29025iRX30..5F..DLX..SA;MX3#,RX35..DLX,SDX;RX30..5F..(EUR,GEN);RX30..(3FC,3H,4F)..(DLX,GL)197612-198008

main52051-29035iRX3#..LHD..(DLX,GL)..GEN197808-197908

W/BUMPER GUARD

52105STAY SUB-ASSY, FRONT BUMPER, RH

main52011-22020iMX3#,RX35,TX30;RX30..3FC,3H,4F;RX30..5F..DLX..SA;RX30..5F..(EUR,GEN)197612-198008

main52011-22040iRX3#..LHD..EUR197707-197802

W/HEAD LAMP CLEANER

52106STAY SUB-ASSY, FRONT BUMPER, LH

main52012-22020iMX3#,RX35,TX30;RX30..3FC,3H,4F;RX30..5F..DLX..SA;RX30..5F..(EUR,GEN)197612-198008

main52012-22030iRX3#..LHD..EUR197707-197802

W/HEAD LAMP CLEANER

52111BUMPER ASSY, FRONT

main52111-29295iRX3#,TX30..STD197612-198008

sub52111-29515

main52111-29305iMX3#197612-198008

W/BUMPER PAD

sub52111-22120

main52111-29335iRX3#..LHD..EUR197612-197802

W/BUMPER PAD,LAMP CLEANER

sub52111-22140

main52111-29336iRX3#..LHD..EUR197802-198008

W/BUMPER PAD,LAMP CLEANER

sub52111-29535

main52111-29345iRX3#..LHD..EUG197612-197802

L/BUMPER PAD,W/LAMP CLEANER

sub52111-22150

main52111-29346iRX3#..LHD..STD..EUG197802-198008

L/BUMPER PAD,W/LAMP CLEANER

sub52111-29545

main52111-29385iRX30..5F..GL..SA;RX3#..(SED,WG)..LHD..(DLX,GL)..GEN197908-198008

FOR S.A.B.

sub52111-22160

52114GUARD, BUMPER, FRONT RH

main52401-29035iRX3#..LHD..(DLX,GL)..GEN197808-197908

52115GUARD, BUMPER, FRONT LH

main52402-29025iRX3#..LHD..(DLX,GL)..GEN197808-197908

9011208010

main90112-08010

9011910192

main90119-10192

9017900143

main90179-00143

9017906115

main90179-06115

9017908143

main90179-08143

9095001210

main90950-01210

9161140820

main91611-40820

9166140612

main91661-40612

14 parts on this diagram · 2 diagrams in section
