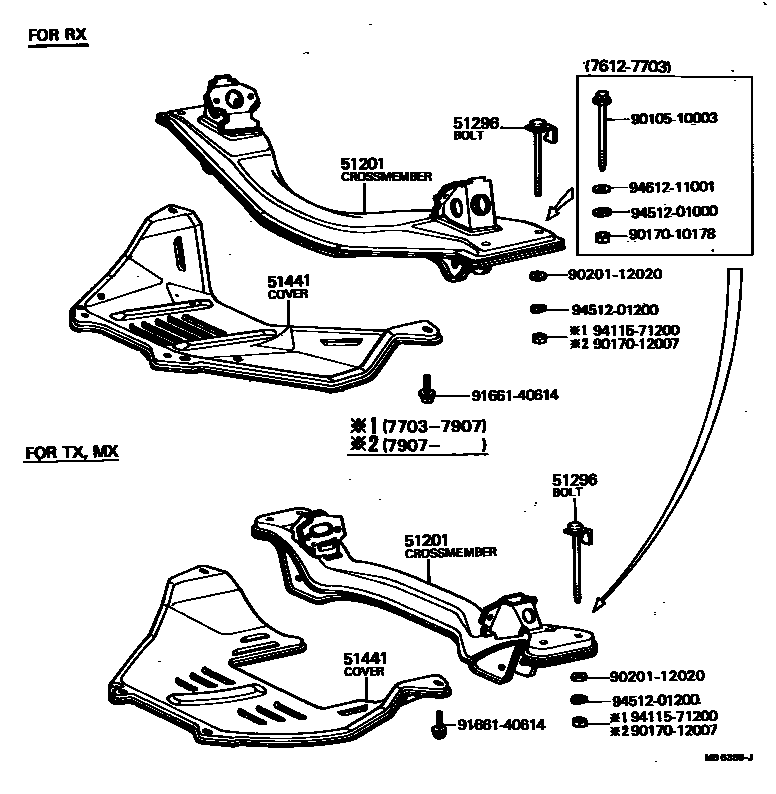

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-22050iRX3#197612-197703

sub51201-22H00

main51201-22051iRX3#197703-197908

sub51201-22052

sub16711-34081

main51201-22052iRX3#..GEN,SA197908-198008

main51201-22060iMX3#197612-197703

sub51201-22H01

main51201-22072iTX30198001-198008

main51201-22080iMX3#197703-198008

main51201-22120iRX3#..EUR197905-197908

sub51201-22121

sub16711-34081

main51201-22121iRX3#..EUR197908-198008

51296BOLT, FRONT SUSPENSION MEMBER MOUNTING

main51296-22010iMX3#,RX3#197703-197907

MARK=7

main51296-22011iMX3#,RX3#,TX30197907-198008

MARK=11

51441COVER, ENGINE UNDER, NO.1

main51441-22040iRX3#197612-198008

main51441-22060iMX3#,TX30197612-198008

9010510003

main90105-10003

9017010178

main90170-10178

9017012007

main90170-12007

9020112020

main90201-12020

9166140614

main91661-40614

9411571200

main94115-71200

9451201000

main94512-01000

9451201200

main94512-01200

9461211001

main94612-11001

12 parts on this diagram · 2 diagrams in section
