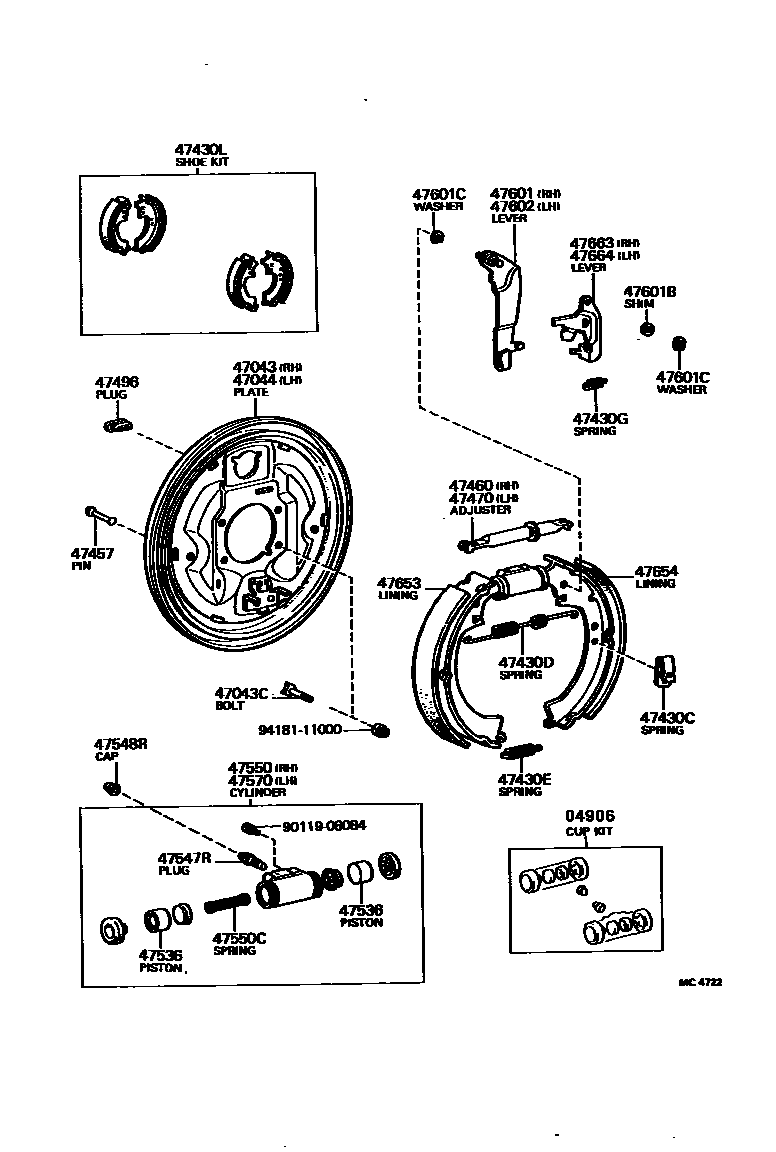

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04906CUP KIT, REAR WHEEL CYLINDER

main04906-12040iRX3#..EUR197612-198808

main04906-14020iMX3#,RX3#,TX30..ARL,GEN,SA197612-198808

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-20050iMX3#,RX3#,TX30197612-198008

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-22011iMX3#,RX3#,TX30197612-198008

*10-1.25PX37-15

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-20050iMX3#,RX3#,TX30197612-198008

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main47446-10010iMX3#,RX3#,TX30197612-198008

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23375iMX3#,RX3#,TX30197612-198008

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23346iMX3#,RX3#,TX30197612-198008

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12310iMX3#,RX3#,TX30197612-198008

47430LSHOE KIT, REAR BRAKE

main04495-14010iRX3#..EUR197612-198008

sub04495-14011

main04495-20050iMX3#,RX3#,TX30..ARL,GEN,SA197612-198008

sub04495-20051

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-11010iMX3#,RX3#,TX30197612-198008

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-14021iMX3#,RX3#,TX30197612-198008

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47062-14021iMX3#,RX3#,TX30197612-198008

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iMX3#,RX3#,TX30197612-198008

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-22020iMX3#,RX3#,TX30..ARL,GEN,SA197612-198008

main47051-22040iRX3#..EUR197612-198008

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010iMX3#,RX3#,TX30197612-198008

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iMX3#,RX3#,TX30197612-198008

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-29075iMX3#,RX3#,TX30..ARL,GEN,SA197612-198008

ID=22.22

sub47550-19145

main47550-29115iRX3#..EUR197612-198008

ID=20.64

sub47550-19135

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-12020iRX3#..EUR197706-198008

main47509-20010iMX3#,RX3#,TX30..ARL,GEN,SA197612-198008

main47509-22010iRX3#..EUG197612-197706

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-29075iMX3#,RX3#,TX30..ARL,GEN,SA197612-198008

ID=22.22

sub47550-19145

main47550-29115iRX3#..EUR197612-198008

ID=20.64

sub47550-19135

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-14010iMX3#,RX3#,TX30197612-198008

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-08150iMX3#,RX3#,TX30197612-198008

T=0.3,T=0.3

main90564-08151iMX3#,RX3#,TX30197612-198008

T=0.6,T=0.6

main90564-08152iMX3#,RX3#,TX30197612-198008

T=0.9,T=0.9

main90564-08172iMX3#,RX3#,TX30197612-198008

T=0.2,T=0.2

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iMX3#,RX3#,TX30197612-198008

T=1.2

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-14010iMX3#,RX3#,TX30197612-198008

47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)

main47651-22020iMX3#,RX3#,TX30..ARL,GEN,SA197612-198008

main47655-14010iRX3#..EUR197612-198008

47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)

main47651-22020iMX3#,RX3#,TX30..ARL,GEN,SA197612-198008

main47655-14010iRX3#..EUR197612-198008

47663LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47643-14021iMX3#,RX3#,TX30197612-198008

47664LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47644-14021iMX3#,RX3#,TX30197612-198008

9011906084

main90119-06084

9418111000

main94181-11000

29 parts on this diagram · 1 diagram in section
