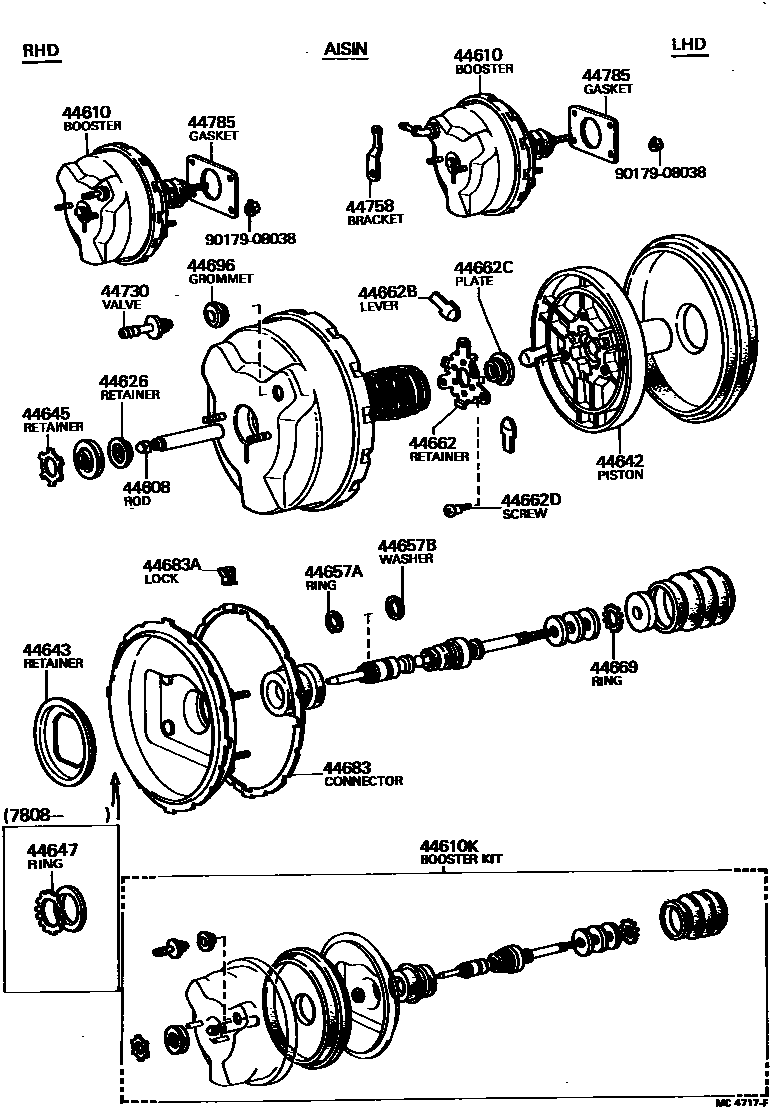

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-30050iRX3#..GEN197612-197808

FOR 7.5 INCHES

sub44606-35100

main44606-35100iRX3#..GEN197808-198008

FOR 7.5 INCHES

main44608-14040iRX3#..LHD..EUR197612-198008

FOR 9 INCHES

main44608-22090iMX3#,RX3#,TX30..RHD..(ARL,EUR,SA)197808-198008

FOR 9 INCHES

44610BOOSTER ASSY, BRAKE

main44610-22230iRX3#..RHD..GEN197612-198008

7.5 INCHES

main44610-22250iMX3#,RX3#..RHD..(ARL,EUR,SA)197612-197808

9 INCHES

sub44610-22251

main44610-22251iMX3#,RX3#,TX30..RHD..(ARL,EUR,SA)197808-198008

9 INCHES

main44610-22260iRX3#..LHD..GEN197612-198008

7.5 INCHES

main44610-22270iRX3#..LHD..EUR197612-198008

9 INCHES

44610KBOOSTER KIT, BRAKE

main04443-22160iRX3#..RHD..GEN197612-198008

FOR 7.5 INCHES

main04443-22180iMX3#,RX3#..RHD..(ARL,EUR,SA)197612-197808

FOR 9 INCHES

main04443-22181iMX3#,RX3#,TX30..RHD..(ARL,EUR,SA)197808-198008

FOR 9 INCHES

main04443-22190iRX3#..LHD..GEN197612-198008

FOR 7.5 INCHES

main04443-22200iRX3#..LHD..EUR197612-198008

FOR 9 INCHES

44626RETAINER, BOOSTER ROD CUP

main44626-60010iRX3#..GEN197612-198008

44642PISTON, BRAKE BOOSTER

main44642-14170iRX3#..GEN197612-198008

FOR 7.5 INCHES

main44642-20330iMX3#,RX3#..ARL,EUR,SA197612-198008

FOR 9 INCHES

main44642-25080iMX3#,RX3#,TX30..RHD..(ARL,EUR,SA)197808-198008

FOR 9 INCHES

44643RETAINER, DIAPHRAGM

main44643-60010iRX3#..GEN197612-198008

44645RETAINER, BOOSTER PUSH ROD SEAL

main44628-60010iRX3#..GEN197612-198008

FOR 7.5 INCHES

main44645-22020iMX3#,RX3#,TX30..ARL,EUR,SA197612-198008

FOR 9 INCHES

44647RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER)

main44629-30090iRX3#..GEN197808-198008

44657ARING, SNAP(FOR BOOSTER AIR VALVE STOPPER)

main96150-01600iRX3#..GEN197612-198008

44657BWASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER)

main44645-20100iRX3#..GEN197612-198008

44662RETAINER, REACTION, NO.1

main44662-22230iRX3#..GEN197612-198008

44662BLEVER, REACTION

main44661-14190iRX3#..GEN197612-198008

44662CPLATE, REACTION, NO.1

main44653-20150iRX3#..GEN197612-198008

44662DSCREW(FOR REACTION RETAINER)

main44617-14190iRX3#..GEN197612-198008

44669RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)

main44669-60010iRX3#..GEN197612-198008

44683CONNECTOR, BOOSTER BODY

main44682-20150iRX3#..GEN197612-198008

44683ALOCK, CONNECTOR

main44683-20100iRX3#..GEN197612-198008

44696GROMMET, CHECK VALVE

main90480-24439iRX3#..GEN197612-198008

main90480-24517iMX3#,RX3#,TX30..ARL,EUR,SA197612-198008

sub90480-24015

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20060iRX3#..LHD..GEN197612-198008

FOR 7.5 INCHES

main44730-22080iRX3#..RHD..GEN197612-198008

FOR 7.5 INCHES

main44730-22090iRX3#..LHD..EUR197612-198008

FOR 9 INCHES

main44730-30010iMX3#,RX3#,TX30..RHD..(ARL,EUR,SA)197612-198008

FOR 9 INCHES

44758BRACKET, VACUUM CHECK VALVE

main44758-20060iRX3#..LHD..EUR197612-198008

FOR 9 INCHES

main44758-22070iRX3#..LHD..GEN197612-198008

FOR 7.5 INCHES

44785GASKET, BRAKE BOOSTER

main44785-22010iMX3#,RX3#197612-197802

sub44785-30020

main44785-30020iMX3#,RX3#,TX30197802-198008

9017908038

main90179-08038

22 parts on this diagram · 3 diagrams in section
