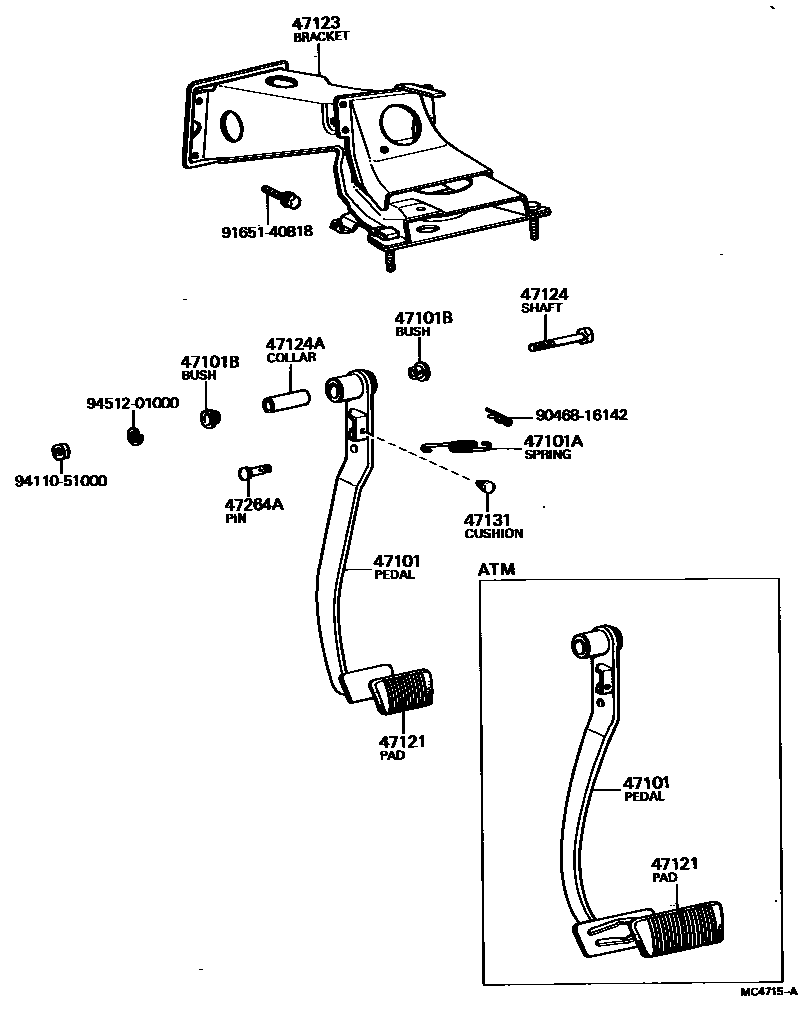

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-22120iMX3#,RX3#,TX30..RHD..MTM197612-198008

main47101-22130iMX3#,RX3#..RHD..3FC197612-198008

main47101-22140iRX3#..LHD..3FC197612-198008

main47101-22150iRX3#..LHD..MTM197612-198008

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-12483iMX3#,RX3#,TX30..RHD197612-198008

main90506-16333iRX3#..LHD197612-198008

47101BBUSH(FOR BRAKE PEDAL)

main90386-13192iMX3#,RX3#,TX30197612-198008

47121PAD, BRAKE PEDAL

main31321-20020iMX3#,RX3#,TX30..MTM197612-198008

main47121-30050iMX3#,RX3#..3FC197612-198008

47123BRACKET, BRAKE PEDAL

main55106-22070iMX3#,RX3#..RHD197612-197808

main55106-22071iMX3#,RX3#,TX30..RHD197808-198008

main55106-22080iRX3#..LHD197612-197808

main55106-22081iRX3#..LHD197808-198008

47124SHAFT, BRAKE PEDAL

main90101-10039iMX3#,RX3#,TX30197612-198008

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iMX3#,RX3#,TX30197612-198008

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iMX3#,RX3#,TX30197612-198008

47264APIN(FOR PUSH ROD)

main90249-10064iMX3#,RX3#,TX30197612-198008

9046816142

main90468-16142

9165140818

main91651-40818

9411051000

main94110-51000

9451201000

main94512-01000

13 parts on this diagram · 1 diagram in section
