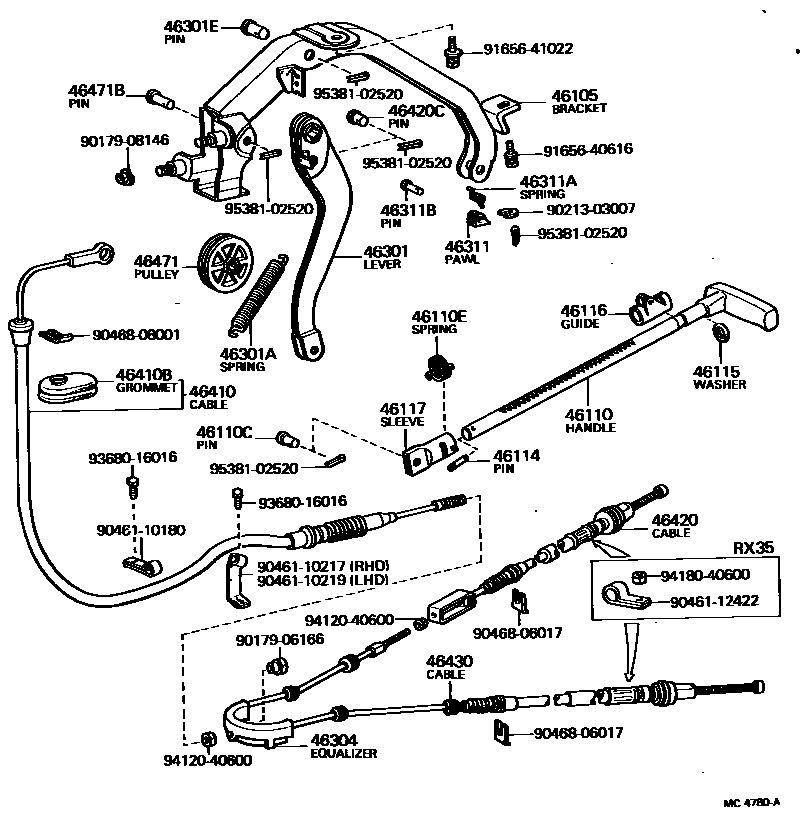

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46105BRACKET SUB-ASSY, PARKING BRAKE PLANGER OR PEDAL

main46105-22010iRX3#..LHD..3H197612-198008

main46105-22020iRX3#..RHD..3H197612-197704

main46105-22030iRX3#..RHD..3H197704-198008

46110HANDLE ASSY, PARKING BRAKE CONTROL

main46101-22050iRX3#..RHD..3H197612-198008

main46101-22060iRX3#..LHD..3H197612-198008

main46201-20020iRX3#..(3FC,4F)..STD197612-197711

sub46201-20021

main46201-22040iRX30..SED..LHD..4F..DLX..GEN197908-197911

EXTRA INTERIOR

main46201-22040iMX3#,RX3#..(3FC,4F,5F)..DLX197612-197911

main46201-22060iMX3#,RX3#..(3FC,4F,5F)..(DLX,SDX)197808-197911

main46201-22070iMX3#,RX3#..(3FC,4F,5F)..(DLX,SDX)197911-198008

main46201-22080iRX3#,TX30..(3FC,4F,5F)..(GL,STD)197911-198008

EXTRA INTERIOR

46110CPIN(FOR PARKING BRAKE HANDLE SET)

main90240-08094iRX3#..3H197612-198008

46110ESPRING, TORSION(FOR PARKING BRAKE PLUNGER)

main90508-14038iRX3#..RHD..3H197612-198008

main90508-14039iRX3#..LHD..3H197612-198008

46114PIN, PARKING BRAKE PLUNGER

main46114-30010iRX3#..3H197612-198008

46115WASHER, PARKING BRAKE PLUNGER

main46115-20010iRX3#..3H197612-198008

46116GUIDE, PARKING BRAKE PLUNGER

main46116-20050iRX3#..3H197612-198008

46117SLEEVE, PARKING BRAKE PLUNGER

main46117-30010iRX3#..RHD..3H197612-198008

main46117-30020iRX3#..LHD..3H197612-198008

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46301-22010iRX3#..3H197612-198008

46301ASPRING, TENSION(FOR INTERMEDIATE LEVER)

main90506-12175iRX3#..3H197612-198008

46301EPIN, W/HOLE(FOR INTERMEDIATE LEVER)

main90240-12147iRX3#..3H197612-198008

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46341-20020iMX3#,RX3#,TX30197612-198003

sub46341-22030

main46341-22030iMX3#,RX3#,TX30198003-198008

46311PAWL, PARKING BRAKE

main46311-20030iRX3#..3H197612-198008

main46311-22020iMX3#,RX3#..3FC,4F,5F197612-197911

46311ASPRING(FOR PARKING BRAKE PAWL)

main90508-08405iRX3#..3H197612-198008

46311BPIN, PARKING BRAKE PAWL PIVOT

main90240-08156iRX3#..3H197612-198008

main90243-06017iMX3#,RX3#..3FC,4F,5F197612-197911

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-22130iRX3#..RHD..3H197612-197911

main46410-22131iRX3#..RHD..3H197911-198008

main46410-22140iRX3#..LHD..3H197612-197911

main46410-22141iRX3#..LHD..3H197911-198008

46410BGROMMET(FOR PARKING BRAKE FRONT CABLE)

main90480-01022iRX3#..3H197612-198008

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-22170iMX32,RX30197612-197902

sub46420-22171

main46420-22171iMX32,RX30,TX30197902-198008

main46420-23110iMX36,RX35197612-197902

sub46420-23111

main46420-23111iMX36,RX35197902-198008

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-10148iRX3#..3H197612-198008

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-22060iMX32,RX30197612-197902

sub46430-22061

main46430-22061iMX32,RX30,TX30197902-198008

main46430-23070iMX36,RX35197612-197902

sub46430-23071

main46430-23071iMX36,RX35197902-198008

46471PULLEY, WIRE

main46471-20020iRX3#..3H197612-198008

46471BPIN, W/HOLE(FOR WIRE PULLEY SET)

main90240-10157iRX3#..3H197612-198008

9017906166

main90179-06166

9017908146

main90179-08146

9021303007

main90213-03007

9046110180

main90461-10180

9046110217

main90461-10217

9046110219

main90461-10219

9046112422

main90461-12422

9046806017

main90468-06017

9046808001

main90468-08001

9165640616

main91656-40616

9165641022

main91656-41022

9368016016

main93680-16016

9412040600

main94120-40600

9418040600

main94180-40600

9538102520

main95381-02520

37 parts on this diagram · 3 diagrams in section
