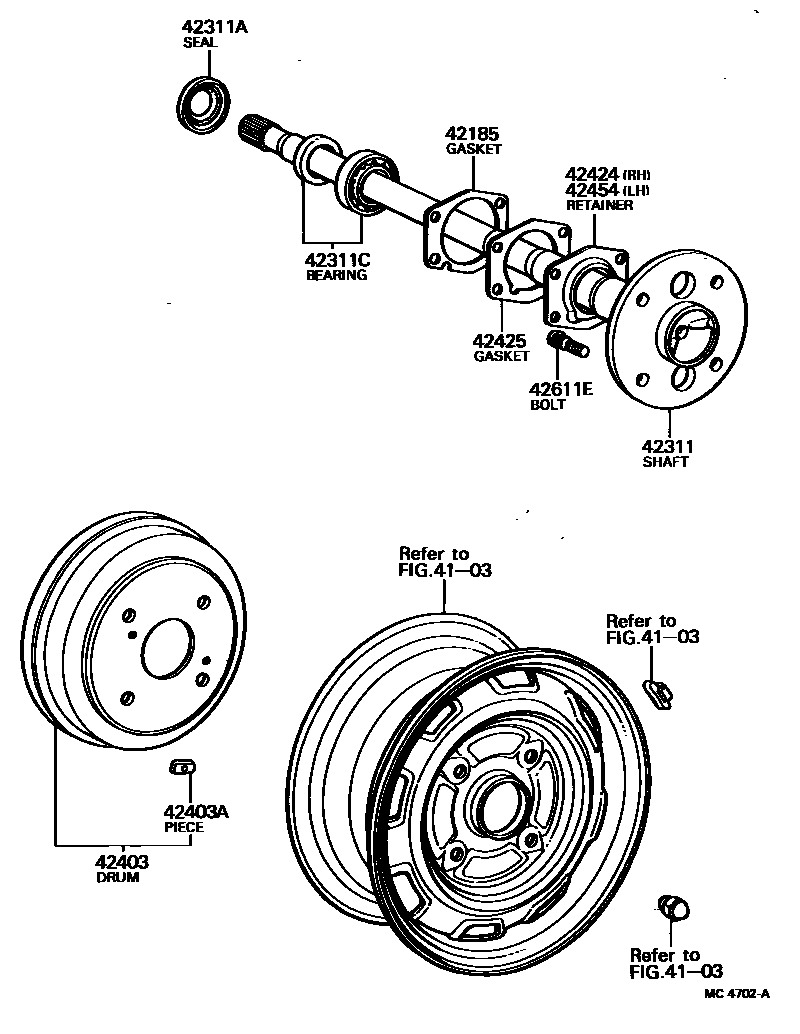

REAR AXLE SHAFT & HUB

4103

42185GASKET, REAR AXLE HOUSING END

main42185-22020iMX3#,RX3#,TX30197612-198008

42311SHAFT, REAR AXLE

main42311-22080iMX32,RX30,TX30197612-198008

main42311-22100iMX36,RX35197612-198008

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-52059iMX3#,RX3#,TX30197612-198008

42311CBEARING(FOR REAR AXLE SHAFT)

main04421-30011iMX3#,RX3#,TX30197612-198008

sub04421-30012

42403DRUM SUB-ASSY, REAR BRAKE

main42431-12060iMX3#,RX3#,TX30197707-198008

sub42431-14061

main42431-22050iMX3#,RX3#197612-197707

sub42431-12060

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01117iMX3#,RX3#,TX30197612-198008

10G,10G.

main90937-01118iMX3#,RX3#,TX30197612-198008

20G,20G.

main90937-01119iMX3#,RX3#,TX30197612-198008

30G,30G.

main90937-01120iMX3#,RX3#197612-197807

40G,40G.

main90937-01121iMX3#,RX3#197612-197807

50G,50G.

main90937-01122iMX3#,RX3#197612-197807

60G,60G.

main90937-01195iMX3#,RX3#,TX30197807-198008

40G,40G.

main90937-01196iMX3#,RX3#,TX30197807-198008

50G,50G.

main90937-01197iMX3#,RX3#,TX30197807-198008

60G,60G.

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42424-21010iMX3#,RX3#,TX30197612-198008

42425GASKET, REAR AXLE BEARING RETAINER

main42425-22020iMX3#,RX3#,TX30197612-198008

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42454-21010iMX3#,RX3#,TX30197612-198008

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02035iMX3#,RX3#,TX30197612-198008

sub90942-02047

11 parts on this diagram · 1 diagram in section
