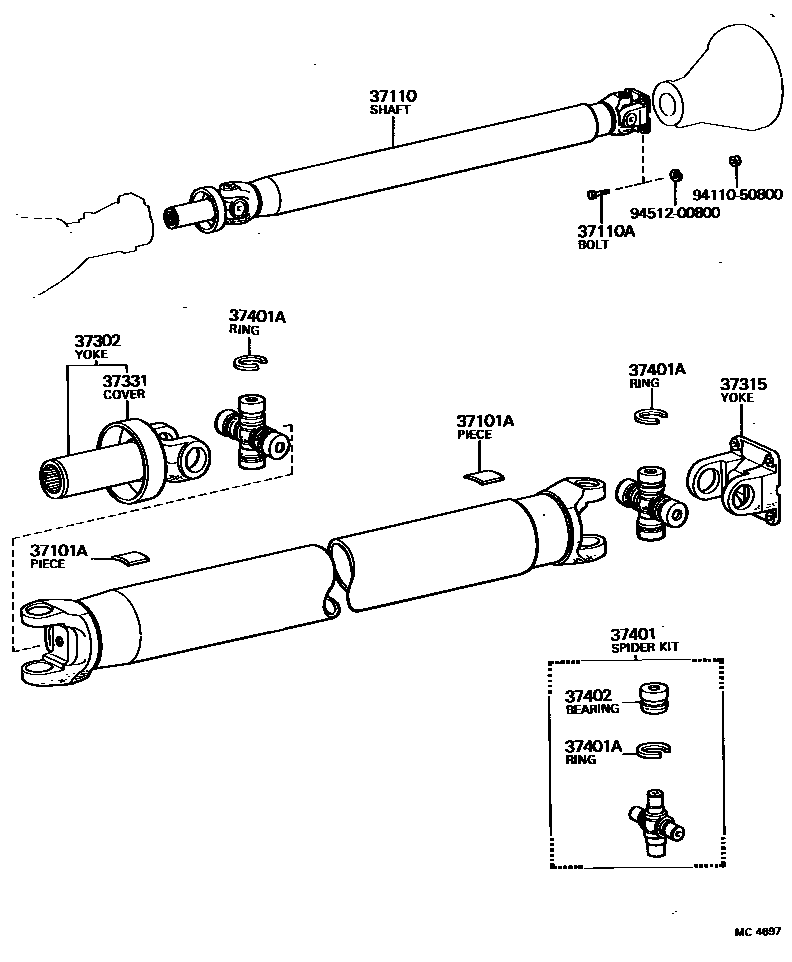

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0002 1

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132iTX30198001-198008

10G,L=20.7,10G.

main90937-01136iTX30198001-198008

20G,L=41.4,20G.

main90937-01140iTX30198001-198008

30G,L=62.2,30G.

main90937-01147iTX30198001-198008

2G,T=2.0,2G.

main90937-01148iTX30198001-198008

4G,T=2.0,4G.

main90937-01149iTX30198001-198008

6G,L=12.4,6G.

main90937-01150iTX30198001-198008

8G,L=16.6,8G.

main90937-01151iTX30198001-198008

12G,L=24.9,12G.

main90937-01152iTX30198001-198008

14G,L=29.0,14G.

main90937-01153iTX30198001-198008

16G,L=33.2,16G.

main90937-01154iTX30198001-198008

18G,L=37.3,18G.

main90937-01155iTX30198001-198008

22G,L=45.6,22G.

main90937-01156iTX30198001-198008

24G,L=49.7,24G.

main90937-01157iTX30198001-198008

26G,L=53.9,26G.

main90937-01158iTX30198001-198008

28G,L=58.1,28G.

37110SHAFT ASSY, PROPELLER

main37110-12230iMX3#,RX3#197808-198008

main37110-20092iMX3#,RX3#197612-197808

main37110-23060iTX30198001-198008

sub37110-23061

37110ABOLT (FOR PROPELLER SHAFT)

main90101-08214iMX3#,RX3#,TX30197612-198008

*8-1.25PX25-12

sub90101-08262

37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE

main37302-20040iTX30198001-198008

37315YOKE, UNIVERSAL JOINT FLANGE

main37315-20020iTX30198001-198008

37331COVER, SLIDING SHAFT DUST

main37331-30010iTX30198001-198008

37401SPIDER KIT, UNIVERSAL JOINT

main04371-22010iMX3#,RX3#,TX30197612-198008

37401ARING, HOLE SNAP (FOR SPIDER BEARING)

main90521-29070iMX3#,RX3#,TX30197612-198008

T=2.375-2.425,T=2.375-2.425

main90521-29071iMX3#,RX3#,TX30197612-198008

T=2.425-2.475,T=2.425-2.475

main90521-29072iMX3#,RX3#,TX30197612-198008

T=2.475-2.525,T=2.475-2.525

main90521-29073iMX3#,RX3#,TX30197612-198008

T=2.525-2.575,T=2.525-2.575

37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER

main37402-22020iMX3#,RX3#,TX30197612-198008

OVER SIZE

9411050800

main94110-50800

9451200800

main94512-00800

11 parts on this diagram · 2 diagrams in section
