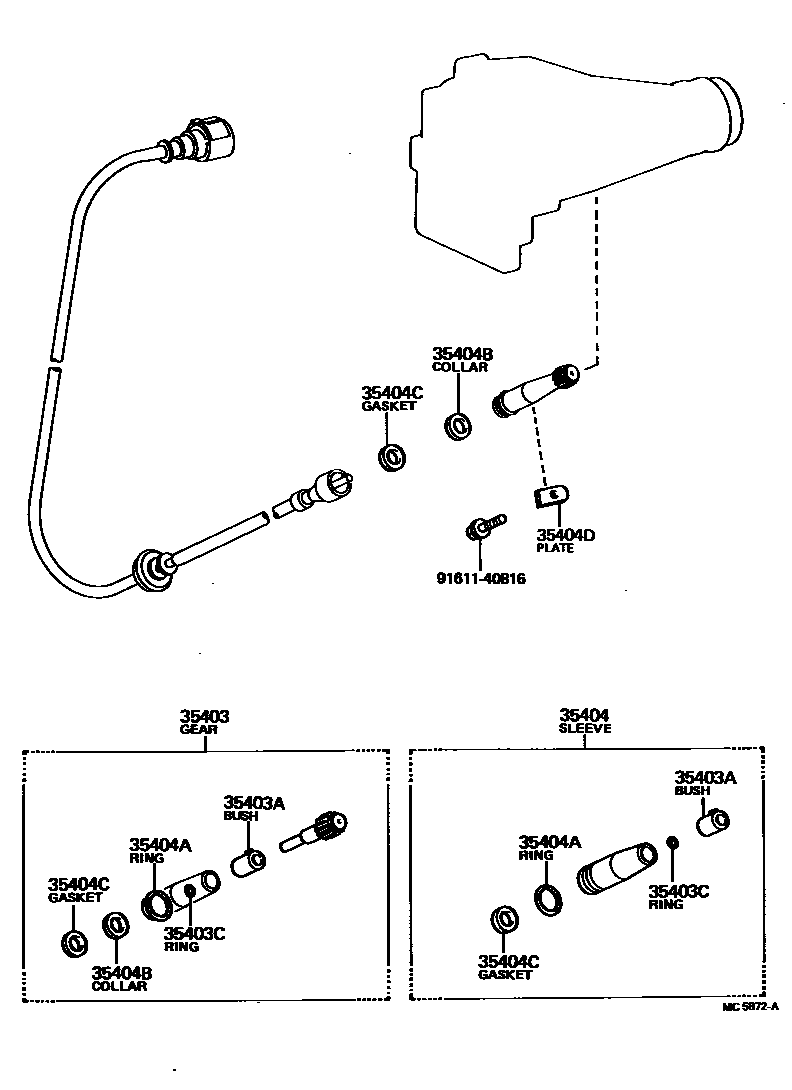

SPEEDOMETER DRIVEN GEAR (ATM)

35403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-69026iMX3#,RX3#..3FC197612-198008

N=19

main33403-69065iRX3#..3FC197908-198008

N=18

35403ABUSH (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90386-09078iMX3#,RX3#,TX30..3FC197612-198008

35403CRING, O (FOR AUTOMATIC TRANSMISSION SPEEDOMETER SHAFT)

main90301-09017iMX3#,RX3#,TX30..3FC197612-198008

35404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-39016iMX3#,RX3#,TX30..3FC197612-198008

35404ARING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iMX3#,RX3#,TX30..3FC197612-198008

35404BCOLLAR, SPEEDOMETER FLEXIBLE TUBE SHAFT GASKET (ATM)

main90201-07069iMX3#,RX3#,TX30..3FC197612-198008

35404CGASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (ATM)

main90303-06017iMX3#,RX3#,TX30..3FC197612-198008

35404DPLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30010iMX3#,RX3#,TX30..3FC197612-198008

9161140816

main91611-40816

9 parts on this diagram · 1 diagram in section
