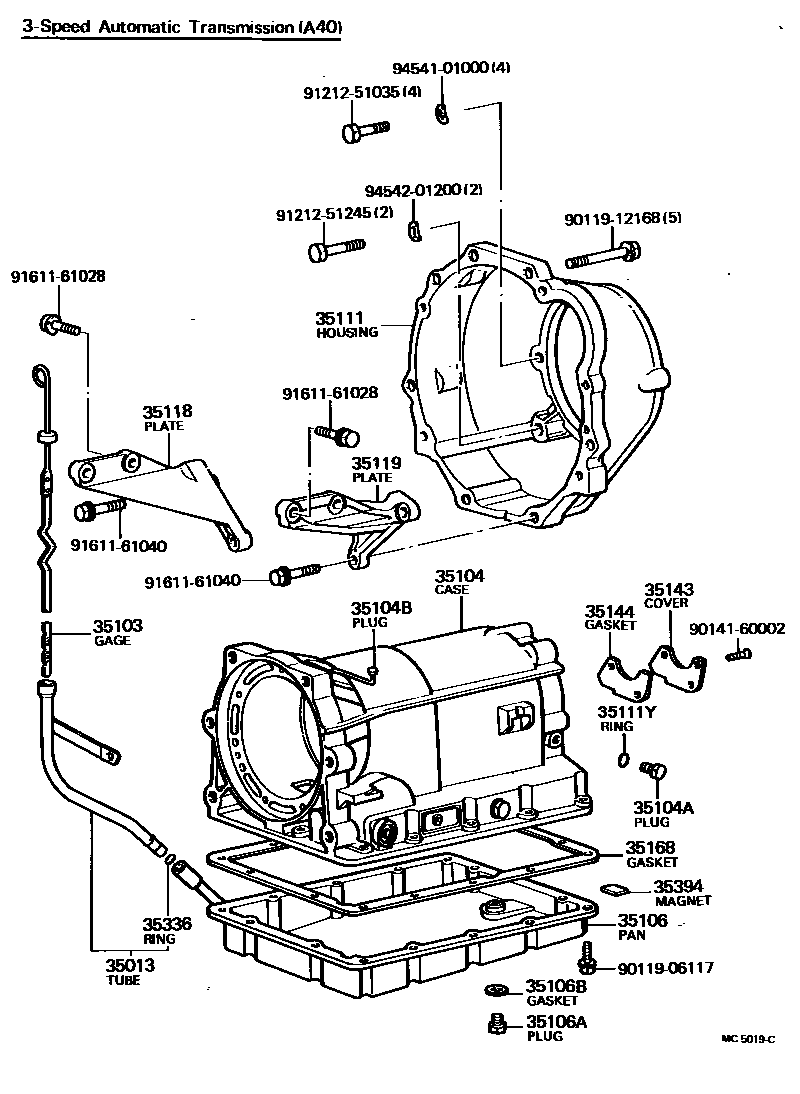

TRANSMISSION CASE & OIL PAN (ATM)

0001 1 0002 1 0003 1

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-14091iRX3#..3FC197612-198008

main35013-20040iTX30..3FC198001-198008

main35013-22090iMX3#..3FC197612-197710

sub35013-22091

main35013-22091iMX3#..3FC197710-198002

main35013-22092iMX3#..3FC198002-198008

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-14022iRX3#..3FC197612-198008

sub35103-14023

main35103-20040iTX30..3FC198001-198008

main35103-22040iMX3#..3FC197612-198008

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-22022iMX3#,RX3#..3FC197612-197809

sub35104-22023

main35104-22023iMX3#,RX3#,TX30..3FC197809-198008

sub35104-22024

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08079iMX3#,RX3#,TX30..3FC197612-198008

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03061iMX3#,RX3#,TX30..3FC197612-198008

sub90930-03069

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-22020iMX3#,RX3#,TX30..3FC197612-198008

sub35106-22021

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10003iMX3#,RX3#,TX30..3FC197811-198008

sub90341-10011

main90341-10078iMX3#,RX3#..MTM197612-197811

sub90341-10003

sub35178-30010

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iMX3#,RX3#,TX30..3FC197811-198008

main90202-10110iMX3#,RX3#..MTM197612-197811

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-12020iTX30..3FC198001-198008

sub35111-14050

main35111-22030iRX3#..3FC197612-197809

sub35111-22031

main35111-22031iRX3#..3FC197809-198008

main35111-22040iMX3#..3FC197612-198002

main35111-22041iMX3#..3FC198002-198008

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196iMX3#,RX3#,TX30..3FC197612-198008

35118PLATE, STIFENER, RH (ATM)

main33118-14010iTX30..3FC198001-198008

main33118-22030iRX3#..3FC197612-198008

main33118-22040iMX3#..3FC197612-198008

35119PLATE, STIFENER, LH (ATM)

main33119-14040iTX30..3FC198001-198008

main33119-22020iRX3#..3FC197612-197809

sub33119-22021

main33119-22021iRX3#..3FC197809-198008

sub33119-22022

main33119-22030iMX3#..3FC197612-198008

35143COVER, TRANSMISSION CASE, REAR

main35143-22010iMX3#,RX3#,TX30..3FC197612-198008

35144GASKET, TRANSMISSION CASE REAR COVER

main35144-22010iMX3#,RX3#,TX30..3FC197612-198008

sub35144-28010

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22010iMX3#,RX3#,TX30..3FC197612-198005

sub35168-22011

main35168-22011iMX3#,RX3#,TX30..3FC198005-198008

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iMX3#,RX3#,TX30..3FC197612-198008

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iMX3#,RX3#,TX30..3FC197612-198008

9011906117

main90119-06117

9011912168

main90119-12168

9014160002

main90141-60002

9121251035

main91212-51035

9121251245

main91212-51245

9161161028

main91611-61028

9161161040

main91611-61040

9454101000

main94541-01000

9454201200

main94542-01200

26 parts on this diagram · 3 diagrams in section
