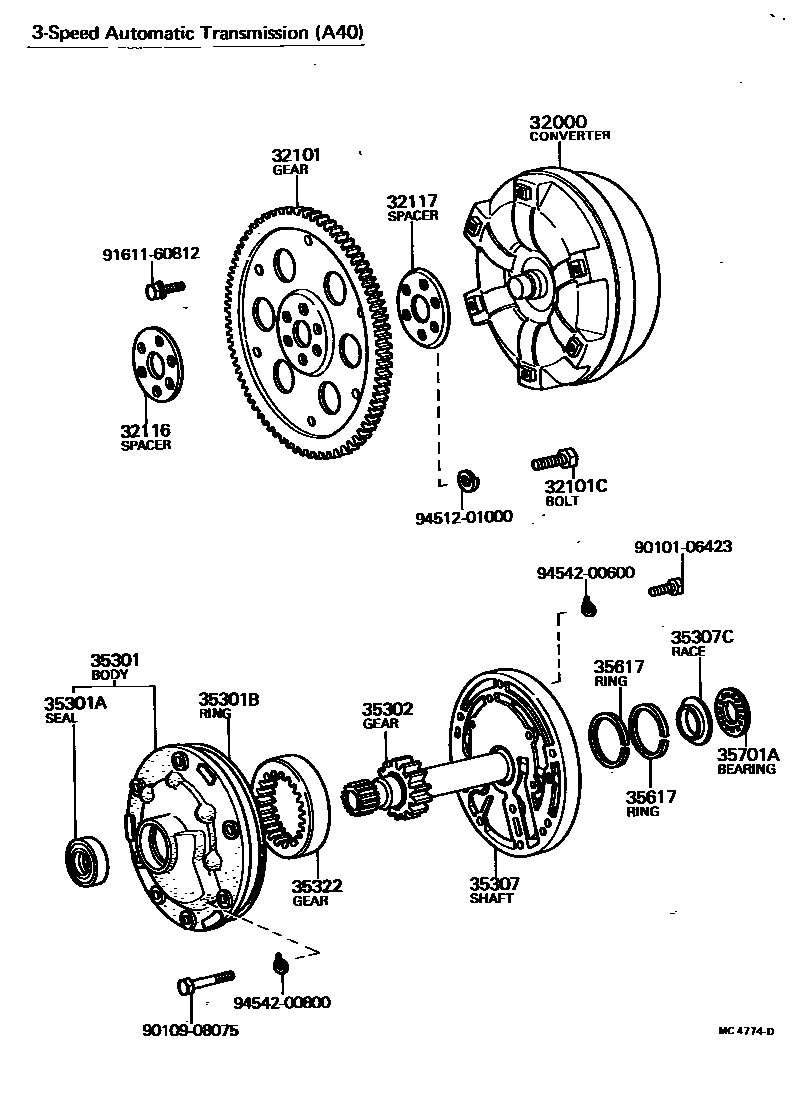

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
35301BODY SUB-ASSY, FRONT OIL PUMP
35301ASEAL, OIL (FOR FRONT OIL PUMP)
sub90311-38020
35301BRING, O (FOR FRONT OIL PUMP BODY)
35302GEAR SUB-ASSY, FRONT OIL PUMP DRIVE
sub35321-22090
35307SHAFT SUB-ASSY, STATOR
sub35370-22010
35307CRACE, THRUST BEARING (FOR STATOR SHAFT)
T=4.3
35322GEAR, FRONT OIL PUMP DRIVEN
35617RING, CLUTCH DRUM OIL SEAL
35701ABEARING, THRUST (FOR INPUT SHAFT FRONT)
9010106423
main90101-06423
9010988075
main90109-88075
9161160812
main91611-60812
9451201000
main94512-01000
9454200600
main94542-00600
9454200800
main94542-00800
20 parts on this diagram · 1 diagram in section
