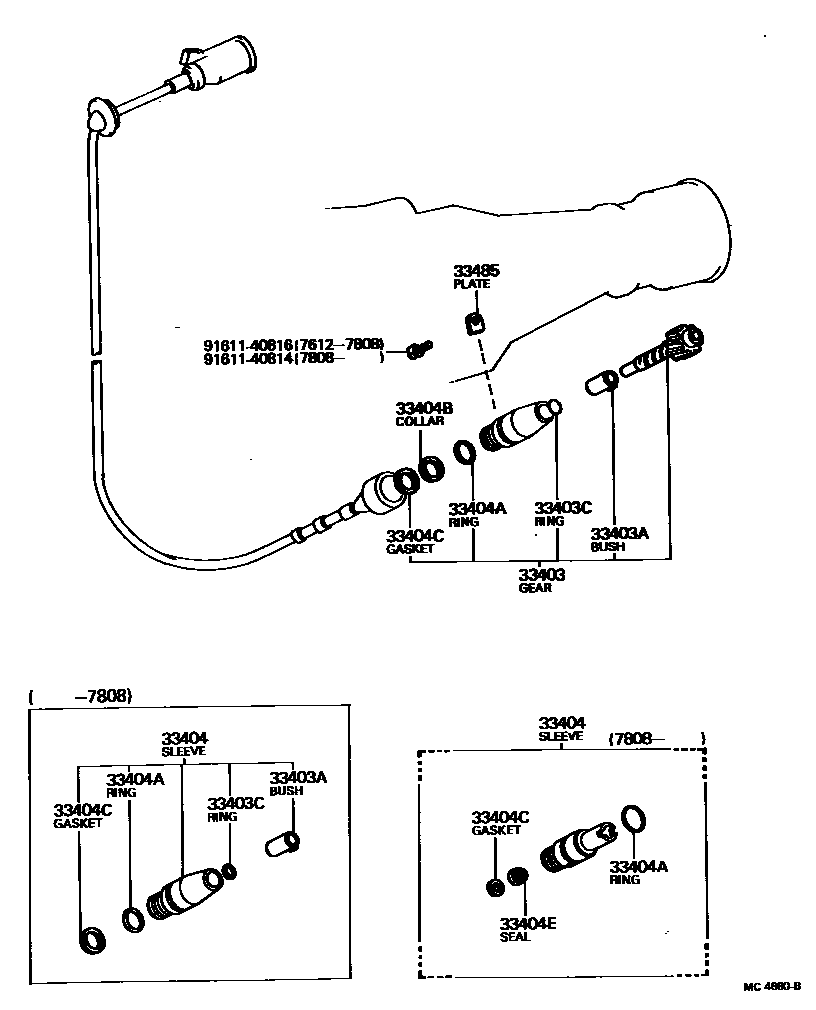

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-69026iRX35..4F,5F;RX35..3H..GEN;MX3#,RX30..MTM197612-198008

N=19

main33403-69065iRX3#..MTM..(DLX,STD)..EUG197704-198008

N=18,MARK 18:6,N=18

33403ABUSH (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT SLEEVE)

main90386-09078iMX3#,RX3#..MTM197612-197808

33403CRING, O (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT)

main90301-09010iMX3#,RX3#..MTM197612-197808

sub90301-09017

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-30040iMX3#,RX3#,TX30..MTM197808-198008

main33404-39016iMX3#,RX3#..MTM197612-197808

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iMX3#,RX3#,TX30..MTM197612-198008

33404BCOLLAR, SPEEDOMETER FLEXIBLE TUBE SHAFT GASKET (MTM)

main90201-07069iMX3#,RX3#..MTM197612-197808

33404CGASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (MTM)

main90303-06017iMX3#,RX3#..MTM197612-197808

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iMX3#,RX3#,TX30..MTM197808-198008

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30010iMX3#,RX3#..MTM197612-197808

main33485-30020iMX3#,RX3#,TX30..MTM197808-198008

9161140814

main91611-40814

9161140816

main91611-40816

11 parts on this diagram · 1 diagram in section
