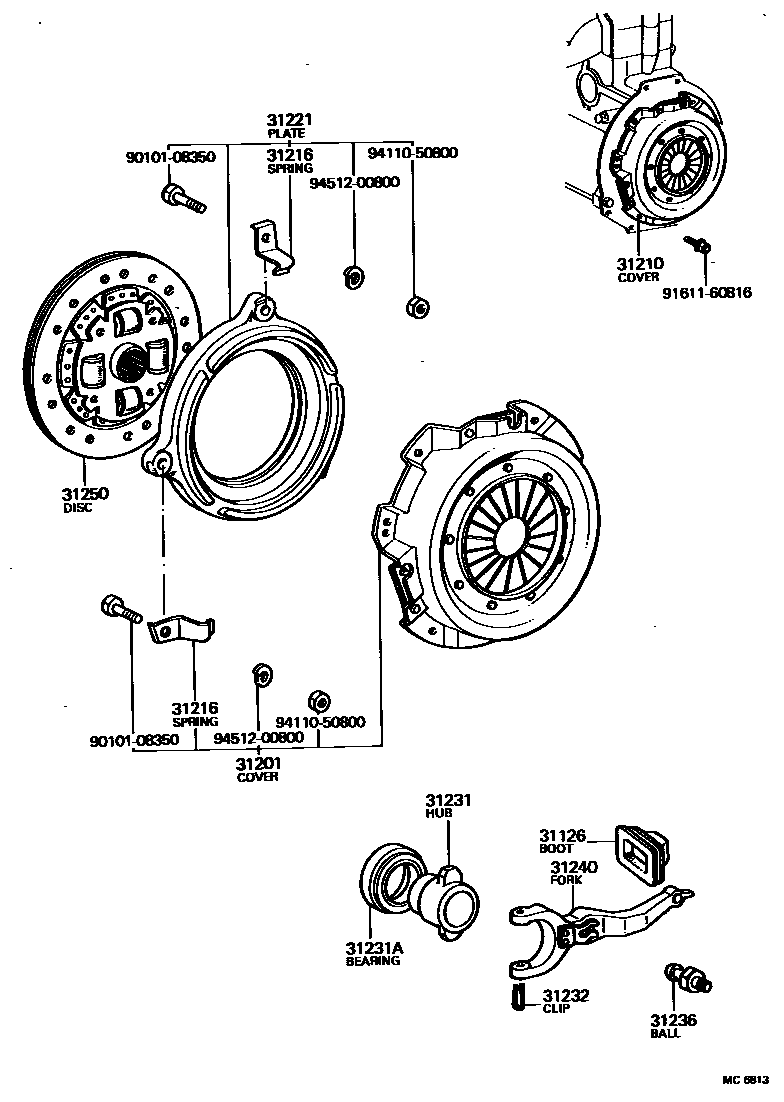

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20040iTX30..4F198001-198008

main31126-20050iRX3#..MTM197612-197808

main31126-20060iRX3#..MTM197808-198008

main31126-22040iMX3#..4F197612-198008

31201COVER SUB-ASSY, CLUTCH

main31201-19048iTX30..4F198001-198008

sub31201-19075

main31201-39045iMX3#,RX3#..MTM197612-197907

sub31201-39046

main31201-39046iMX3#,RX3#..MTM197907-198003

sub31201-39047

main31201-39047iMX3#,RX3#..MTM198003-198008

31210COVER ASSY, CLUTCH

main31210-23011iTX30..4F198001-198008

sub31210-23012

main31210-30140iMX3#,RX3#..MTM197612-197907

sub31210-30141

main31210-30141iMX3#,RX3#..MTM197907-198003

sub31210-30142

main31210-30142iMX3#,RX3#..MTM198003-198008

sub31210-20171

31216SPRING, CLUTCH RETRACTING

main31216-20020iTX30..4F198001-198008

main31216-30010iMX3#,RX3#..MTM197612-198008

31221PLATE, CLUTCH PRESSURE

main31221-19025iTX30..4F198001-198008

main31221-39025iMX3#,RX3#..MTM197612-198008

31231HUB, CLUTCH RELEASE BEARING

main31231-20070iRX3#..MTM197808-197903

sub31231-20071

main31231-20071iRX3#..MTM197903-198008

main31231-22020iMX3#..4F197612-197903

sub31231-22021

main31231-22021iMX3#..4F197903-198007

sub31231-22022

main31231-22022iMX3#..4F198007-198008

sub31231-22023

main31231-22030iRX3#..MTM197612-197808

sub31231-22031

main31231-27020iTX30..4F198007-198008

main31231-30071iTX30..4F198001-198007

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40001iMX3#,RX3#,TX30..MTM197612-198002

sub90363-40008

main90363-40008iMX3#,RX3#,TX30..MTM198002-198008

main90363-40015iMX3#,RX3#,TX30..4F,5F198007-198008

sub90363-40022

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-20010iTX30..4F198007-198008

main31232-22010iMX3#..4F197612-198008

main31232-30010iTX30..4F198001-198007

31236BALL, RELEASE FORK

main31236-20020iMX3#,RX3#,TX30..MTM197612-198008

sub31236-30060

31240FORK ASSY, CLUTCH RELEASE

main31204-20020iRX3#..MTM197612-197808

sub31204-26010

main31204-20040iTX30..3FC198001-198008

main31204-20050iRX3#..MTM197808-198008

main31204-22030iMX3#..4F197612-198008

31250DISC ASSY, CLUTCH

main31250-14070iRX35..4F..SDN197707-197901

sub31250-14071

main31250-14071iRX35..4F..SDN197901-197908

sub31250-14072

main31250-20024iTX30..4F198001-198007

sub31250-22090

main31250-22042iMX3#..4F197612-197705

sub31250-22043

main31250-22043iMX3#..4F197705-197909

sub31250-22044

main31250-22044iMX3#..4F197909-198008

sub31250-22080

main31250-22070iRX3#..MTM197612-197705

sub31250-22071

main31250-22071iRX30..MTM;RX35..STD;RX35..RHD..4F..DLX;RX35..LHD..4F..DLX..GEN;RX35..LHD..MTM..DLX..EUG197705-197909

sub31250-22072

main31250-22072iRX3#..MTM197909-198008

sub31250-22073

main31250-22090iTX30..4F198007-198008

sub31250-22091

9010108350

main90101-08350

9161160816

main91611-60816

9411050800

main94110-50800

9451200800

main94512-00800

15 parts on this diagram · 3 diagrams in section
