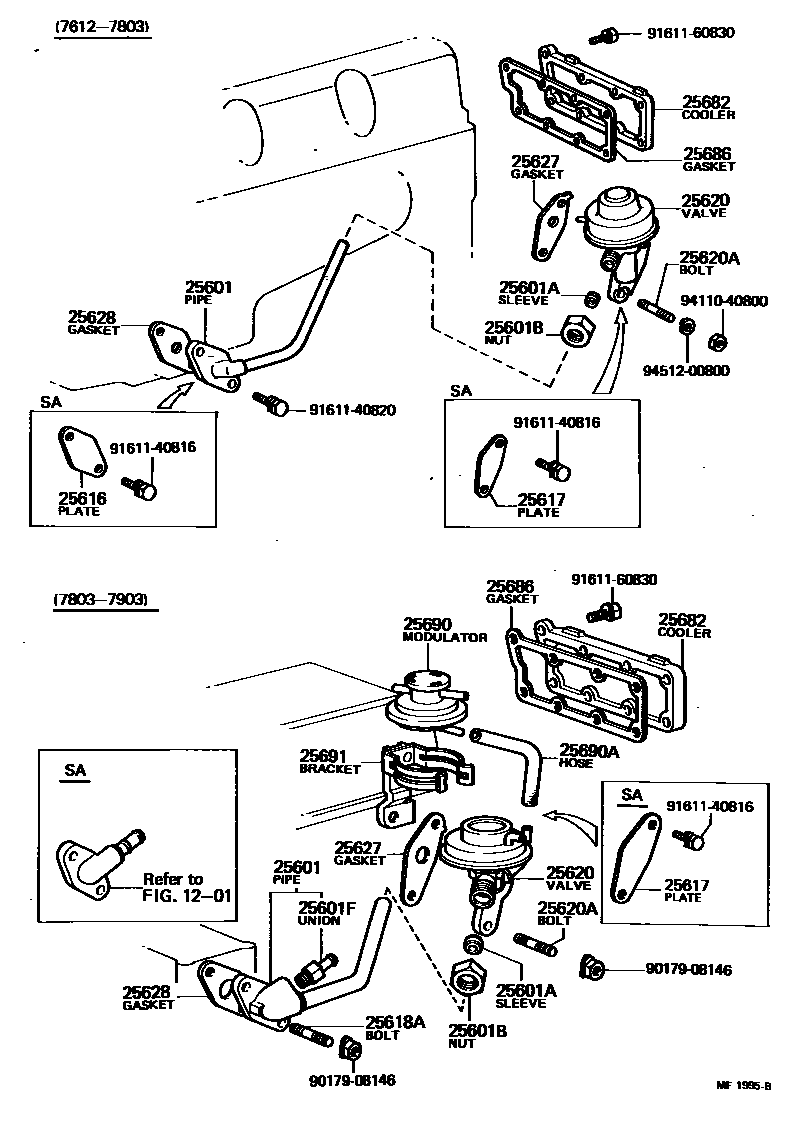

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1

1201

25601PIPE SUB-ASSY, EGR, NO.1

main25601-34040i18RC..RX3#197707-198008

sub25601-34041

main25601-41010i4M..MX3#..ARL197612-197803

main25601-41020i4M..MX3#..ARL197803-197903

main25601-41030i4M..MX3#..ARL197903-198008

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-14001i4M..MX3#..ARL197701-198008

sub90410-14003

main90410-14040i4M..MX3#197612-197701

main90410-18038i18RC..RX3#197707-198008

25601BNUT, UNION, EGR PIPE, NO.1

main90402-22076i4M..MX3#..ARL197612-198008

main90402-26074i18RC..RX3#197707-198008

sub90402-26002

25601FUNION(FOR EGR PIPE, NO.1)

main90404-26284i18RC..RX3#197707-198008

main90404-52004i4M..MX3#..ARL197803-197903

25616PLATE, HOLE COVER(FOR EGR PIPE)

main11494-45010i4M..MX32..SA197707-198001

25617PLATE, EGR HOLE COVER

main25617-45010i4M..MX32..SA197707-198001

25618ABOLT, STUD(FOR EGR INLET)

main90116-08025i4M..MX3#197803-198008

25620VALVE ASSY, EGR

main25620-34130i18RC..RX3#..4F197710-197908

main25620-34140i18RC..RX3#..4F197707-197710

main25620-34150i18RC..RX3#..3FC197707-198008

main25620-34170i18RC..RX30..4F197908-198008

main25620-41080i4M..MX3#..3FC..ARL197803-198008

main25620-45070i4M..MX3#..4F197612-197803

main25620-45080i4M..MX3#..3FC..ARL197612-197803

main25620-45110i4M..MX3#..4F197803-198008

25620ABOLT, STUD(FOR EGR VALVE)

main90116-08025i4M..MX3#..ARL197612-198008

25627GASKET, EGR VALVE

main25627-45011i4M..MX3#197612-198008

sub25627-43130

25628GASKET, EGR INLET

main25628-45010i4M..MX3#197612-197810

sub25628-45011

main25628-45011i4M..MX3#197810-198008

sub25628-43020

25682COOLER, EGR, NO.2

main25682-45020i4M..MX3#197612-198008

25686GASKET, EGR COOLER, NO.2

main25686-45010i4M..MX3#197612-198008

sub25686-43010

25690MODULATOR ASSY, EGR VACUUM

main25690-41010i4M..MX3#..4F197803-198008

main25690-41020i4M..MX3#..3FC..ARL197803-198008

25690AHOSE(FOR EGR VACUUM MODULATOR)

main90445-11017i4M..MX3#..ARL197803-198008

25691BRACKET, EGR VACUUM MODULATOR

main25691-41010i4M..MX3#..ARL197803-197901

main25691-41030i4M..MX3#..ARL197901-198008

9017908146

main90179-08146

9161140816

main91611-40816

9161140820

main91611-40820

9161160830

main91611-60830

9411040800

main94110-40800

9451200800

main94512-00800

23 parts on this diagram · 3 diagrams in section
