FUEL PUMP & PIPE

0001 1 0002 1 0004 1 0006 1

1105

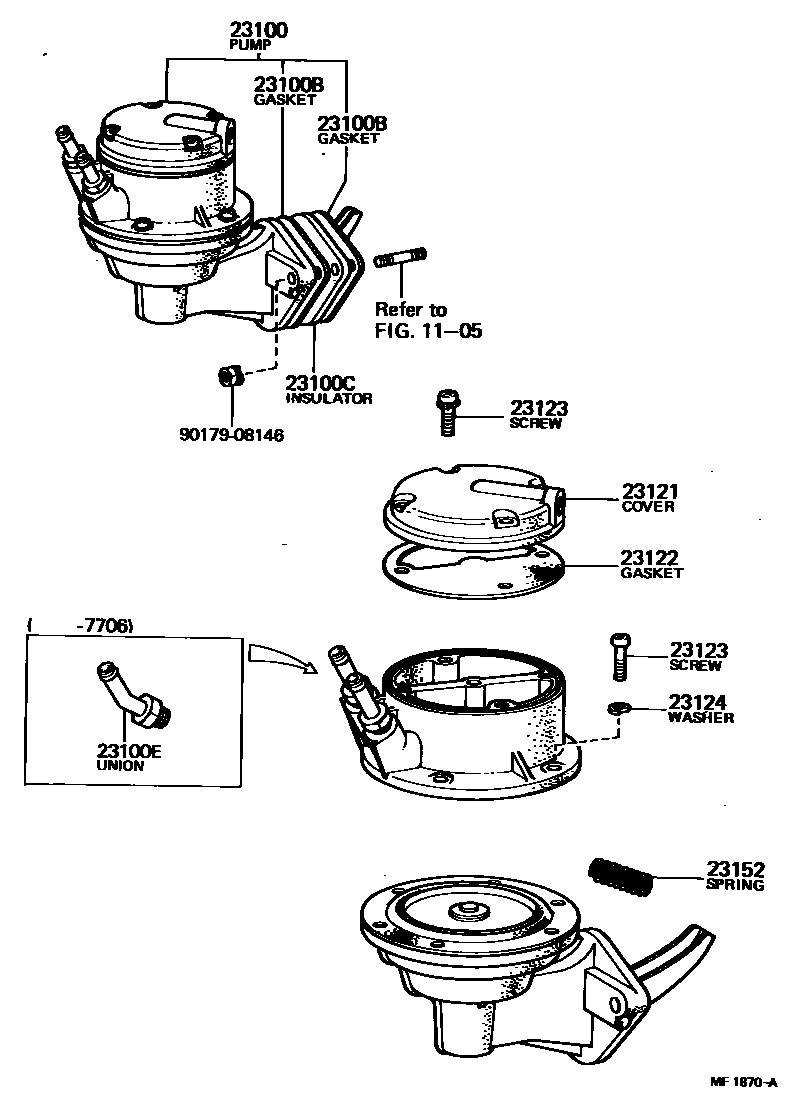

23100PUMP ASSY, FUEL

main23100-19115i3T..TX30..3FC198001-198008

sub23100-19116

main23100-29305i3T..TX30..4F198001-198008

sub23100-29306

main23100-39117i18R#..RX3#..EUR,GEN197612-197908

sub23100-39118

main23100-39295i18R..RX3#..SA197907-198008

sub23100-39296

main23100-49166i4M..MX3#197612-197706

sub23100-49167

main23100-49167i4M..MX32..SA197706-198001

sub23100-49168

main23100-49225i4M..MX3#..ARL197908-198008

sub23100-49226

23100BGASKET, FUEL PUMP

main90923-05004i4M..MX3#197612-198008

sub90923-05020

main90923-05005i18R#..RX3#197612-198008

sub90923-05019

23100CINSULATOR, FUEL PUMP

main90923-06001i18R#..RX3#197612-198008

sub90923-06009

main90923-06002i4M..MX3#197612-198008

sub90923-06011

23100EUNION, NIPPLE(FOR FUEL INLET)

main23119-42020i4M..MX3#197612-197706

main23119-45020i18R#..RX3#197612-197908

23121COVER, FUEL PUMP

main23121-34050i18R#..RX3#197612-197908

main23121-45030i4M..MX3#197612-198008

23122GASKET, FUEL PUMP COVER

main23122-34050i18R#..RX3#197612-197908

main23122-42020i4M..MX3#197612-198008

23123SCREW, COVER SET, NO.1

main21821-31140i4M..MX3#197612-198008

COVER SET

main93219-15014i18R#..RX3#..EUR,GEN197612-197908

main93219-15016i4M..MX3#197612-198008

BODY SET

23124WASHER, COVER SET, NO.2

main94511-00500i4M..MX3#197612-198008

23152SPRING, ROCKER ARM

main23152-42012i18R#..RX3#197612-197908

main23152-45030i4M..MX3#197612-198008

9017908146

main90179-08146

11 parts on this diagram · 4 diagrams in section
